Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Hastelloy C22

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Hastelloy C22 Tubing packed in wooden case
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Ni Cr Mo Elongation: 30 %
Brinell Hardness HB: ≤220 Density: 8.89 G/cm3
Tensile Strength Rm N/mm²: 760MPA Yieldstrength R P0. 2 N/mm²: 345MPA
Electrical Resistivity(24℃)): 1.30 Microhm-m Thermal Conductivity(32℃): 9.4 W/m-K
Product Name: Hastelloy C-22 C22 Hastelloy C22 Hastelloy C-22 N06022 Special Alloy C22 Seamless Tubing
High Light:

N06022 Hastelloy Metal

,

ASTM B622 Hastelloy Alloy

,

ASME SB622 Hastelloy Metal

Product Description

ASME SB622 Hastelloy Metal 0


ASME SB622 Hastelloy Metal 1


  • Nickel Based corrosion resistance Alloy

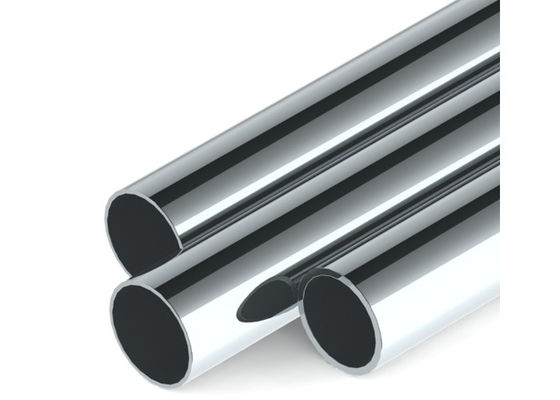

Hastelloy C22 Tubing UNS N1022,carries goes through a rigid inspection process meeting ASTM B626 and ASTM B622, ASME SB622, and SB626. It is recognized by ASME BPE and is acceptable for pharmaceutical applications. UNS N06022 is widely accepted in the pharmaceutical, biotechnology, personal and home care, food, beverage, and diary processes. It was the first wrought, nickel-chromium-molybdenum material to alleviate concerns over welding (by virtue of extremely low carbon and silicon contents). As such, it was widely accepted in the chemical process and associated industries, and now has a more than 50-year-old track record of proven performance in a vast number of corrosive chemicals.

Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides. Furthermore, it is very resistant to sulfide stress cracking and stress corrosion cracking in sour, oilfield environments








  • Chemical Properties of Hastelloy C22 Tubing

Hastelloy Alloy Ni Cr Co Mo FE W Mn C V P S Si
C22 Balance 20-22.5 2.5 Max 12.5-14.5 2.0-6.0 2.5-3.5 0.5Max 0.015 Max 0.35 Max 0.04 Max 0.03 Max 0.08 Max








  • Application


Some typical applications are:

  • Strong oxidizers (such as ferric and cupric chlorides)
  • Hot contaminated media (organic and inorganic)
  • Chlorine
  • Formic and acetic acids
  • Acetic anhydride
  • Seawater and brine solutions






  • Type we could offer
ASTM Alloy Type UNS Misc./Shape
ASTM B574
Bar
Hastelloy C22 Nickel N10276 Bar ASME SB622 Hastelloy Metal 2
ASTM B575
Plate
Hastelloy C22 Nickel N10276 Plate ASME SB622 Hastelloy Metal 3
ASTM B575
Strip
Hastelloy C22 Nickel N10276 Strip ASME SB622 Hastelloy Metal 4
ASTM B575
Sheet
Hastelloy C22 Nickel N10276 Sheet ASME SB622 Hastelloy Metal 5
ASTM B619
Welded Pipe
Hastelloy C22 Nickel N10276 Welded Pipe ASME SB622 Hastelloy Metal 6
ASTM B622
Seamless Tubing
Hastelloy C22 Nickel N10276 Seamless Tubing ASME SB622 Hastelloy Metal 7 ASME SB622 Hastelloy Metal 8
ASTM B366
Fittings
Hastelloy C22 Nickel N10276 Fittings ASME SB622 Hastelloy Metal 9
ASTM B574
Wire
Hastelloy C22 Nickel N10276 Wire
