ASME SB622 Hastelloy Alloy Bar

Place of Origin China
Brand Name DLX
Model Number Hastelloy C22
Minimum Order Quantity 5
Packaging Details Hastelloy C22 Tubing packed in wooden case
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Ni Cr Mo Elongation 30 %
Brinell Hardness HB ≤220 Density 8.89 G/cm3
Tensile Strength Rm N/mm² 760MPA Yieldstrength R P0. 2 N/mm² 345MPA
Electrical Resistivity(24℃)) 1.30 Microhm-m Thermal Conductivity(32℃) 9.4 W/m-K
Product Name Hastelloy C-22 C22 Hastelloy C22 Hastelloy C-22 N06022 Special Alloy C22 Seamless Tubing

N06022 Hastelloy Metal


ASTM B622 Hastelloy Alloy


ASME SB622 Hastelloy Metal

Leave a Message
Product Description

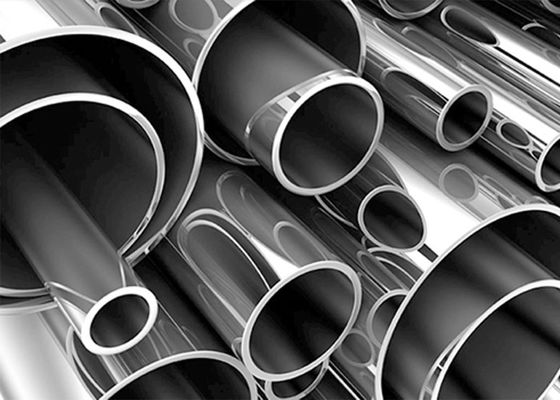

ASME SB622 Hastelloy Alloy Bar 0

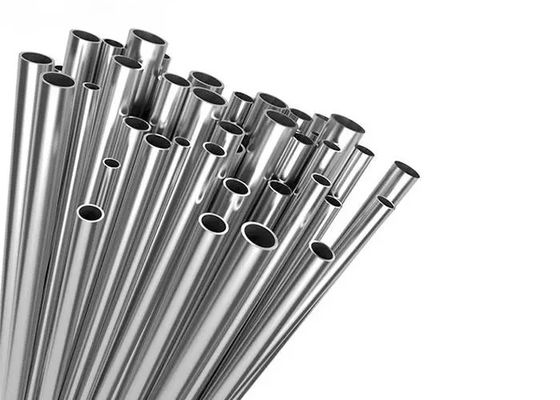

ASME SB622 Hastelloy Alloy Bar 1

  • Nickel Based corrosion resistance Alloy

Hastelloy C22 Tubing UNS N1022,carries goes through a rigid inspection process meeting ASTM B626 and ASTM B622, ASME SB622, and SB626. It is recognized by ASME BPE and is acceptable for pharmaceutical applications. UNS N06022 is widely accepted in the pharmaceutical, biotechnology, personal and home care, food, beverage, and diary processes. It was the first wrought, nickel-chromium-molybdenum material to alleviate concerns over welding (by virtue of extremely low carbon and silicon contents). As such, it was widely accepted in the chemical process and associated industries, and now has a more than 50-year-old track record of proven performance in a vast number of corrosive chemicals.

Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides. Furthermore, it is very resistant to sulfide stress cracking and stress corrosion cracking in sour, oilfield environments




  • Chemical Properties of Hastelloy C22 Tubing

Hastelloy Alloy Ni Cr Co Mo FE W Mn C V P S Si
C22 Balance 20-22.5 2.5 Max 12.5-14.5 2.0-6.0 2.5-3.5 0.5Max 0.015 Max 0.35 Max 0.04 Max 0.03 Max 0.08 Max




  • Application

Some typical applications are:

  • Strong oxidizers (such as ferric and cupric chlorides)
  • Hot contaminated media (organic and inorganic)
  • Chlorine
  • Formic and acetic acids
  • Acetic anhydride
  • Seawater and brine solutions



  • Type we could offer
ASTM Alloy Type UNS Misc./Shape

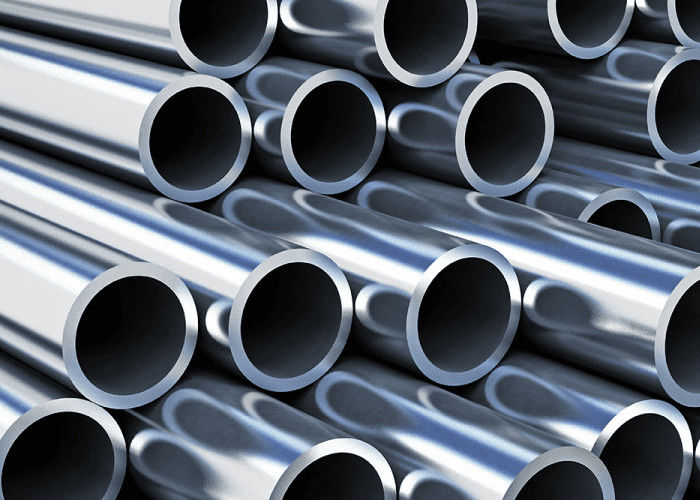

Hastelloy C22 Nickel N10276 Bar ASME SB622 Hastelloy Alloy Bar 2

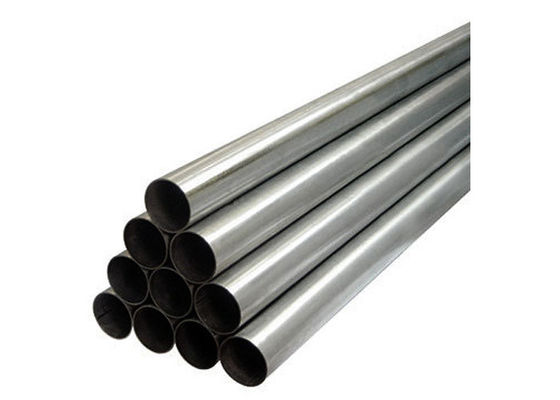

Hastelloy C22 Nickel N10276 Plate ASME SB622 Hastelloy Alloy Bar 3

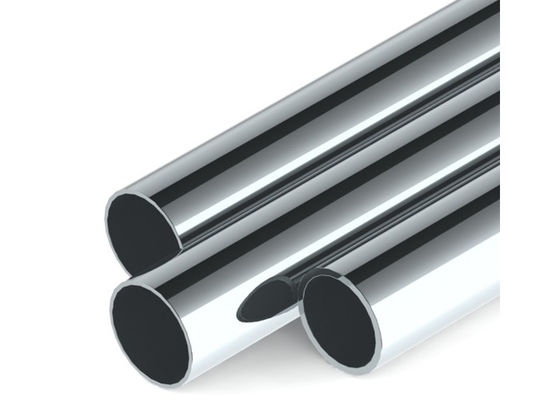

Hastelloy C22 Nickel N10276 Strip ASME SB622 Hastelloy Alloy Bar 4

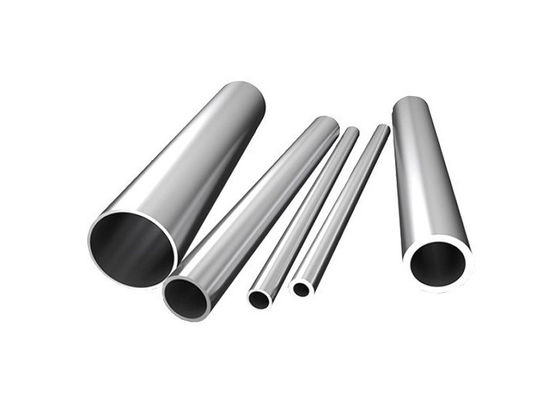

Hastelloy C22 Nickel N10276 Sheet ASME SB622 Hastelloy Alloy Bar 5
Welded Pipe

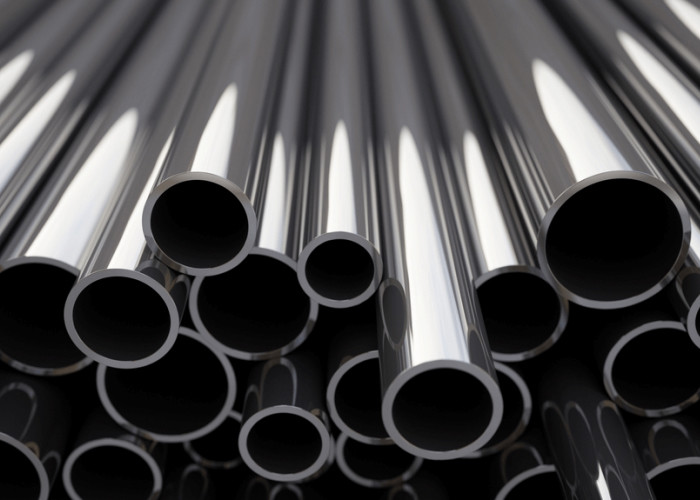

Hastelloy C22 Nickel N10276 Welded Pipe ASME SB622 Hastelloy Alloy Bar 6
Seamless Tubing

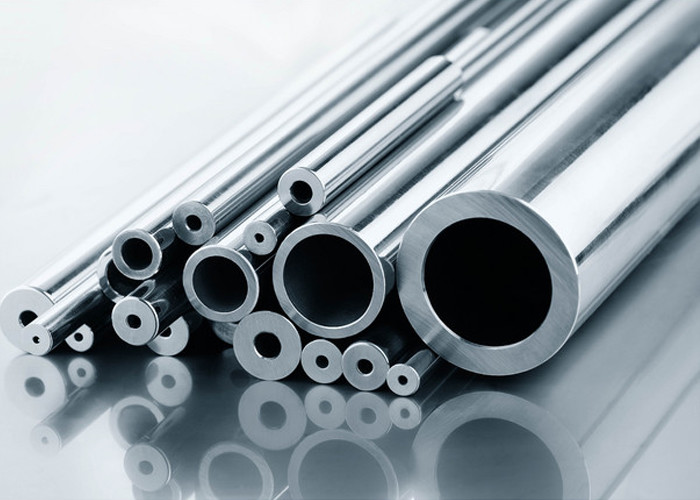

Hastelloy C22 Nickel N10276 Seamless Tubing ASME SB622 Hastelloy Alloy Bar 7 ASME SB622 Hastelloy Alloy Bar 8
Hastelloy C22 Nickel N10276 Fittings ASME SB622 Hastelloy Alloy Bar 9
Hastelloy C22 Nickel N10276 Wire
