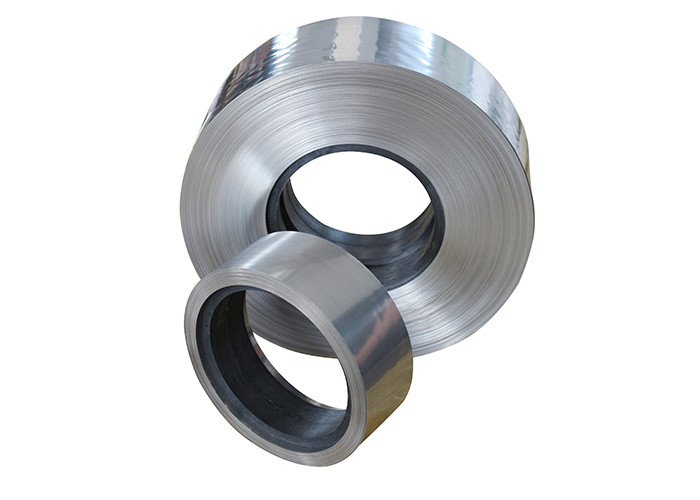

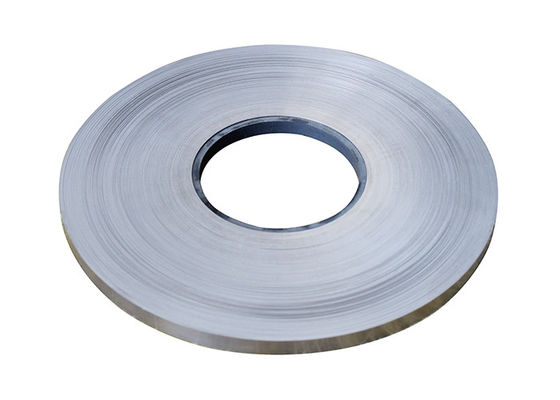

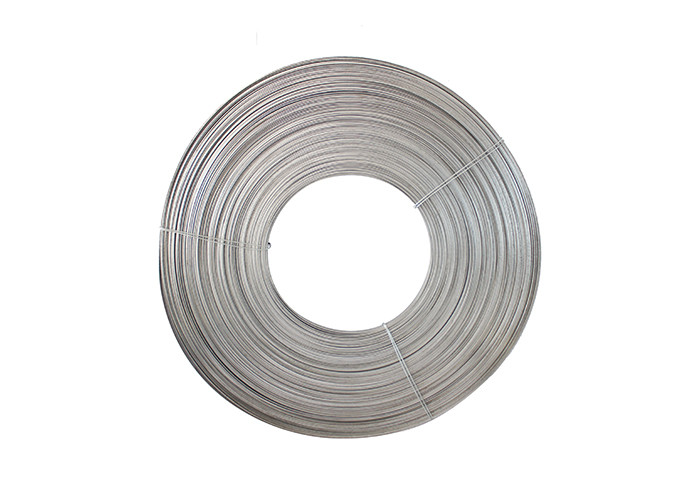

Furnace Trays N06600 AMS 5540 Strip Inconel Alloy

INCONEL (nickel-chromium-iron) alloy 600 (UNS N06600/W.Nr. 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability. The limiting chemical composition of INCONEL alloy 600 is shown in Table 1. The high nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking. Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The alloy is not precipitation hardenable; it is hardened and strengthened only by cold work. The versatility of INCONEL alloy 600 has led to its use in a variety of applications involving temperatures from cryogenic to above 2000°F (1095°C).

• Chemical Properties of Inconel 600

• Application

Some typical applications are:

1. Barge and tank truck liners
2. Carburizing atmospheres
3. Ethylene dichloride crackers
4. Furnace trays, mufflers, hangers
5. Gasoline stabilizer production
6. MgCl2 evaporates
7. Phenol condensers
8. Soap manufacture
9. Titanium dioxide
10. Vegetable and fatty acid vessels

• ,Type we could offer

  AMS Number	Alloy	Cross Ref. Spec	Misc./Shape
  AMS 5540	Inconel 600
  AMS 5540 Plate	Inconel 600	-	Plate
  AMS 5540 Sheet	Inconel 600	-	Sheet
  AMS 5540 Strip	Inconel 600	-	Strip
  AMS 5580 Custom Tube	Inconel 600	-	Custom Tube
  AMS 5580 Tubing	Inconel 600	-	Tubing
  AMS 5665 Bar	Inconel 600	-	Bar
  AMS 5665 Custom Tube	Inconel 600	-	Custom Tube
  AMS 5665 Ring	Inconel 600	-	Ring
  AMS 5961	Inconel 600	-	Wire
