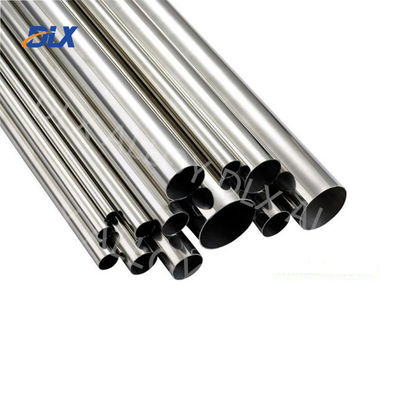

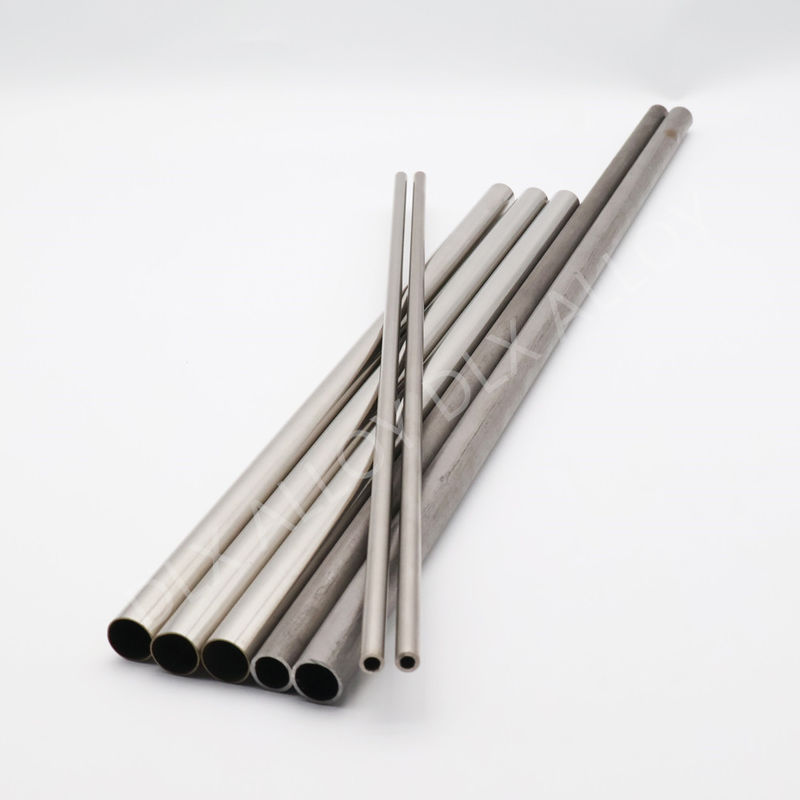

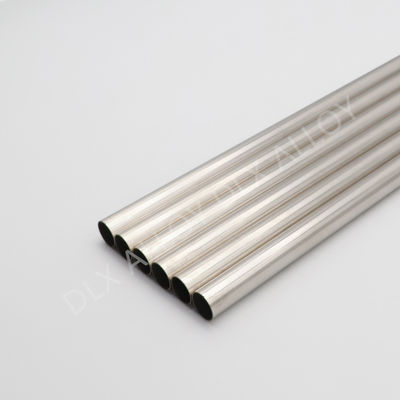

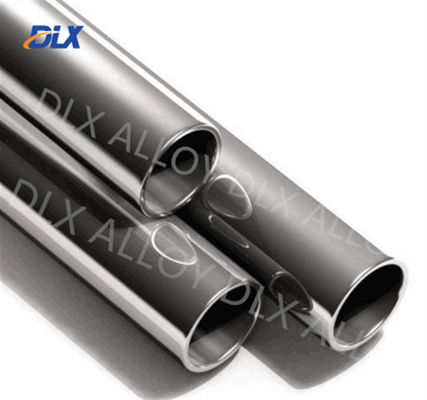

High Temperature Inconel H06625 Nickel Alloy Tube Inconel 625 Tube
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDelivery Time | 7-50 Days | Material | Ni Co Mn |
---|---|---|---|
Nickel(Min) | 58% | Thermal Conductivity | 9.8 W/m*℃ |
Curie Point | -319℉ (-195℃) | Density | 8.44 G/cm3 |
Yield Strength | 479.2-528.8 MPA | Condition | Hard / Soft |
Sureface | Bright,Oxided | Tensile Strength | 1276-1034 MPA |
Melting Point | 1350℃ | Elongation | 34-54% |
Product Name | High Temperature Nickel-based Alloy 625 Nickel Tubing | ||
Highlight | Inconel H06625 Nickel Alloy Tube,Ni Inconel 625 Tube,Nickel Alloy Inconel 625 Tube |
High Temperature Resistance Alloy Inconel N06625 Nickel Alloy 625 Tubing Inconel 625 Pipe
- Inconel Series
Inconel 625 is a nickel-based superalloy that possesses high strength properties and resistance to elevated temperatures. It also demonstrates remarkable protection against corrosion and oxidation.
The safe operating temperature range of alloy 625 nickel tubing spans from -238℉ (-150℃) to up to 1800℉ (982℃), so it can be used in a wide spectrum of applications that require exceptional corrosion resistance characteristics.
Variable temperatures are not the only thing that the alloy 625 nickel tubing can withstand, as the same applies for variable pressures and very harsh environments that induce high rates of oxidation. In general, it finds application in sea-water applications, the chemical processing industry, the nuclear energy field, and also the aerospace sector.Because of the metal's high Niobium (Nb) levels as well as its exposure to harsh environments and high temperatures, there was concern about the weldability of Inconel 625. Studies were therefore conducted to test the metal's weldability, tensile strength and creep resistance, and Inconel 625 was found to be an ideal choice for welding
As it is evident from the latter especially, the alloy 625 nickel tubing is also very resistant to cracking, rupture and creeping damage, featuring high tensile strength and extraordinary corrosion versatility.
-
Chemical Properties Of Alloy 625 Nickel Tubing
Nickel | Chromium | Molybdenum | Iron | Niobium and Tantalum | Cobalt | Manganese | Silicon |
58% | 20%-23% | 8%-10% | 5% | 3.15%-4.15% | 1% | 0.5% | 0.5% |
The applications of Inconel 625 pipes include:
- Oil and gas industry: Inconel 625 pipes are used in oil and gas extraction, production, and processing equipment, including offshore platforms, pipelines, and refineries, due to their high strength, corrosion resistance, and ability to withstand aggressive environments.
- Chemical processing industry: Inconel 625 pipes are used in various chemical processing equipment, such as reactors, heat exchangers, and piping systems, due to their resistance to corrosion and oxidation in highly corrosive and high-temperature environments.
- Power generation industry: Inconel 625 pipes are used in power plants, including nuclear, thermal, and renewable energy facilities, due to their high temperature strength, corrosion resistance, and ability to withstand high-pressure conditions.
- Aerospace industry: Inconel 625 pipes are used in aircraft engines, gas turbine components, and exhaust systems due to their high temperature strength, resistance to thermal fatigue, and corrosion resistance.
- Marine industry: Inconel 625 pipes are used in marine applications, such as seawater cooling systems, offshore structures, and shipbuilding, due to their resistance to corrosion in seawater and high strength.
- Automotive industry: Inconel 625 pipes are used in high-performance automotive exhaust systems due to their high temperature strength, resistance to thermal fatigue, and corrosion resistance.
- Petrochemical industry: Inconel 625 pipes are used in petrochemical plants for processing and transporting various chemicals, due to their resistance to corrosion and oxidation in aggressive chemical environments.
- Pharmaceutical industry: Inconel 625 pipes are used in pharmaceutical manufacturing processes, such as high-purity water systems and sterile processing, due to their resistance to corrosion and ability to maintain product integrity.
- Heat treatment industry: Inconel 625 pipes are used in heat treatment furnaces and equipment due to their high temperature strength, resistance to oxidation, and ability to withstand thermal cycling.
- Food processing industry: Inconel 625 pipes are used in food processing equipment, such as heat exchangers and piping systems, due to their resistance to corrosion and ability to maintain hygienic conditions.
- ,Type we could offer
AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape AMS 5581 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5581 Tubing Inconel 625 Nickel N06625 - Tubing AMS 5599 Plate Inconel 625 Nickel N06625 - Plate AMS 5599 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5599 Strip Inconel 625 Nickel N06625 - Strip AMS 5666 Bar Inconel 625 Nickel N06625 - Bar AMS 5666 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5666 Forging Inconel 625 Nickel N06625 - Forging AMS 5666 Ring Inconel 625 Nickel N06625 - Ring AMS 5869 Plate Inconel 625 Nickel N06625 - Plate AMS 5869 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5869 Strip Inconel 625 Nickel N06625 - Strip
