58% Nickel Chromium Alloy 625 Nickel Tubing Bright Sureface

Product Details

Place of Origin: China

Brand Name: DLX

Certification: CE,ROHS

Model Number: Inconel 625 tube

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $30-$50

Packaging Details: High temperature nickel-based alloy 625 nickel tubing packed in wooden case

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Nickel Chromium Alloy 625 Tubing

,

625 Nickel Tubing

,

Inconel 625 Tube

Material:
Ni Co Mn
Nickel(Min):
58%
Thermal Conductivity:
9.8 W/m*℃
Curie Point:
-319℉ (-195℃)
Density:
8.44 G/cm3
Yield Strength:
479.2-528.8 MPA
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
1276-1034 MPA
Melting Point:
1350℃
Elongation:
34-54%
Product Name:
High Temperature Nickel-based Alloy 625 Nickel Tubing
Material:
Ni Co Mn
Nickel(Min):
58%
Thermal Conductivity:
9.8 W/m*℃
Curie Point:
-319℉ (-195℃)
Density:
8.44 G/cm3
Yield Strength:
479.2-528.8 MPA
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
1276-1034 MPA
Melting Point:
1350℃
Elongation:
34-54%
Product Name:
High Temperature Nickel-based Alloy 625 Nickel Tubing
Description

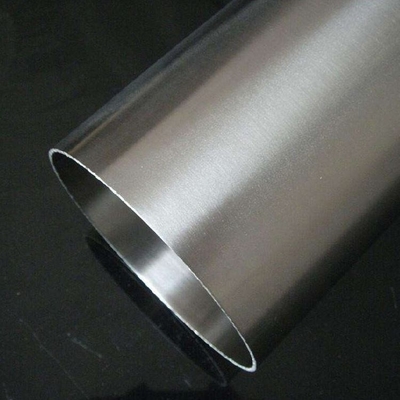

58% Nickel Chromium Alloy 625 Nickel Tubing Bright Sureface

nickel-chromium alloy 625 nickel tubing

58% Nickel Chromium Alloy 625 Nickel Tubing Bright Sureface 0





  • Inconel Series

Inconel 625 is a nickel-based superalloy that possesses high strength properties and resistance to elevated temperatures. It also demonstrates remarkable protection against corrosion and oxidation.

The safe operating temperature range of alloy 625 nickel tubing spans from -238℉ (-150℃) to up to 1800℉ (982℃), so it can be used in a wide spectrum of applications that require exceptional corrosion resistance characteristics.

Variable temperatures are not the only thing that the alloy 625 nickel tubing can withstand, as the same applies for variable pressures and very harsh environments that induce high rates of oxidation. In general, it finds application in sea-water applications, the chemical processing industry, the nuclear energy field, and also the aerospace sector.Because of the metal's high Niobium (Nb) levels as well as its exposure to harsh environments and high temperatures, there was concern about the weldability of Inconel 625. Studies were therefore conducted to test the metal's weldability, tensile strength and creep resistance, and Inconel 625 was found to be an ideal choice for welding

As it is evident from the latter especially, the alloy 625 nickel tubing is also very resistant to cracking, rupture and creeping damage, featuring high tensile strength and extraordinary corrosion versatility.

SKU Description DFARS Manufacture Method OD Wall Specification
45539 SMLS 625 B/SB444 3/8 OD X .065WA No SEAMLESS & DRAWN 0.3750 0.0650 ASTM B444 ASME SB444
45534 SMLS 625 B/SB444 3/8 OD X .035WA No SEAMLESS & DRAWN 0.3750 0.0350 ASTM B444 ASME SB444
45552 SMLS 625 B/SB444 1/2 OD X .065WA No SEAMLESS & DRAWN 0.5000 0.0650 ASTM B444 ASME SB444
45551 SMLS 625 B/SB444 1/2 OD X .035WA No SEAMLESS & DRAWN 0.5000 0.0350 ASTM B444 ASME SB444
A5954 SMLS 625 5581 LCS 1/2 X .028 Yes SEAMLESS & DRAWN 0.5000 0.0280 AMS5581 ASQR-01
45557 SMLS 625 B/SB444 3/4 OD X .083WA No SEAMLESS & DRAWN 0.7500 0.0830 ASTM B444 ASME SB444
45556 SMLS 625 B/SB444 3/4 OD X .065WA No SEAMLESS & DRAWN 0.7500 0.0650 ASTM B444 ASME SB444
46885 SMLS 625 AMS 5581 3/4 X .028 WA No SEAMLESS & DRAWN 0.7500 0.0280 AMS5581
45646 SMLS 625 B/SB444 1.00 OD X .083WA No SEAMLESS & DRAWN 1.0000 0.0830 ASTM B444 ASME SB444
45640 SMLS 625 B/SB444 1.00 OD X .065WA No SEAMLESS & DRAWN 1.0000 0.0650 ASTM B444 ASME SB444

The applications of Inconel 625 pipes include:

  1. Oil and gas industry: Inconel 625 pipes are used in oil and gas extraction, production, and processing equipment, including offshore platforms, pipelines, and refineries, due to their high strength, corrosion resistance, and ability to withstand aggressive environments.
  2. Chemical processing industry: Inconel 625 pipes are used in various chemical processing equipment, such as reactors, heat exchangers, and piping systems, due to their resistance to corrosion and oxidation in highly corrosive and high-temperature environments.
  3. Power generation industry: Inconel 625 pipes are used in power plants, including nuclear, thermal, and renewable energy facilities, due to their high temperature strength, corrosion resistance, and ability to withstand high-pressure conditions.
  4. Aerospace industry: Inconel 625 pipes are used in aircraft engines, gas turbine components, and exhaust systems due to their high temperature strength, resistance to thermal fatigue, and corrosion resistance.
  5. Marine industry: Inconel 625 pipes are used in marine applications, such as seawater cooling systems, offshore structures, and shipbuilding, due to their resistance to corrosion in seawater and high strength.
  6. Automotive industry: Inconel 625 pipes are used in high-performance automotive exhaust systems due to their high temperature strength, resistance to thermal fatigue, and corrosion resistance.
  7. Petrochemical industry: Inconel 625 pipes are used in petrochemical plants for processing and transporting various chemicals, due to their resistance to corrosion and oxidation in aggressive chemical environments.
  8. Pharmaceutical industry: Inconel 625 pipes are used in pharmaceutical manufacturing processes, such as high-purity water systems and sterile processing, due to their resistance to corrosion and ability to maintain product integrity.
  9. Heat treatment industry: Inconel 625 pipes are used in heat treatment furnaces and equipment due to their high temperature strength, resistance to oxidation, and ability to withstand thermal cycling.
  10. Food processing industry: Inconel 625 pipes are used in food processing equipment, such as heat exchangers and piping systems, due to their resistance to corrosion and ability to maintain hygienic conditions.

  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5581 Inconel 625 Nickel N06625
    AMS 5581 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5581 Custom Tube
    AMS 5581 Tubing Inconel 625 Nickel N06625 - Tubing AMS 5581 Tubing
    AMS 5599 Inconel 625 Nickel N06625
    AMS 5599 Plate Inconel 625 Nickel N06625 - Plate AMS 5599 Plate
    AMS 5599 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5599 Sheet
    AMS 5599 Strip Inconel 625 Nickel N06625 - Strip AMS 5599 Strip
    AMS 5666 Inconel 625 Nickel N06625
    AMS 5666 Bar Inconel 625 Nickel N06625 - Bar AMS 5666 Bar
    AMS 5666 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5666 Custom Tube
    AMS 5666 Forging Inconel 625 Nickel N06625 - Forging AMS 5666 Forging
    AMS 5666 Ring Inconel 625 Nickel N06625 - Ring AMS 5666 Ring
    AMS 5869 Inconel 625 Nickel N06625
    AMS 5869 Plate Inconel 625 Nickel N06625 - Plate AMS 5869 Plate
    AMS 5869 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5869 Sheet
    AMS 5869 Strip Inconel 625 Nickel N06625 - Strip AMS 5869 Strip
