Bright Soft CuNi19 340 MPA Soft 7.5mm CuNi Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | CuNi19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Nickel Copper | Nickel(Min): | 19% |
|---|---|---|---|
| Resistivity: | 0.25 | Tensile Strength: | 340MPA |
| Density: | 8.9 G/cm3 | Application: | Heating, Resistivity |
| Condition: | Hard / Soft | Sureface: | Bright |
| Delivery Time: | 7-20 Days | Maximum Temperature: | 300℃ |
| Melting Point: | 1135℃ | ||
| High Light: | CuNi19 CuNi Alloy,340 MPA Cu Ni Alloy,7.5mm CuNi Alloy |
||
Product Description
- CuNi Series
Copper nickel alloy has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.
- Copper Nickel alloy performance tables
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |

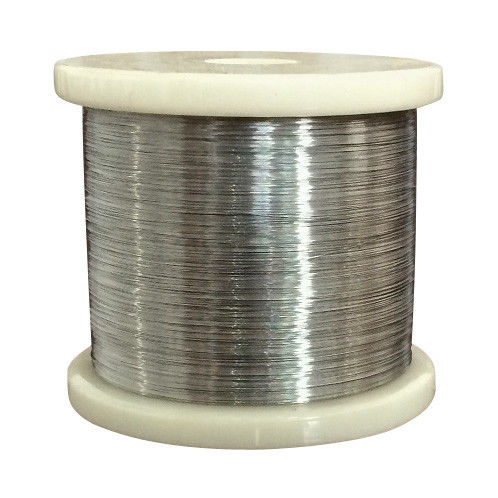

- The Form we could offer
| Image | ||
|
||
|
||
|
||
|
||
|
||
