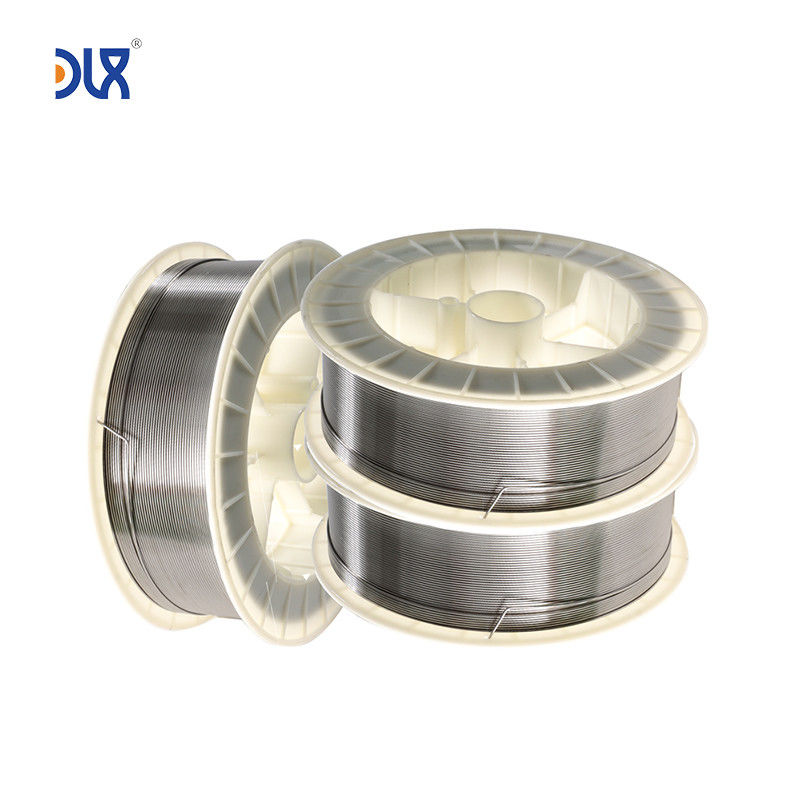

1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: ERNiCrMo-3

Payment & Shipping Terms

Minimum Order Quantity: 15

Packaging Details: Spool package with Carton box, Coil package with polybag for ERNiCrMo-3

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

1.60mm Nickel Alloy Welding Wire

,

ERNiCrMo-3 Welding Wire

,

ASME Nickel Alloy Welding Wire

Material:
Ni, Mo, Cr
Elongation:
≥30%
Density:
8.40 G/cm3
Tensile Strength Rm N/mm²:
114,000 Psi
Yieldstrength R P0. 2 N/mm²:
66,000 Psi
Certificates:
AWS A5.14 ASME SFA 5.14
Material:
Ni, Mo, Cr
Elongation:
≥30%
Density:
8.40 G/cm3
Tensile Strength Rm N/mm²:
114,000 Psi
Yieldstrength R P0. 2 N/mm²:
66,000 Psi
Certificates:
AWS A5.14 ASME SFA 5.14
Description
1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire

1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire 0

1.20mm 1.60mm Nickel alloy ERNiCrMo-3 Welding Wire


Nickel Alloy MIG Welding Wire Inconel 625 Wire price per kg

Inconel 625 welding wire ERNiCrMo-3 material is suitable for the welding of nickel based alloys such as Inconel 625 and Incoloy 825, but also for dissimilar welds, e. G. Between stainless and nickel-based alloys and mild steel.

Standard: AWS A5.14 EN18274 ,ASME II, SFA-5.14, ERNiCr-3
Size:0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM
Form:MIG(15kg/spool), TIG(5kg/box)
Applications:used for welding the INCONEL ALLOY 600/825/25-6MO, and other stainless steel with Mo by the way of gas metal arc welding,tungstun-inert-gas arc welding.

Weling series:ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1

Nickel welding wire    Nickel welding wire    Nickel welding wire   Nickel welding wire   Nickel welding wire


Chemical Properties of Nickel welding wire ERNiCrMo-3



el Welding Wire    Nickel W

ErNiCrMo-3 Deposited Chemical Composition % (Typical)
C = 0.09 Si = 0.12 Ni = Balance
Mn = 0.05 Cr = 21.9 Nb/Ta = 3.65
Fe = 0.62 Mo = 8.70

elding Wire    Nickel Welding Wire   Nickel Welding Wire


Size we could offer



MIG (15kg/spool), Size
    0.8 1.2 2.4 3.2mm
TIG (5kg/box),Strip





Application



ERNiCrMo-3 (NA625) is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys.





Deposited All Weld Metal Properties % (AW)
Tensile Strength 114,000 psi
Yield Strength 66,000 psi
Elongation 35%

1.20mm 1.60mm Nickel Alloy ERNiCrMo-3 ERNiCrMo-4 nickel Welding Wire 1
