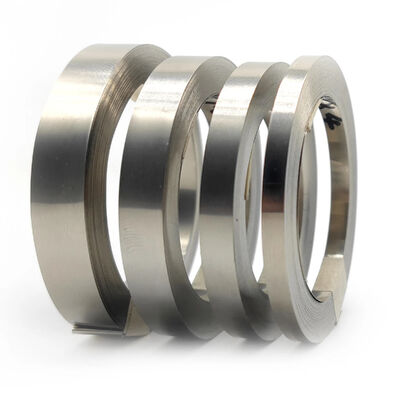

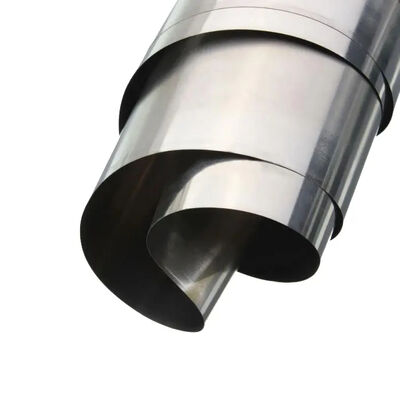

Ultra Thin Inconel 625 Foil Strip 0.05mm for Seawater Bellows & Expansion Joints

Our ultra thin Inconel 625 foil strip is custom-engineered for high-performance seawater bellows expansion joints, offering exceptional flexibility, micro-dimensional precision, and complete immunity to chloride-induced stress corrosion cracking. Calibrated to an exact 0.05mm thickness with mirror-bright annealed surface quality, this ultra thin Inconel 625 foil strip guarantees prolonged cycle life and seamless deep-drawing/hydroforming capabilities for marine, subsea, and offshore exhaust systems.

In modern marine propulsion, offshore piping, and seawater desalination plants, flexible expansion joints must withstand aggressive chloride environments, high-velocity seawater spray, and continuous cyclic vibration. The ultra thin Inconel 625 foil strip (0.05mm thickness) is manufactured via multi-pass precision cold rolling and continuous atmosphere-protected bright annealing to provide the ultimate raw material for single-ply and multi-ply bellows fabrication.

By optimizing the solid-solution strengthening balance of Nickel-Chromium-Molybdenum-Niobium, this ultra thin Inconel 625 foil strip delivers superior spring-back consistency, ultra-smooth slit edges, and flawless weldability, ensuring that every seawater bellows expansion joint achieves maximum cycle endurance without micro-cracking or localized crevice failure.

Each coil of ultra thin Inconel 625 foil strip undergoes advanced multi-point laser micrometer gauging during rolling. Our 0.05mm precision calibration ensures uniform wall thickness across the entire strip width, eliminating weak spots during mechanical hydroforming or elastomeric expansion joint forming.

Formulated with high concentrations of molybdenum and niobium dissolved in a high-purity nickel matrix, the ultra thin Inconel 625 foil strip provides near-total immunity to seawater pitting, crevice corrosion, and intergranular attack in stagnant or flowing marine conditions.

With exceptional yield strength, elongation properties, and microstructural grain refinement, this ultra thin Inconel 625 foil strip sustains millions of flexure and compression cycles without fatigue failure, significantly extending the maintenance intervals of marine expansion joints.

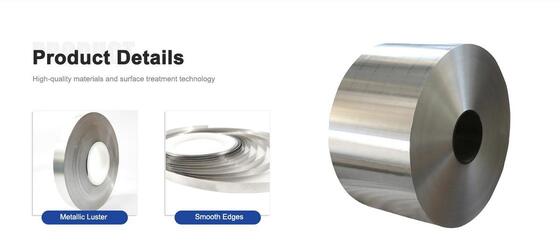

Processed under protective hydrogen-atmosphere bright annealing, the strip features an oxide-free, mirror-clean surface finish with ultra-low Ra roughness. Precision rotary slitting guarantees burr-free edges that eliminate edge tearing during bellows convolution shaping and laser/TIG seam welding.

Engineered as the critical core diaphragm for marine exhaust bellows, turbine intake compensators, and deck piping expansion joints exposed to salt fog and sulfur-bearing flue gases.

Serves as flexible high-pressure conduits and vibration dampeners in reverse-osmosis desalination high-pressure pumps and offshore drilling rig cooling loops.

Provides micro-deflection sensing elements, pressure transmitter diaphragms, and burst discs requiring ultra-thin gauge precision (0.05mm) and non-magnetic stability.

Utilized in high-efficiency plate-fin heat exchangers, recuperators, and high-temperature exhaust gas heat recovery systems in naval architecture.

With specialized vacuum induction melting (VIM), electroslag remelting (ESR), and 20-high Sendzimir rolling mills, DLX maintains an integrated production line with a consolidated monthly capacity of over 1,200 tons, guaranteeing rapid turnaround and supply security for global OEMs.

Whether you require ultra-narrow 10mm strip for micro-bellows or wide master coils with specific inner diameters (ID 100mm/200mm/300mm), DLX provides bespoke slitting, custom edge conditioning, and export-grade moisture-barrier packaging.

Every batch of our ultra thin Inconel 625 foil strip is subjected to comprehensive quality checks including chemical spectral verification, tensile testing, 100% surface eddy current inspection, and dimensional micro-profiling.

A: Standard austenitic stainless steels often suffer from severe pitting and stress corrosion cracking when exposed to warm seawater and chloride concentrations. The ultra thin Inconel 625 foil strip contains high levels of molybdenum and niobium in a pure nickel base, creating a passive oxide film that is virtually impervious to chloride attack, while offering double the yield strength and superior fatigue endurance.

A: Precision thickness calibration to ±0.002mm ensures uniform stress distribution during hydroforming and roll-forming processes. This eliminates wall thinning, burst risks, and dimensional spring-back discrepancies, allowing expansion joint manufacturers to achieve higher production yields and longer fatigue cycle ratings.

A: We utilize high-precision tungsten carbide rotary slitting lines that produce smooth, clean, and burr-free edges. This prevents edge stress concentrations and eliminates the need for post-slitting deburring prior to continuous seam welding.

A: We offer flexible commercial terms tailored to production and prototyping needs. Standard sizes are stocked for rapid shipment, while custom thickness and width slitting can be scheduled promptly via our robust 1,200-ton monthly production infrastructure. Contact our engineering team with your drawings for exact MOQ and delivery schedules.
