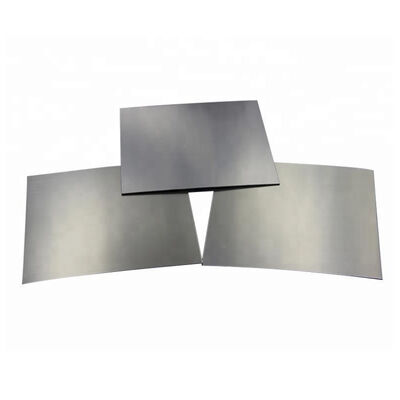

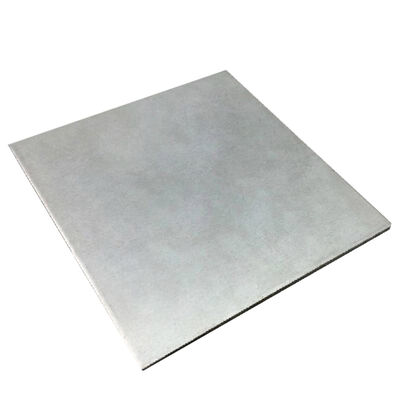

High Yield Strength Hot Rolled Inconel 718 Plate 5mm-50mm for Rocket Motor Casings

Engineered specifically for critical propulsion and high-pressure aerospace systems, our high yield strength Inconel 718 plate (available in hot rolled 5mm to 50mm thicknesses) delivers the uncompromising structural integrity required for rocket motor casings, liquid propellant thrust chambers, and severe-environment pressure containment. Manufactured through advanced double-vacuum melting processes (VIM + VAR) and controlled thermomechanical processing, each high yield strength Inconel 718 plate exhibits isotropic mechanical reliability, exceptional fracture toughness, and superior resistance to post-weld strain-age cracking. With precision leveling and tight dimensional tolerances, this hot rolled 5mm to 50mm material provides aerospace engineers with unmatched reliability under extreme multi-axial stress fields.

Modern rocket motor casings endure tremendous internal ignition pressures, severe mechanical vibration, and rapid temperature spikes. To prevent catastrophic wall failure, structural materials must maintain high strength without sacrificing ductility. Our high yield strength Inconel 718 plate is metallurgical engineered to overcome these challenges, outperforming conventional alloys under simultaneous mechanical and thermal loads.

The superior performance of our hot rolled Inconel 718 plate (5mm to 50mm) stems from controlled precipitation hardening. By balancing niobium additions with targeted thermal processing, the alloy forms microscopic gamma double prime (γ′′γ′′) precipitates that lock the crystalline matrix. This unique metallurgy provides our high yield strength Inconel 718 plate with outstanding resistance to strain-age cracking during the roll-bending, electron-beam welding, and final assembly of cylindrical and hemispherical rocket motor casings.

• Uncompromised High Yield Strength: Every high yield strength Inconel 718 plate achieves a minimum room-temperature yield strength of $\ge 1030\text{MPa}$ ($150\text{ksi}$) and tensile strength up to $1450\text{MPa}$, retaining high load-bearing capability up to 650∘C650∘C (1200∘F1200∘F).
• Maximum Burst Pressure Safety for Rocket Motor Casings: High dynamic fracture toughness combined with uniform elongation provides an exceptional safety margin against sudden overpressure in rocket motor casings.
• Heavy-Section Uniformity in Hot Rolled 5mm to 50mm: Specialized multi-pass rolling ensures fine, uniform grain structures throughout the entire thickness profile, eliminating center-line segregation in thick 50mm plates.
• Cryogenic Ductility & Hydrogen Resistance: Operates reliably down to −196∘C−196∘C and cryogenic propellant temperatures without low-temperature embrittlement.
• Superior Multi-Pass Weldability: The sluggish precipitation behavior of our hot rolled Inconel 718 plate allows heavy-section welding via TIG, plasma, or electron beam methods with minimal heat-affected zone (HAZ) micro-fissuring.

• Solid Rocket Motor Casings & Missile Airframes: Roll-formed and welded cylinders fabricated from hot rolled 5mm to 20mm plates, delivering high strength-to-weight efficiency and burst resistance.
• Liquid Rocket Engine Thrust Chambers & Domes: Heavy hot rolled 20mm to 50mm plates machined into high-integrity injector domes, structural flanges, and combustion jacket walls.
• High-Temperature Gas Turbine Containment: Used in heavy-duty aviation and industrial turbines where resistance to high-temperature oxidation and cyclic thermal fatigue is critical.
• Cryogenic High-Pressure Propellant Vessels: Safely containing liquid oxygen (LOX) and liquid hydrogen (LH2) under high pressures without risk of low-temperature brittle fracture.
• Severe Industrial Pressure Shells: Applied in chemical autoclaves and deep-sea exploration tools subjected to extreme multi-axial mechanical stresses.

• 1,200 Tons/Month Superalloy Manufacturing Capacity: Large-scale vacuum induction melting, electro-hydraulic forging presses, and heavy plate rolling mills guarantee rapid, continuous supply for major propulsion and energy programs.
• Ultra-High Purity Double-Vacuum Metallurgy: Utilizing secondary vacuum arc remelting (VAR) over primary vacuum induction melting (VIM) to eliminate non-metallic inclusions and gaseous impurities (${\text{O}}^2,{\text{N}}^2$), ensuring isotropic strength throughout the hot rolled 5mm to 50mm profile.
• Tight Dimensional & Flatness Tolerance Control: Advanced multi-roller leveling and CNC precision trimming deliver strict thickness consistency ($\pm 0.15\text{mm}-\pm 0.30\text{mm}$) and superior flatness, minimizing downstream machining scrap for rocket motor casings.
• 100% Comprehensive Non-Destructive Quality Gate: Every high yield strength Inconel 718 plate undergoes full-body immersion ultrasonic flaw detection, spectroscopic chemical verification, and hydrostatic/tensile testing with 100% heat-to-plate traceability.
• Flexible B2B Custom Engineering: Offering customized plate lengths, precision waterjet cut blanks, tailored heat treatment states (Annealed or Aged), and dynamic project-specific MOQs to accommodate development prototypes through full-rate production.

Product FAQ

Q1: Why choose high yield strength Inconel 718 plate for rocket motor casings?

A: Inconel 718 combines high yield strength (>= 1030 MPa), high stiffness, and oxidation resistance from -253°C to 650°C. It avoids the high-temperature strength loss of titanium and the propellant embrittlement of maraging steels.

Q2: What heat treatment states are available for 5mm to 50mm Inconel 718 plates?

A: We provide three standard delivery conditions:

1. Solution Annealed (950°C - 980°C): Softened (~ 20 - 25 HRC) for roll-bending, forming, and drawing.
2. Precipitation Aged: Peak strength (36 - 44 HRC) for direct machining and installation.
3. Custom Annealed: Grain-size controlled for specific cryogenic or high-temperature requirements.

Q3: How to weld hot rolled 5mm to 50mm Inconel 718 plates without cracking?

A: Niobium additions slow precipitation kinetics, minimizing strain-age cracking. Weld in the solution-annealed condition via TIG, Plasma, or Electron Beam (EBW) with matching nickel filler, followed by aging to restore parent-metal strength.

Q4: How are heavy Inconel 718 plates packaged for export?

A: Plates are surface-passivated, interleaved with moisture barriers, strapped with steel bands, and secured on fumigated wooden skids or in reinforced wooden crates to prevent surface damage and bending.

Q5: What are the MOQ and lead time for custom Inconel 718 plates?

A: We offer dynamic project-specific MOQs. In-stock plates ship immediately; custom-rolled thicknesses and cut-to-size blanks require 3 to 5 weeks.
