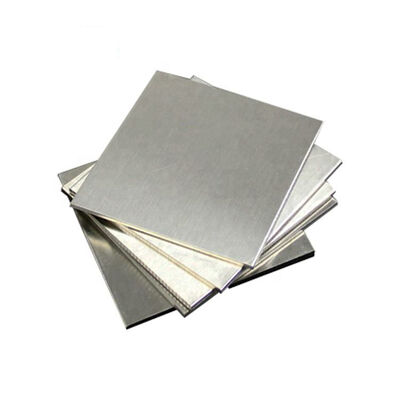

Thermal Fatigue Resistant Inconel 617 Plate for High Temperature Gas Reactors

Engineered specifically for high temperature gas reactors, advanced nuclear power piping, and severe thermal cycling environments, this solution treated Inconel 617 plate provides superior thermal fatigue resistance, high creep strength, and exceptional oxidation endurance above 1000°C.

Inconel 617 (UNS N06617 / W.Nr. 2.4663) is an advanced nickel-chromium-cobalt-molybdenum alloy designed for primary containment and high-stress structural components in next-generation high temperature gas reactors (HTGR). The balanced additions of cobalt and molybdenum provide exceptional solid-solution matrix strengthening, while the high chromium and aluminum content ensure superior chemical stability in aggressive helium coolant and combustion gas streams.

In nuclear gas reactors and ultra-supercritical heat exchangers, components are subjected to severe cyclic thermal shocks, high mechanical stresses, and prolonged exposure to elevated temperatures exceeding 950°C. Our solution treated Inconel 617 plate is engineered with uniform coarse grain structures and tight thickness tolerances, guaranteeing maximum thermal fatigue resistance and long-term dimensional stability during continuous high-temperature service.

1. Superior Thermal Fatigue Resistance Under Rapid Temperature Cycling: The alloy matrix maintains exceptional microstructural stability during frequent reactor thermal startups and emergency cooldowns, preventing micro-crack initiation and boundary propagation caused by localized thermal stress gradients.

2. Outstanding Creep Rupture Strength Above 1000°C: Solid solution strengthening from synergistic cobalt and molybdenum additions delivers industry-leading creep strength and rupture ductility, preventing long-term sagging or dimensional distortion under constant structural loading.

3. Exceptional Oxidation and Carburization Resistance: The combination of over 20% chromium and high aluminum content forms a dense, self-healing protective oxide scale, effectively resisting internal oxidation, scaling, and carbon diffusion in impure helium coolant atmospheres.

4. Homogeneous Solution Treated Microstructure: High-temperature solution annealing dissolves brittle intermetallic precipitates and optimizes grain boundary carbide distributions, maximizing ductility, impact toughness, and cyclic thermal fatigue resistance.

5. Excellent High-Temperature Weldability and Joint Integrity: The alloy maintains stable metallurgical weldability across automated TIG, MIG, and submerged arc welding processes, exhibiting minimal susceptibility to hot cracking or post-weld microfissuring in heavy plate fabrications.

1. High Temperature Gas Reactor Core Components: Intermediate heat exchangers (IHX), core support structures, hot gas ducts, thermal insulation liners, and control rod guide tubes facing intense thermal fatigue and helium environments.

2. Advanced Nuclear Hydrogen Cogeneration Systems: High-temperature steam electrolysis units, sulfur-iodine thermochemical cycle piping, and primary helium heat transfer loops operating at temperatures up to 950°C.

3. Industrial Gas Turbine Combustors and Transition Ducts: Combustor cans, transition liners, flame holders, and turbine shrouds exposed to extreme cyclic thermal gradients and high-velocity gas erosion.

4. Petrochemical Reforming and Pyrolysis Furnaces: Ethylene cracking pigtails, steam methane reformer manifolds, and high-temperature catalyst support plates requiring long-term thermal fatigue resistance.

5. Concentrated Solar Power (CSP) Tower Receivers: Molten salt and high-temperature gas receiver panels subjected to severe diurnal thermal cycling and intense concentrated solar flux.

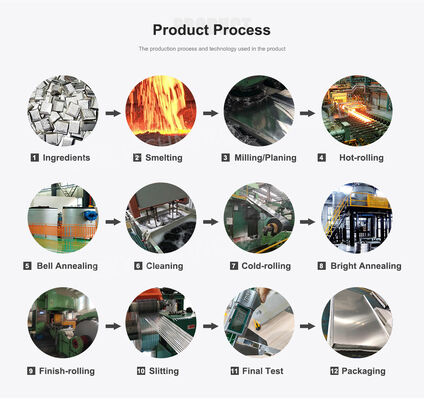

• Integrated Smelting and Precision Hot Rolling Facilities: DLX operates end-to-end production lines including Vacuum Induction Melting (VIM), Electroslag Remelting (ESR), heavy plate hot rolling, and computer-controlled solution heat treatment furnaces to guarantee ultra-high metallurgical purity and uniform grain structures.
• Robust Monthly Production Capacity of 1,200 Tons: With a reliable production capacity of 1,200 tons per month, DLX reliably supports both large-scale nuclear reactor projects and specialized industrial manufacturing contracts with stable lead times.
• Stringent Full-Batch Quality Verification: Every plate lot undergoes 100% Positive Material Identification (PMI), automated ultrasonic volumetric flaw detection, high-temperature tensile verification, grain size analysis, and certified mill test reporting.
• Customized Heavy Plate Shearing and Export Packaging: We provide precision plasma cutting, waterjet profiling, edge bevelling, protective surface interleaving, and solid fumigated wooden crate packaging for safe global transit.

Inconel 617 provides the highest design allowable stress values among nickel-base alloys at temperatures between 800°C and 1000°C. Its outstanding thermal fatigue resistance, high creep strength, and stability in impure helium make it the benchmark structural material for advanced nuclear reactors and heat exchangers.

Solution treatment at 1150°C to 1200°C followed by rapid quenching dissolves deleterious second phases and establishes an optimized grain structure with controlled carbide distribution. This state maximizes elevated-temperature creep strength, ductility, and cyclic thermal fatigue resistance during prolonged service.

DLX utilizes precision multi-roll hot leveling equipment and automated 100% ultrasonic immersion testing to verify complete internal soundness, eliminating internal laminations, voids, and segregation prior to final dimensional inspection.

Inconel 617 possesses excellent weldability and is typically welded in the solution annealed condition without preheating. For most nuclear and thermal applications, post-weld heat treatment is not required, as the weld metal naturally exhibits excellent strength and thermal fatigue resistance.

MOQ is dynamically configured according to required plate thickness, custom cut dimensions, and project specifications. All shipments are packed with heavy-duty waterproof barrier wrapping, edge corner protectors, and reinforced fumigated timber cases strapped with galvanized steel.
