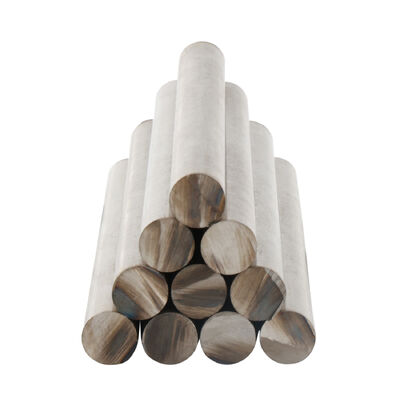

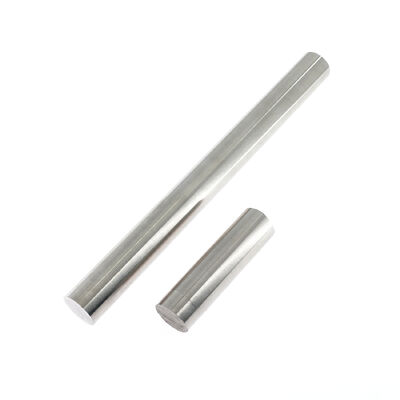

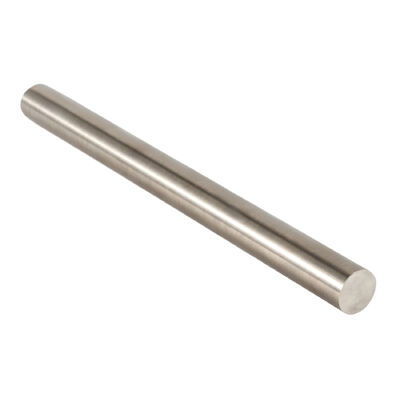

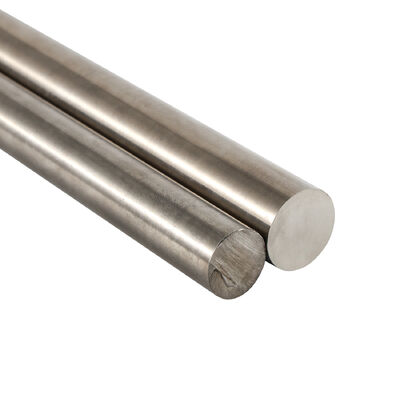

Inconel 625 Marine Round Bar High Strength Solid Shaft for Offshore Mooring

High-integrity Inconel 625 solid round bar engineered for marine hardware, offshore mooring shafts, subsea connectors, and severe marine splash zone environments. Manufactured with tight dimensional tolerances, customized bar diameters, and verified mechanical properties.

Product Summary

Inconel 625 solid round bar is a premium nickel-chromium-molybdenum superalloy engineered specifically for severe marine and offshore applications. With high yield strength, exceptional resistance to chloride pitting and crevice corrosion, and outstanding fatigue performance, this solid shaft material ensures long-term structural reliability in offshore mooring systems, subsea riser clamps, marine propulsion shafts, and subsea fastening hardware. DLX Alloy provides hot-rolled, forged, and precision centerless-ground round bars tailored to your exact dimensional tolerances and engineering requirements.

Product Overview

Nickel-Chromium Alloy 625 Round Bar Engineering

Inconel 625 is an austenitic nickel-base superalloy strengthened primarily by the solid-solution hardening effects of molybdenum and niobium within its nickel-chromium matrix. This unique metallurgical structure delivers superior mechanical strength at ambient and elevated temperatures without requiring age-hardening heat treatments.

In offshore mooring applications, mooring line shafts, fairlead pins, shackle connectors, and tensioner shafts are continuously exposed to turbulent seawater, severe biofouling, cyclical fatigue loading, and extreme tensile stresses. Inconel 625 solid bars provide virtually complete immunity to chloride-ion stress corrosion cracking and micro-pitting in marine splash zones, making them the preferred material for mission-critical offshore structural shafts.

Key Chemical Composition Ratio

Physical and Mechanical Property Baseline

Product Features: Marine Grade Solid Shaft Metallurgy

• Extreme Seawater Pitting and Crevice Corrosion Immunity

The synergistic combination of 20-23% chromium and 8-10% molybdenum delivers a high Pitting Resistance Equivalent Number (PREN > 48), preventing localized crevice attack under marine bio-fouling layers, stagnant seawater pockets, and offshore splash zones.

• Superior High-Cycle Dynamic Fatigue Strength

Niobium and molybdenum solid-solution strengthening provides high cyclic fatigue resistance and shear endurance, preventing premature shaft fracture under continuous ocean wave motion, current turbulence, and dynamic mooring line tension.

• Total Resistance to Chloride Stress Corrosion Cracking

With a nickel matrix exceeding 58%, Inconel 625 is practically immune to chloride-induced stress corrosion cracking, hydrogen embrittlement, and sulfide stress cracking in sour subsea environments.

• Comprehensive Precision Sizing and Surface Finish Options

Available from small-diameter precision tie-rods to heavy forged solid shafts. Supplied in hot-rolled, solution-annealed, peeled, rough-turned, or centerless-ground surface finishes with strict diameter and straightness tolerances.

Product Applications: Offshore Mooring Systems & Marine Hardware

• Offshore Mooring Line Connectors and Shafting

Solid hinge pins, connecting shackles, swivel shafts, mooring bridle pins, and fairlead guide shafts for floating production storage and offloading (FPSO) units, offshore wind platforms, and deepwater semi-submersible rigs.

• Subsea Wellhead and Flowline Hardware

Subsea valve shafts, actuator stems, riser tensioner pins, subsea flange bolting, and remote-operated vehicle (ROV) docking pins exposed to extreme hydrostatic pressure and corrosive seafloor environments.

• Marine Propulsion and Steering Systems

High-strength propeller shafts, rudder stock shafts, stabilizer actuator pins, and thruster drive shafts for naval defense vessels, specialized icebreakers, and oceanographic research ships.

• Heavy Industrial and Offshore Winch Systems

Towing winch drum shafts, anchor handling wildcat shafts, crane pivot pins, and load-monitoring shear pins subjected to severe shock loads and seawater spray.

Why Choose Us: DLX Alloy Manufacturing Capabilities

• 1,200 Tons Monthly Alloy Smelting & Processing Capacity

DLX Alloy operates modernized vacuum induction melting (VIM), electroslag remelting (ESR), precision radial forging, and continuous hot-rolling facilities, ensuring monthly capacity of 1,200 tons and stable lead times for global offshore project contractors.

• Strict Defect-Free Quality Assurance and Non-Destructive Testing

Every marine shaft undergoes full-length 100% ultrasonic testing, hydrostatic verification, chemical spectroscopy analysis, microstructural evaluation, and mechanical tension testing to guarantee zero internal porosities or inclusions.

• Custom Machining and Semi-Finished Component Delivery

From raw peeled forged bars to pre-machined step shafts, threaded tie-bars, keywayed drive shafts, and custom-cut lengths, our machine shop delivers components ready for final assembly.

• Flexible B2B Procurement and Export Packaging

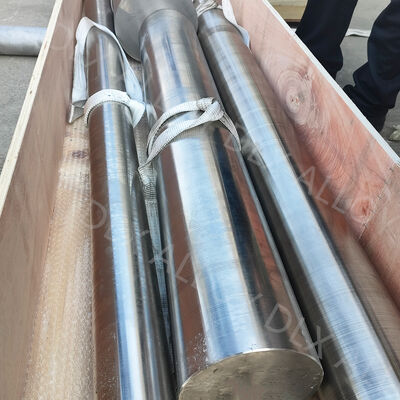

We support small trial orders with an accessible Minimum Order Quantity (MOQ) starting from 5 kg, evaluation samples (0.5 kg), and export packaging including seaworthy wooden crates, waterproof wrapping, and end-cap protection.

Product FAQ: Inconel 625 Marine Shafting & Engineering Inquiries

Q1: Why is Inconel 625 preferred over Duplex or 316L stainless steel for offshore mooring shafts?

Inconel 625 provides far superior resistance to pitting and crevice corrosion (PREN > 48 vs ~25 for 316L and ~42 for Super Duplex) in warm, stagnant seawater and splash zones. Additionally, Inconel 625 maintains higher fatigue limits and does not suffer from sigma-phase embrittlement or chloride stress corrosion cracking under extreme dynamic cyclic stress.

Q2: What bar diameter ranges and supply lengths are available for Inconel 625 solid shafts?

DLX Alloy manufactures solid round bars across a diameter range from 6 mm up to 450 mm. Standard bar lengths range from 1,000 mm to 6,000 mm, with custom cut-to-length forgings and specialized oversized step shafts available upon request.

Q3: What heat treatment condition is recommended for marine mooring shaft applications?

For structural and marine shafting, Inconel 625 is typically supplied in the Grade 1 Annealed condition (annealed around 980°C to 1050°C), providing an optimal balance of high tensile strength, high impact toughness, and maximum resistance to fatigue and stress corrosion.

Q4: How does DLX Alloy ensure internal soundness and integrity in large-diameter forged shafts?

All heavy forged bars and large solid shafts undergo Electroslag Remelting (ESR) to refine grain boundaries and eliminate macro-segregation, followed by 100% Ultrasonic Testing (UT) to verify defect-free internal structure prior to shipment.

Q5: What is the Minimum Order Quantity (MOQ) and production lead time?

Our standard production MOQ is 5 kg for standard stock diameters. Custom forged diameters or specialized ground finishes typically require a lead time of 15 to 25 business days depending on order volume and machining complexity.
