Product Details
Place of Origin: China Jiangsu
Brand Name: DLX
Certification: CE,ROHS
Model Number: Hastelloy B2
Payment & Shipping Terms
Minimum Order Quantity: 5
Delivery Time: 5-20 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Material: |
Ni Cr Mo |
Elongation: |
30 % |
Brinell Hardness HB: |
≤220 |
Density: |
8.89 G/cm3 |
Tensile Strength Rm N/mm²: |
760MPA |
Yieldstrength R P0. 2 N/mm²: |
345MPA |
Electrical Resistivity（24℃））: |
1.30 Microhm-m |
Thermal Conductivity（32℃）: |
9.4 W/m-K |
Model Number: |
Hastelloy B2 |
Material: |
Ni Cr Mo |
Elongation: |
30 % |
Brinell Hardness HB: |
≤220 |
Density: |
8.89 G/cm3 |
Tensile Strength Rm N/mm²: |
760MPA |
Yieldstrength R P0. 2 N/mm²: |
345MPA |
Electrical Resistivity（24℃））: |
1.30 Microhm-m |
Thermal Conductivity（32℃）: |
9.4 W/m-K |
Model Number: |
Hastelloy B2 |

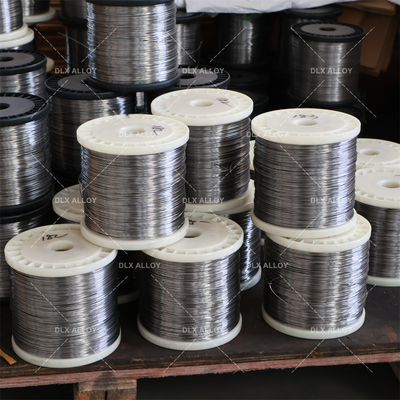

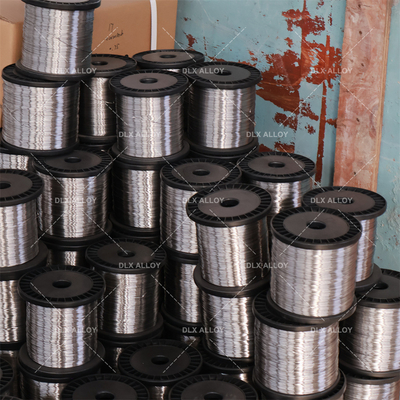

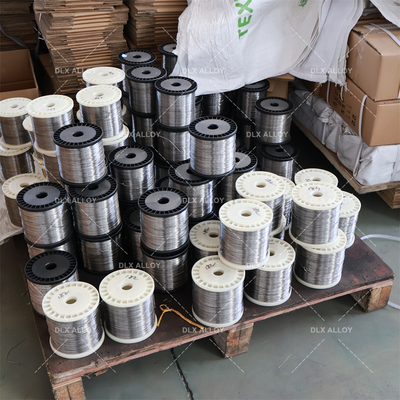

Hastelloy Alloy B-2 Factory Supply Uns N10665 9.4 W/m-K Nickel-Molybdenum Alloy Nickel Wire
Hastelloy C-4 wire is a high-performance nickel-based alloy wire with excellent corrosion resistance and high-temperature stability. It is widely used in chemical, petroleum, marine and aerospace industries.
The alloy has a density of 8.6-8.9 g/cm³ and a melting temperature range of 1325-1380℃.
Hastelloy C-4 wire performs well in high temperature and corrosive media, especially in strong acids such as chlorides, sulfuric acid, and hydrochloric acid and oxidizing environments. It has excellent mechanical properties, with a tensile strength of 650-989 MPa in solid solution, a yield strength of 280-352 MPa, and an elongation of 40%-44%. In addition, it has good oxidation resistance and stress corrosion cracking resistance, and is suitable for temperatures ranging from -200℃ to 400℃.
Hastelloy C-4 wire, with its excellent corrosion resistance and high-temperature stability, is an ideal material for handling corrosive media in industries such as chemical, petroleum, and pharmaceuticals.
| Ni | Mo | Fe | C | Co | Cr | Mn | Si | P | S |
|---|---|---|---|---|---|---|---|---|---|
|
Balance
|
26.0-30.0
|
2.0 max
|
.02 max
|
1.0 max
|
1.0 max
|
1.0 max
|
.10 max
|
.040 max
|
.030 max
|
Chemical and petrochemical industries:
Widely used in the manufacture of equipment that handles highly corrosive media, such as reactors, heat exchangers, storage tanks, pipelines, etc.
Particularly suitable for industrial environments such as sulfuric acid, hydrochloric acid, phosphoric acid, and acetic acid.
Energy and environmental protection fields:
Used in key components, coolers, steam generators, etc. of nuclear reactors due to its corrosion resistance and radiation resistance.
In the field of pollution control, such as absorption towers and filters in flue gas desulfurization systems.
Marine and salt water environments:
Suitable for heat exchangers and salt water desalination devices in marine engineering equipment.
Electronic industry:
Due to its acid resistance and high temperature performance, Hastelloy B-2 is also used in fiber optic communications and semiconductor manufacturing.
| Properties | Value |
|---|---|
| Density Room Temp. | 0.333lb/in3 |
| Melting Range | 2430°F to 2520°F |
| Specific Heat 68°F | 0.090Btu/lb. °F |
| Elastic Modulus 68°F | 31.4*106psi |
| Thermal Conductivity 68°F | 64Btu/ft.h.°F |
| Product Form | Standard |
|---|---|
| Bar | ASTM B335, B564 |
| Sheet & Plate | ASTM B333, A480 |
| Welded Pipe | ASTM B619, B775 |
| Seamless Pipe & Tube | ASTM B622 |
| Welded Tube | ASTM B626 |
Hastelloy B-2 alloy performs well in reducing media, especially in non-oxidizing acid environments such as hydrochloric acid, phosphoric acid, and sulfuric acid, and has excellent corrosion resistance.
It has good resistance to chloride ion stress corrosion cracking (SCC) and is suitable for chloride-containing environments.
The extremely low carbon and silicon content reduces the precipitation of impurity phases in the heat-affected zone of the weld, ensuring that the weld has sufficient corrosion resistance.
