PT1000 Temperature Sensor with 3850 ppm/K Temperature Coefficient 2mA Max Current for Industrial Temperature Measuring

Name: PT1000 Temperature Sensor with 3850 ppm/K Temperature Coefficient 2mA Max Current for Industrial Temperature Measuring
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: PT1000
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	PT1000
MOQ:	50
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

PT1000 Temperature Sensor

Application:

Industrial Temperature Measuring

Temperature Coefficient TC:

3850 Ppm/K

Accuracy:

1/3B,A,B,2B

Max Current:

2mA

Certificate:

ISO

Packaging Details:

Wooden box

Highlight:

PT1000 Platinum RTD Elements

Thermocouple Thin Film Sensor PT1000

PT1000 Temperature Sensor

Product Description

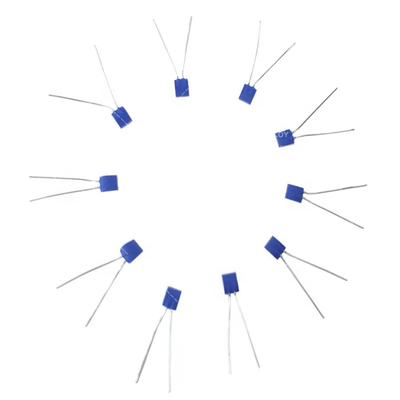

Thermocouple Thin Film Sensor PT1000 Platinum RTD Elements

PT1000 platinum resistance thermometer is a type of temperature sensor commonly used for temperature measurement. Its operation is based on the temperature characteristics of platinum resistance, whereby the resistance value of the platinum resistance changes correspondingly with temperature variations. PT1000 refers to a platinum resistance with a resistance value of 1000 ohms at 0 degrees Celsius.

Thin film platinum resistance temperature detectors (Pt-RTD) consist of a thin film platinum deposited on a ceramic substrate. Thin film Pt-RTD's provide cost advantages when compared to wire wound Pt-RTD's because of their lower material cost factor.

Product Features

Quick thermal response, reducing dynamic error
Small diameter, no limit on length
High measuring accuracy
Imported film resistor with high reliability and stability

Applications

PT1000 platinum resistance thermometers are widely utilized in various fields requiring temperature monitoring and control, including industrial automation, automotive industry, medical devices, food processing, and laboratory instruments.
Due to their high accuracy, stability, and reliability, PT1000 platinum resistance thermometers are widely recognized as sensors for precise temperature measurement.

Product Specifications

Accuracy	Deviation Error	Deviation Resistance (0°C)	(α)(Ohm/Ohm/deg.C)
1/3B	+/-(0.1+0.0017t)	+/-0.04 Ohm	0.003851+/-0.000004
A	+/-(0.15+0.002t)	+/-0.06 Ohm	0.003851+/-0.000005
B	+/-(0.3+0.005t)	+/-0.12 Ohm	0.003851+/-0.000012
2B	+/-(0.6+0.01t)	+/-0.25 Ohm	0.003851+/-0.000024
