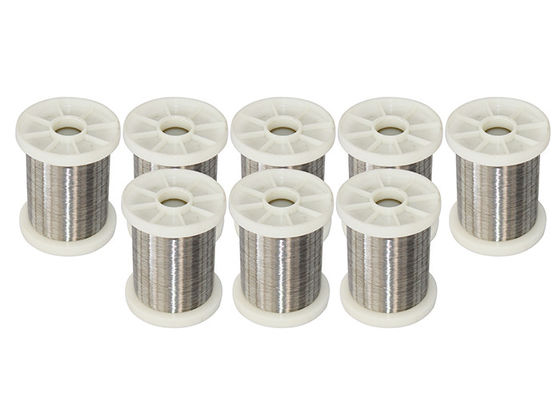

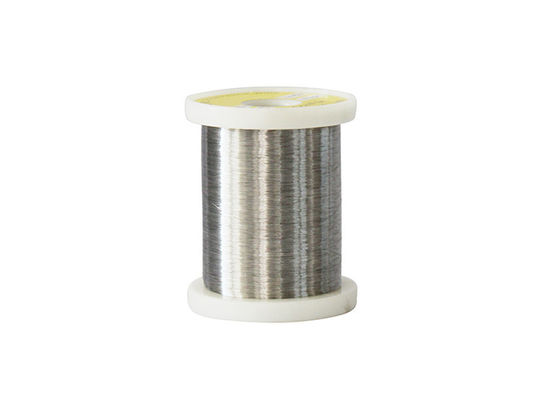

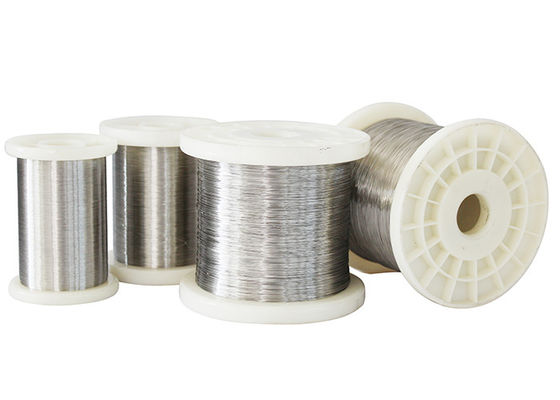

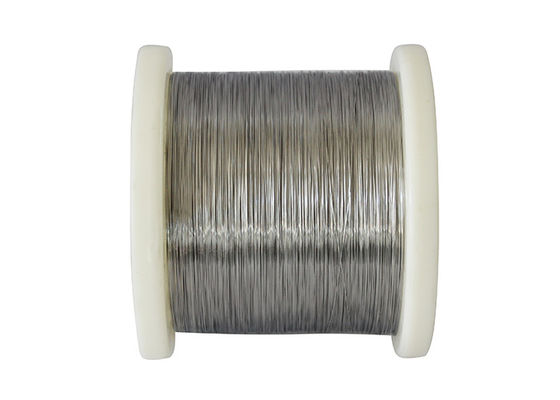

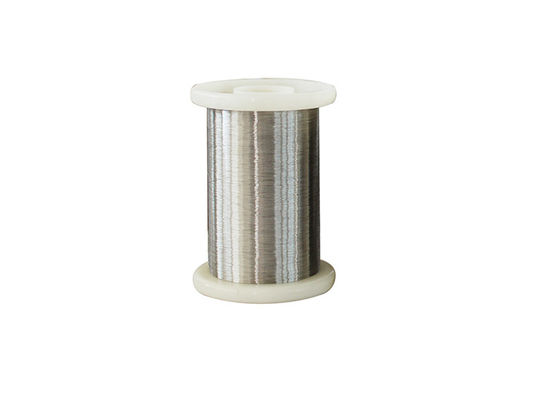

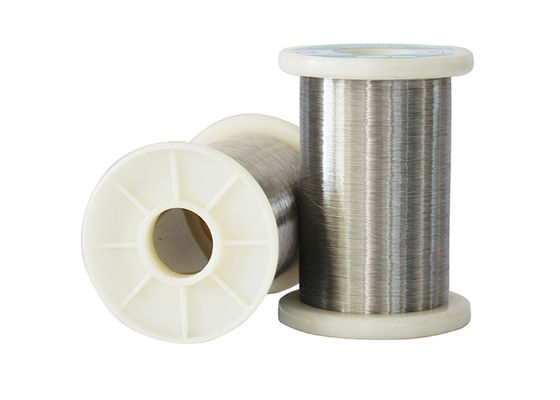

Type E Thermocouple Extension Wire with 32 to 392F Temperature Range and Ni-Cr Positive Leg for High Accuracy

Name: Type E Thermocouple Extension Wire with 32 to 392F Temperature Range and Ni-Cr Positive Leg for High Accuracy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Type E Thermocouple extension wire
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Type E Thermocouple extension wire
MOQ:	5
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Extension Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

32 To 392F (0 To 200C)

EMF Tolerance:

+/- 1.7C Or +/- 0.5%

Grade:

Extension Grade EPX/ENX

Positive:

Ni-Cr

Negative:

Cu-Ni

Other Name:

NiCr-Constantan Thermocouple

Special Limits Of Error:

+/- 1.0C Or 0.4%

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

EP Extension Grade Thermocouple Wire

0.1mm Thermocouple Extension

Type E Extension Grade Thermocouple Wire

Product Description

EP Extension Grade Thermocouple Wire

Thermocouple Extension Wire

Type E Thermocouple extension wire (EP--Ni-Cr, EN-Cu-Ni) offers stronger signal and higher accuracy than Type K or Type J at moderate temperature ranges up to 1,000°F. Its enhanced stability compared to Type K contributes to superior measurement precision.

Our manufacturing facility specializes in producing various thermocouple compensating wires including KX, NX, EX, JX, NC, TX, SC/RC, KCA, and KCB types for temperature measurement instruments and cables. All products comply with:

GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard)
IEC584-3 'Thermocouple part 3-compensating wire' (International standard)

These instrumentation cables feature construction similar to pair instrumentation cable but with specialized conductor materials designed for process temperature measurement. They maintain thermo-electric (emf) properties matching the connected thermocouples.

Thermocouple Wire Specifications

Code	Positive Leg	Negative Leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)

Compliance Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
E 230	MC 96.1	584-1/2/3	EN 60584 -1/2	4937.1041, EN 60584 - 1/2	EN 60584 -1/2 - NFC 42323 - NFC 42324	C 1602 - C 1610	3044

Working Temperature Range

Diameter (mm)	Long Term Working Temp (°C)	Short Term Working Temp (°C)
0.3, 0.5	350	450
0.8, 1.0, 1.2	450	550
1.6, 2.0	550	650
2.5	650	750
3.2	750	900

Detailed Technical Parameters

Thermocouple Type	Compensation Wire	Usage Classification	Temp (°C)	Standard EMF (μV)	Precision Grade Tolerance (μV)	Precision Grade Range (μV)	General Grade Tolerance (μV)
E (EX)	G	-25	-1,432	±81	-1,351~-1,513	±138	-1,294~-1,570
E (EX)	G	100	6,319	±81	6,238~6,400	±138	6,181~6,457
E (EX)	H	-25	-1,432	±81	-1,351~-1,513	±138	-1,294~-1,570
E (EX)	H	100	6,319	±81	6,238~6,400	±138	6,181~6,457
E (EX)	H	200	13,421	±81	13,340~13,502	±138	13,283~13,559

Size Range & Temperature Specifications

Wire Diameters: 0.10 to 8.0 mm

Type E Temperature Range:

Thermocouple grade wire: -454°F to 1600°F (-270°C to 870°C)
Extension wire: 32°F to 392°F (0°C to 200°C)

Type E Accuracy (whichever is greater):

Standard: ±1.7°C or ±0.5%
Special Limits of Error: ±1.0°C or ±0.4%
