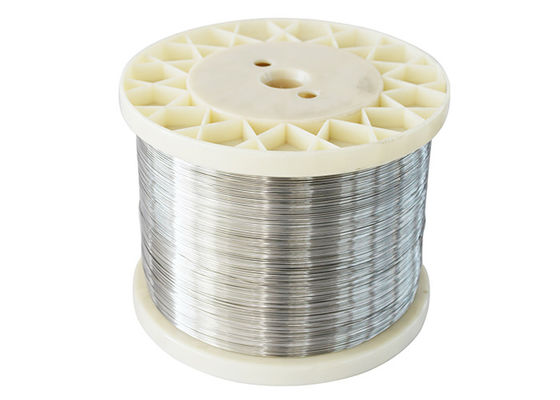

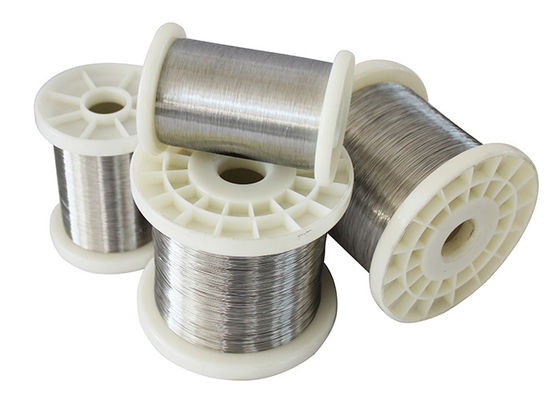

PTFE 0.5mm Platinum Type R Thermocouple Extension Wire

Name: PTFE 0.5mm Platinum Type R Thermocouple Extension Wire
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Type R Thermocouple extension wire
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Type R Thermocouple extension wire
MOQ:	1
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Thermocouple Extension Wire

Color:

Bright

Certificate:

ISO9001

Temperature Range:

-58 To 2700F (-50 To 1480C)

EMF Tolerance:

+/- 1.5C Or +/- .25%

Grade:

IEC854-1/3

Positive:

Platinum Rhodium

Negative:

Platinum

Special Limits Of Error:

+/- 0.6C Or 0.1%

Type:

RNX, RPX

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

300 tons per month

Highlight:

PTFE Thermocouple Extension Wire

0.5mm Thermocouple Wire

Type R Thermocouple Extension Wire

Product Description

PTFE 0.5mm Platinum Type R Thermocouple Extension Wire 0

Thermocouple extension wire

Type R Thermocouple extension wire (Platinum Rhodium -13% / Platinum):

The Type R thermocouple extension wire is used in very high temperature applications. It has a higher percentage of Rhodium than the Type S, which makes it more expensive. The Type R is very similar to the Type S in terms of performance. It is sometimes used in lower temperature applications because of its high accuracy and stability. Type R has a slightly higher output and improved stability over the type S.

Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.

Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.

Platinum rhodium thermocouple(S/B/R TYPE)

Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting.

Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Type R Temperature Range:

Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
Extension wire, 32 to 392F (0 to 200C)

Accuracy (whichever is greater):

Standard: +/- 1.5C or +/- .25%
Special Limits of Error: +/- 0.6C or 0.1%

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)
B	Platinum Rhodium-30%	Platinum Rhodium-6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium-10%	Platinum

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Size range

Wire: 0.1 to 8.0 mm.

Working temperature:

Diameter/mm	Type	Long time Working	Short period Working
Diameter/mm	Type	temperature/°C	temperature/°C
0.5	S	1300	1600
0.5	R	1300	1600
0.5	B	1600	1700

Chemical Composition

Conductor Name	Polarity	Code	Pt%	Rh%
Pt90Rh	Positive	SP	90	10
Pt	Negative	SN,RN	100	--
Pt87Rh	Positive	RP	87	13
Pt70Rh	Positive	BP	70	30
Pt94Rh	Negative	BN	94	6

Detailed Parameter of thermocouple extension wire

Thermocouple No. indexing	Compensation wire type	Usag Classification	Measuring junction temperature / ℃	standard EMF value/μV	Precision grade		General grade
Thermocouple No. indexing	Compensation wire type	Usag Classification	Measuring junction temperature / ℃	standard EMF value/μV	Tolerance μV	Thermal EMF range μV	Tolerance μV	Thermal EMF range μV
SorR	SC or RC	G	100	646	±30	616~676	±60	586~706
		H	100	646	-	-	±60	586~706
			200	1 1441	-	-		1.381~1 501

K	KX,KCA	G	-25	-968	±40	-924~-1 012	±80	-880~-1 056
	or KCB	G	100	4 096	±40	4 052~4 140	±80	4 008~4 184
		H	-25	-968	±40	-924~-1 012	±88	-880~-1 056
			100	4 096		4 052~4 140		4 008~4 184
			200	8 138		8 094~8 182		8 050~8 226
N	NX or NC	G	-25	-646	±43	-603~-689	±86	-560~-732
		G	100	2 774	±43	2 731~2 817	±86	2 688~2 860
		H	-25	-646	±43	-603~-690	±86	-560~-732
			100	2 774		2 731~2 817		2 688~2 860
			200	5 913		5 870~5 956		5 827~5 999
E	EX	G	-25	-1 432	±81	-1 351~-1 513	±138	-1 294~-1 570
		G	100	6 319	±81	6 238~ 6400	±138	6 181~6 457
		H	-25	-1 432	±81	-1 351~- 1513	±138	-1 294~-1 570
			100	6 319		6 238~6 400		6 181~6 457
			200	13 421		13 340~13 502		13 283~13 559
J	JX	G	-25	-1 239	±62	-1 177~-1 301	±123	-1 116~-1 362
		G	100	5 269	±62	5 207~5 331	±123	5 146~5 392
		H	-25	-1 239	±62	- 177~-1 301	±123	-1 116~-1 362
			100	5 269		5 207~5 331		5 146~5 392
			200	10 779		10 717~10 841		10 656~10 902
T	TX	G	-25	-940	±30	-910~-970	±60	-850~-1 000
		G	100	4 279	±30	4 249~4 309	±60	4 189~4 339
		H	-25	-940	±48	-892~-988	±90	-850~-1 030
			100	4 279		4231~4 327		4 189~4 369
			200
