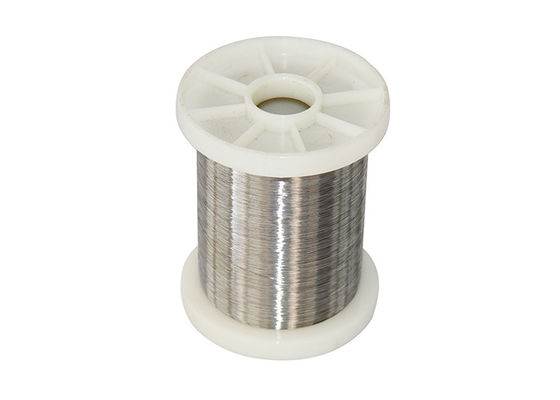

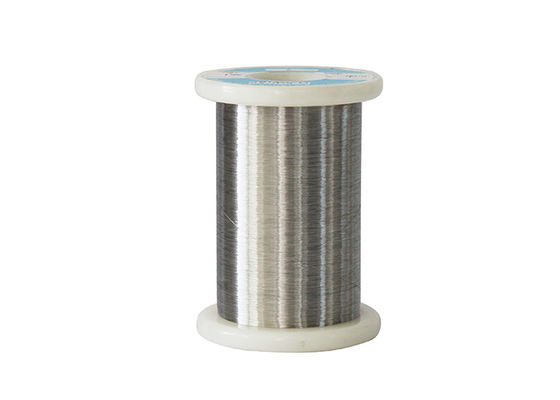

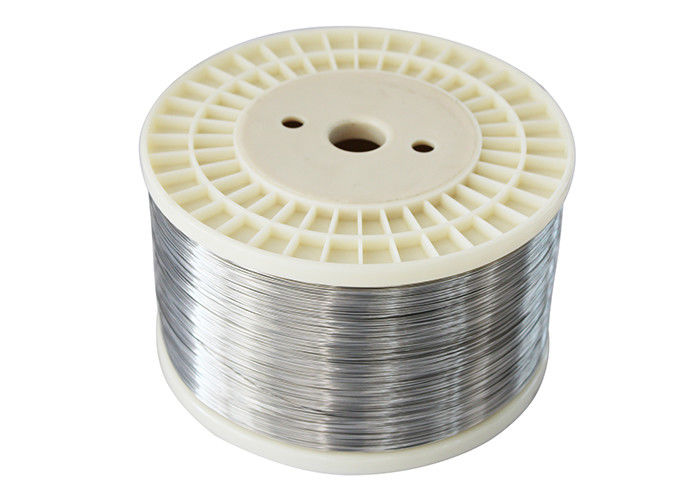

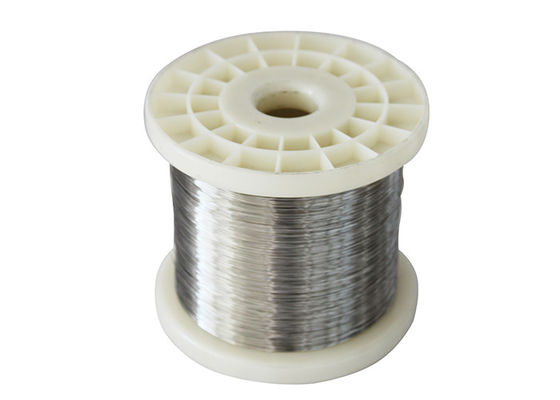

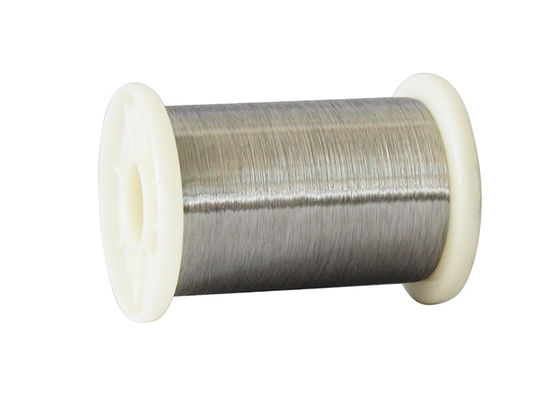

0.5mm Platinum Rhodium Type S Thermocouple Extension Wire

0.5mm Platinum Rhodium Type S Thermocouple Extension Wire

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Type S Thermocouple extension wire

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermocouple Extension Wire Color: Bright
Certificate: ISO9001 Temperature Range: 32 To 392F (0 To 200C)
EMF Tolerance: +/- 1.5C Or +/- .25% Grade: IEC854-1/3
Positive: Platinum Rhodium Negative: Platinum
Special Limits Of Error: +/- 0.6C Or 0.1% Type: SNX, SPX
High Light:

0.5mm Thermocouple Extension Wire

,

Platinum Rhodium Thermocouple Extension

,

Type S Thermocouple Extension Wire

Product Description

0.5mm Platinum Rhodium Type S Thermocouple Extension Wire 0





  • Thermocouple extension wire

Type S Thermocouple extension wire (Platinum Rhodium - 10% / Platinum):





The Type S thermcouple extension wire is used in very high temperature applications. It is commonly found in the BioTech and Pharmaceutical industries. It is sometimes used in lower temperature applications because of its high accuracy and stability. The type S is often used with a ceramic protection tube.



Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.

Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.

Platinum rhodium thermocouple(S/B/R TYPE)

Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting.

Insulation material: PVC, PTFE, FB or as per the customer's requirement.



Type S Temperature Range:

  • Maximum continuous operating temperature: up to 2,912F (1600C)
  • Short term use: up to 3,092F (1,700C)
  • Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
  • Extension wire, 32 to 392F (0 to 200C)


Accuracy (whichever is greater):

  • Standard: +/- 1.5C or +/- .25%
  • Special Limits of Error: +/- 0.6C or 0.1%



Consideration for bare wire type S thermocouple applications:



  • Heating - Gas burners for ovens
  • Cooling - Freezers
  • Engine protection - Temperatures and surface temperatures
  • High temperature control - Iron casting
  • The Type S can be used in inert and oxidizing atmospheres up to 2,912F (1600C) continuously and up 3,092F (1,700C) for short term use.

  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Type Long time Working Short period Working
temperature/°C temperature/°C
0.5 S 1300 1600
0.5 R 1300 1600
0.5 B 1600 1700





  • Chemical Composition
Conductor Name Polarity Code Pt% Rh%
Pt90Rh Positive SP 90 10
Pt Negative SN,RN 100 --
Pt87Rh Positive RP 87 13
Pt70Rh Positive BP 70 30
Pt94Rh Negative BN 94 6





Detailed Parameter of thermocouple extension wire

Thermocouple No. indexing Compensation wire type Usag Classification Measuring junction temperature / ℃ standard EMF value/μV Precision grade General grade
Tolerance μV Thermal EMF range μV Tolerance μV Thermal EMF range μV
SorR SC or RC G 100 646 ±30 616~676 ±60 586~706
H 100 646 - - ±60 586~706
200 1 1441 - - 1.381~1 501

K KX,KCA G -25 -968 ±40 -924~-1 012 ±80 -880~-1 056
or KCB 100 4 096 4 052~4 140 4 008~4 184
  H -25 -968 ±40 -924~-1 012 ±88 -880~-1 056
100 4 096 4 052~4 140 4 008~4 184
200 8 138 8 094~8 182 8 050~8 226
N NX or NC G -25 -646 ±43 -603~-689 ±86 -560~-732
100 2 774 2 731~2 817 2 688~2 860
H -25 -646 ±43 -603~-690 ±86 -560~-732
100 2 774 2 731~2 817 2 688~2 860
200 5 913 5 870~5 956 5 827~5 999
E EX G -25 -1 432 ±81 -1 351~-1 513 ±138 -1 294~-1 570
100 6 319 6 238~ 6400 6 181~6 457
H -25 -1 432 ±81 -1 351~- 1513 ±138 -1 294~-1 570
100 6 319 6 238~6 400 6 181~6 457
200 13 421 13 340~13 502 13 283~13 559
J JX G -25 -1 239 ±62 -1 177~-1 301 ±123 -1 116~-1 362
100 5 269 5 207~5 331 5 146~5 392
H -25 -1 239 ±62 - 177~-1 301 ±123 -1 116~-1 362
100 5 269 5 207~5 331 5 146~5 392
200 10 779 10 717~10 841 10 656~10 902
T TX G -25 -940 ±30 -910~-970 ±60 -850~-1 000
100 4 279 4 249~4 309 4 189~4 339
H -25 -940 ±48 -892~-988 ±90 -850~-1 030
100 4 279 4231~4 327 4 189~4 369
200





Type S Thermocouple Grade Wire
