Product Details
Place of Origin: China
Brand Name: DLX
Certification: CE,ROHS
Model Number: 0Cr25Al5
Payment & Shipping Terms
Minimum Order Quantity: 2kg
Packaging Details: Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Shape: |
Strip,wire,ribbon,plate,Wire Strip Round Ribbon |
Material: |
FeCrAl Alloy |
Surface: |
Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized |
Corrosion Resistance: |
Excellent |
Density: |
7.2 G/cm³ |
Elongation: |
≥25% |
Formability: |
Good |
Heat Treatment: |
Annealing |
Machinability: |
Good |
Magnetic Properties: |
Ferromagnetic |
Melting Point: |
1400-1450°C |
Oxidation Resistance: |
Excellent |
Tensile Strength: |
≥400 MPa |
Thermal Conductivity: |
14-20 W/mK |
Thermal Expansion: |
8.2-9.2 μm/mK |
Weldability: |
Good |
Yield Strength: |
≥200 MPa |
Shape: |
Strip,wire,ribbon,plate,Wire Strip Round Ribbon |
Material: |
FeCrAl Alloy |
Surface: |
Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized |
Corrosion Resistance: |
Excellent |
Density: |
7.2 G/cm³ |
Elongation: |
≥25% |
Formability: |
Good |
Heat Treatment: |
Annealing |
Machinability: |
Good |
Magnetic Properties: |
Ferromagnetic |
Melting Point: |
1400-1450°C |
Oxidation Resistance: |
Excellent |
Tensile Strength: |
≥400 MPa |
Thermal Conductivity: |
14-20 W/mK |
Thermal Expansion: |
8.2-9.2 μm/mK |
Weldability: |
Good |
Yield Strength: |
≥200 MPa |

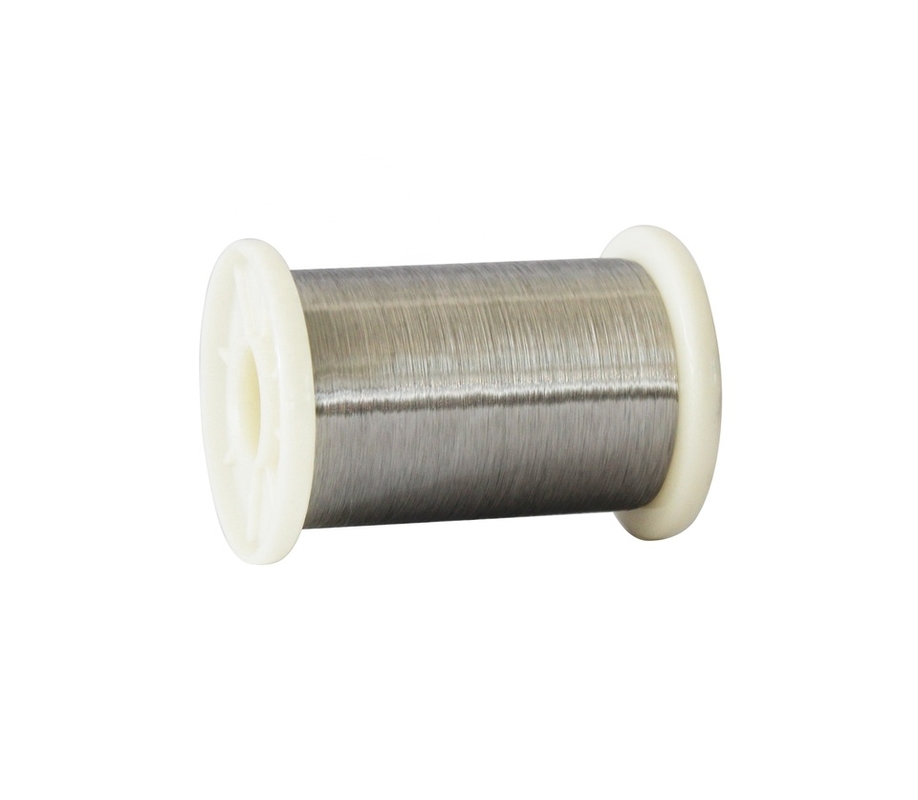

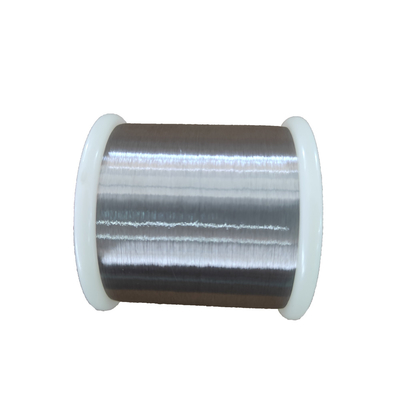

FECRAL alloy 0Cr25Al5 heating resistance wire
FeCrAl alloy has the characteristic of high resistivity, low temperature resistance coefficient, high operating temperature, good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.
In the automotive industry, the 0Cr25Al5 resistance wire is commonly used as heating elements for engine heaters, seat heaters, and air conditioning systems to provide a comfortable driving environment and ensure the normal operation of the engine.
The 0Cr25Al5 resistance wire has a high heating speed, capable of quickly heating the engine to the appropriate operating temperature, reducing wear and emissions during cold starts.
Utilizing this resistance wire as a heating element can effectively reduce energy consumption during car startups, lowering environmental impact and meeting energy-saving and environmental requirements.
The 0Cr25Al5 resistance wire can work stably at high temperatures, adapting to the high-temperature working environment of automotive engines and other components, ensuring system stability and reliability.
This resistance wire has good durability and stability, capable of maintaining efficient heating for a long time, reducing the risk of car failures and maintenance costs caused by component damage.
Overall, the application of 0Cr25Al5 resistance wire in the automotive industry makes it an important heating element, with advantages such as fast heating, energy-saving and environmentally friendly, high-temperature resistance, and reliability.
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
FeCrAl alloy series: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2, and etc.
