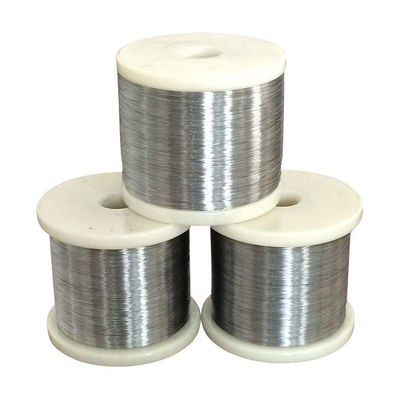

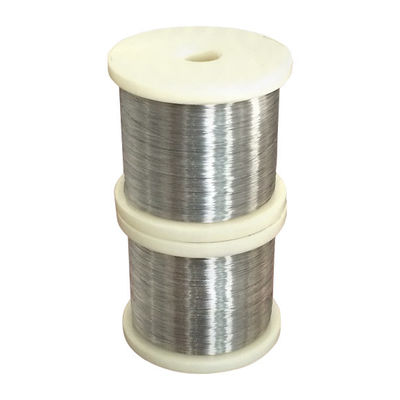

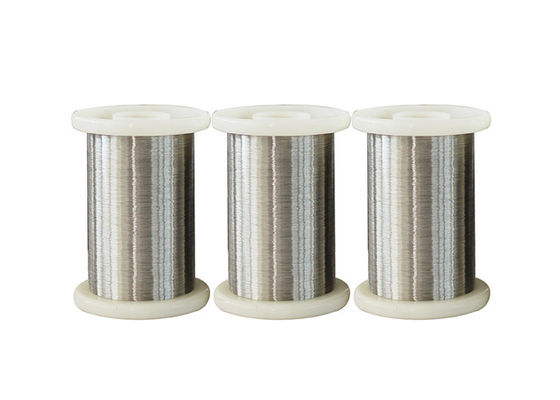

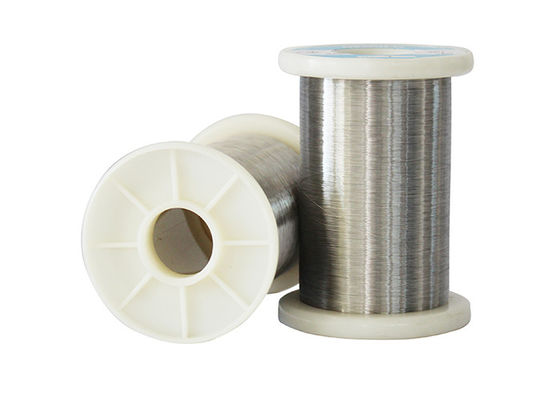

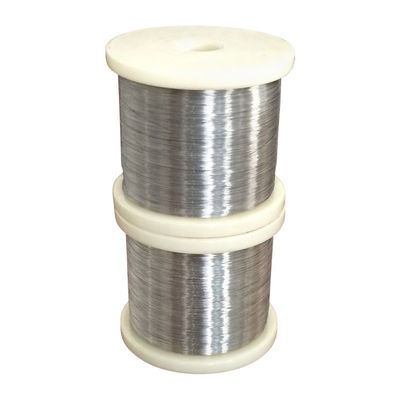

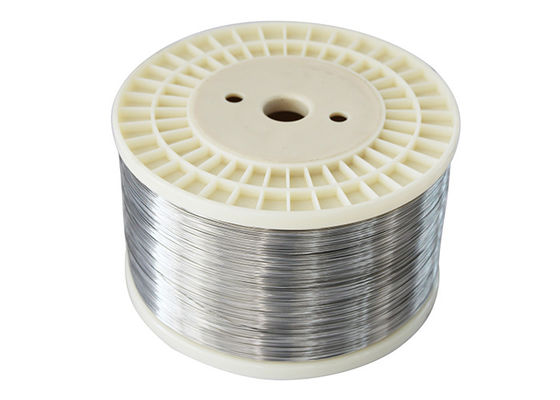

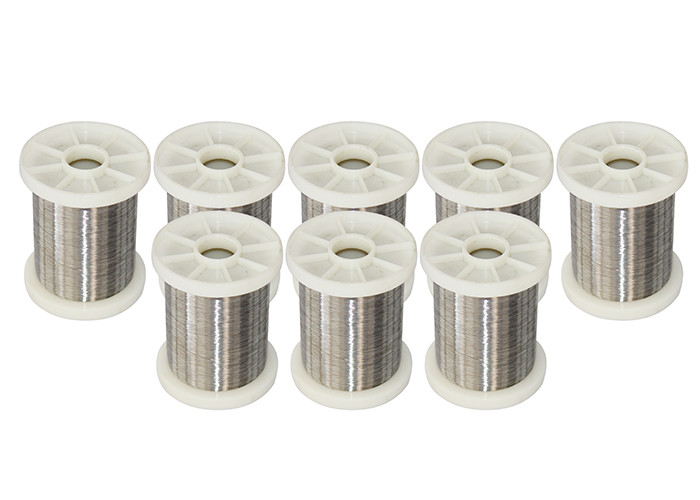

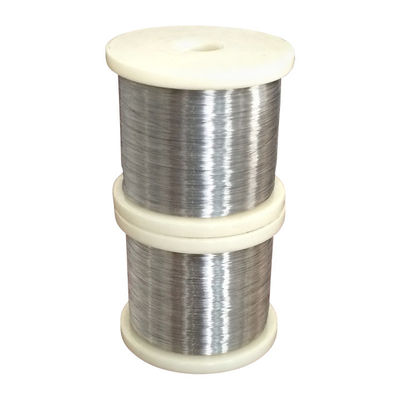

0Cr21Al6 Toasters 0.03mm Iron Chromium Aluminum Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | 0Cr21Al6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Ferrous Chromium Aluminum | Resistivity: | 1.42+/-0.05 |
|---|---|---|---|
| Tensile Strength: | 630-780MPA | Elongtation: | ≥12% |
| Application: | Heating, Resistivity | Condition: | Hard / Soft |
| Sureface: | Bright, Oxided, Acide | Delivery Time: | 7-20 Days |
| Maximum Temperature: | 1250℃ | Melting Point: | 1500℃ |
| Name: | Resistance Heating Wire | ||
| High Light: | 0Cr21Al6 Iron Chromium Aluminum Alloy,Toasters Iron Chromium Nickel,0.03mm Iron Chromium Aluminum Alloy |
||
Product Description
- FeCrAl Series
Iron-Chrome-Aluminum FeCrAl 0Cr21Al6 resistance heating alloy is one of the most commonly used Fe-Cr-Al alloy.
FeCrAl 0Cr21Al6 resistance heating alloy Applications
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.
Common Name: OhmAlloy142A
0Cr21Al6 Ferrous Chromium Aluminum FeCrAl resistance heating wire.
- Ferrous Chromium Aluminum alloy performance tables
| Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main Chemical composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Nb0.5 | Mo1.8-2.2 | |||||||
| Max. continuous service temp. of element(°C) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity at 20ºC(μΩ·m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Thermal conductivity(KJ/m·h·ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | ||
| Coefficient of lines expansion(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Continuous Servicetime(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
|
- The Form we could offer
|
||
|
||
|
||
|
||
|
||
