Electric Heating Resistance Fecral255 0cr25al5 Wire For Heating Element

Name: Electric Heating Resistance Fecral255 0cr25al5 Wire For Heating Element
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: 0Cr25Al5
Price: 6.00 USD
Availability: InStock

Product Details

Place of Origin: China Jiangsu

Brand Name: DLX

Certification: CE,ROHS

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 2kg

Packaging Details: Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm

Delivery Time: 5-20 Days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 500 tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Electric Heating Resistance Fecral255 0cr25al5 Wire, Heating Element Fecral255 0cr25al5 Wire, Heating Element Fecral255 Wire


Shape:	Strip,wire,ribbon,plate,Wire Strip Round Ribbon	Material:	FeCrAl Alloy
Surface:	Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized	Corrosion Resistance:	Excellent
Density:	7.2 G/cm³	Elongation:	≥25%
Formability:	Good	Heat Treatment:	Annealing
Machinability:	Good	Magnetic Properties:	Ferromagnetic
Melting Point:	1400-1450°C	Oxidation Resistance:	Excellent
Tensile Strength:	≥400 MPa	Thermal Conductivity:	14-20 W/mK
Thermal Expansion:	8.2-9.2 μm/mK	Weldability:	Good
Yield Strength:	≥200 MPa

Shape:	Strip,wire,ribbon,plate,Wire Strip Round Ribbon
Material:	FeCrAl Alloy
Surface:	Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized
Corrosion Resistance:	Excellent
Density:	7.2 G/cm³
Elongation:	≥25%
Formability:	Good
Heat Treatment:	Annealing
Machinability:	Good
Magnetic Properties:	Ferromagnetic
Melting Point:	1400-1450°C
Oxidation Resistance:	Excellent
Tensile Strength:	≥400 MPa
Thermal Conductivity:	14-20 W/mK
Thermal Expansion:	8.2-9.2 μm/mK
Weldability:	Good
Yield Strength:	≥200 MPa

Description

Electric Heating Resistance Fecral255 0cr25al5 Wire For Heating Element

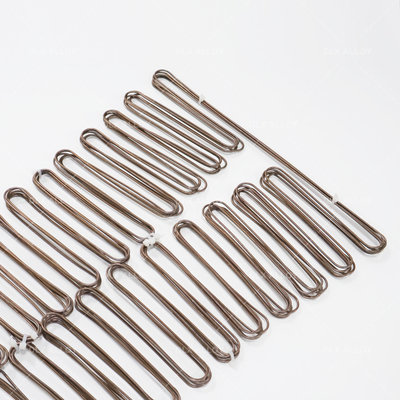

Electric Heating Resistance Fecral255 0cr25al5 Wire For Heating Element 0

FECRAL alloy 0Cr25Al5 heating resistance wire

FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.

It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.

In the realm of heating elements, the 0Cr25Al5 resistance wire is extensively employed. This iron-chromium-aluminum alloy wire boasts excellent properties, particularly in high-temperature environments, rendering it ubiquitous in various heating elements.
It finds widespread application in household appliances such as electric stoves, water heaters, and ovens, as well as in industrial heating equipment like furnaces and kilns. The 0Cr25Al5 resistance wire can rapidly heat up and maintain stable heating performance, making it an ideal choice for many heating applications.
The 0Cr25Al5 resistance wire also boasts a long lifespan and excellent corrosion resistance, allowing it to operate reliably even in harsh environments. It maintains high mechanical strength and resistivity at high temperatures, ensuring the stability and reliability of heating elements.

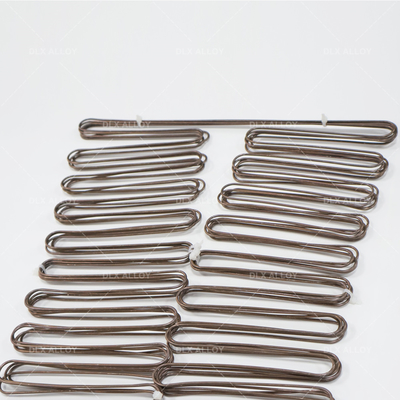

Electric Heating Resistance Fecral255 0cr25al5 Wire For Heating Element 1

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

Bar:10-50mm

FeCrAl alloy series: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2, and etc.

Alloy Nomenclature Performance		1Cr13AL4	0Cr25Al5	0Cr21AL6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical composition	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(°C)		950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ·m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m·h·ºC)		52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of lines expansion(α×10-6/ºC)		15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)		1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		>16	>12	>12	>12	>12	>12	>10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
continuous service time(Hours/ ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

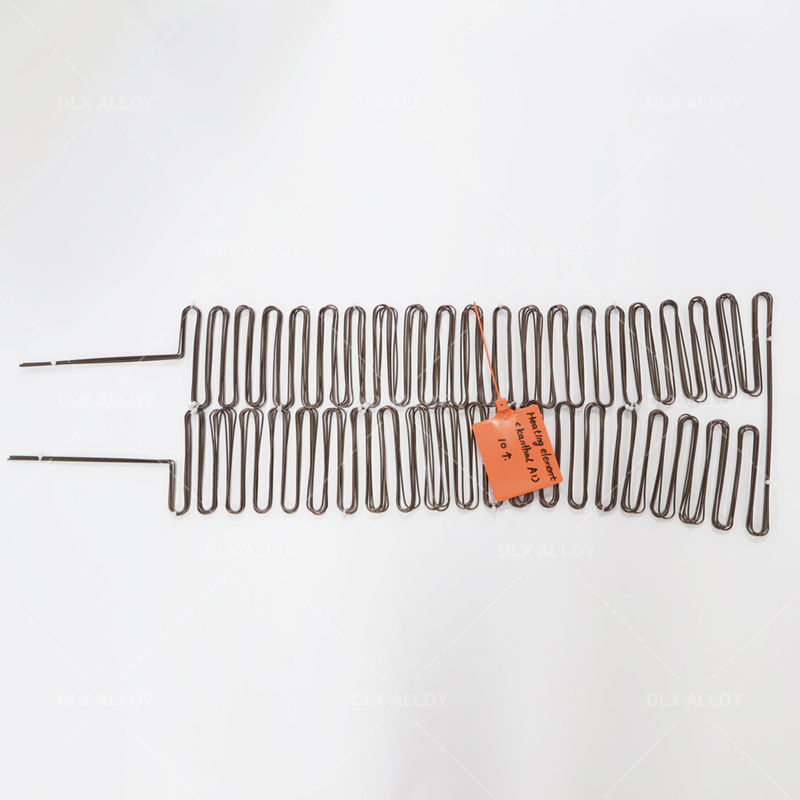

Electric Heating Resistance Fecral255 0cr25al5 Wire For Heating Element 2
