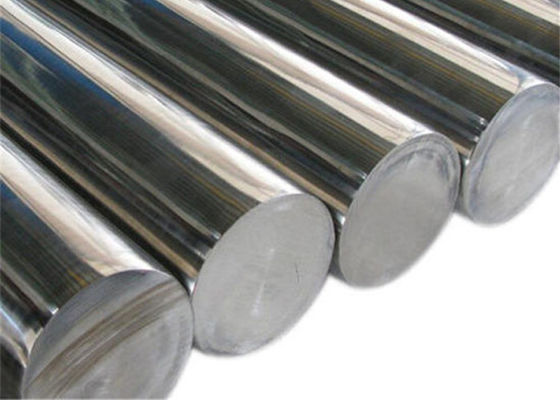

Weldability And Formability Resistance To Pitting And Crevice Corrosion Hastelloy C276 Rod

Place of Origin China
Brand Name DLX
Model Number Hastelloy C276 Bar
Minimum Order Quantity 5

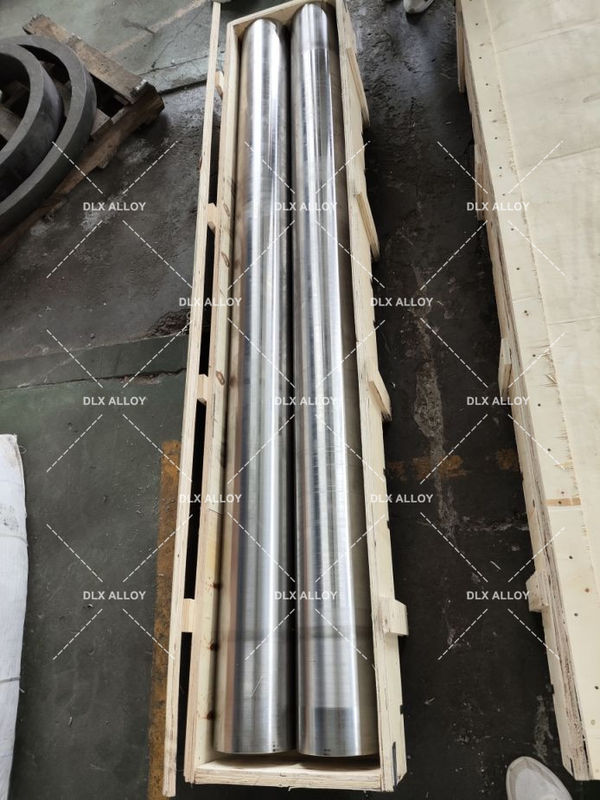

Packaging Details Hastelloy C276 Bar packed in wooden case
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Ni Cr Mo Elongation 30 %
Brinell Hardness HB ≤220 Density 8.89 G/cm3
Tensile Strength Rm N/mm² 760MPA Yieldstrength R P0. 2 N/mm² 345MPA
Electrical Resistivity(24℃)) 1.30 Microhm-m Thermal Conductivity(32℃) 9.4 W/m-K
Product Name Exceptional Corrosion Resistance ASTM B622 Hastelloy C276 Bar

Hastelloy C276 Rod


Hastelloy C276 Bar


8.89 g/cm3 Hastelloy Alloy

Leave a Message
Product Description

Weldability And Formability Resistance To Pitting And Crevice Corrosion Hastelloy C276 Rod 0


  • Nickel Based corrosion resistance Alloy

Hastelloy C276, also known as Hastelloy alloy, is a high-performance alloy composed of a unique Ni Mo Cr Fe alloy in the corrosion-resistant alloy series. Its performance is widely used in fields such as chemical industry, chemical engineering, medical devices, marine engineering, and nuclear engineering. Hastelloy C276 is a member of the Hastelloy family and has higher corrosion resistance compared to other members.

Hastelloy C276 has excellent processing performance and can be used for both hot and cold processing. In terms of hot working, this alloy can be melted and cast in the range of 1100 ℃ to 900 ℃. In terms of cold working, this alloy can be processed through processes such as forging, rolling, and cold drawing. In terms of welding, Hastelloy C276 can be welded using various welding methods such as tungsten inert gas arc welding and gas shielded welding. During the welding process, measures should be taken to reduce welding stress and avoid defects such as cracks.

  • Chemical Properties of Hastelloy C276 Bar

Hastelloy Alloy Ni Cr Co Mo Fe W Mn C V P S Si
C276 Balance 14.5-16.5 2.5 Max 15.0-17.0 4.0-7.0 3.0-4.5 1.0 Max 0.01 Max 0.35 Max 0.04 Max 0.03 Max 0.08 Max

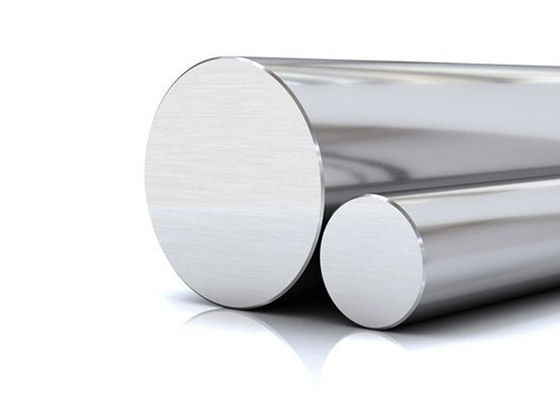

Weldability And Formability Resistance To Pitting And Crevice Corrosion Hastelloy C276 Rod 1

  • Application

Some typical applications are:

1. Petrochemical industry: This alloy is used to manufacture high-temperature and high-pressure equipment, such as reactors, heat exchangers, distillation towers, etc.

2. Aerospace: Hastelloy C276 is used to manufacture aircraft and rocket components as well as engine components.

3. Marine engineering: This alloy can resist the corrosion of corrosive substances such as saltwater and chlorides, and performs excellently at high temperatures and pressures.

4. Medical device: Hastelloy C276 has excellent biocompatibility and can be used to manufacture artificial joint, skin, and organ implants.

5. Nuclear engineering: This alloy can be used as a reactor component while resisting radioactive corrosion and radiation damage.


  • Type we could offer
ASTM Alloy Type UNS Misc./Shape
Hastelloy C276 Nickel N10276 Bar
Hastelloy C276 Nickel N10276 Plate
Hastelloy C276 Nickel N10276 Strip
Hastelloy C276 Nickel N10276 Sheet
Welded Pipe
Hastelloy C276 Nickel N10276 Welded Pipe
Seamless Tubing
Hastelloy C276 Nickel N10276 Seamless Tubing
Hastelloy C276 Nickel N10276 Fittings
Hastelloy C276 Nickel N10276 Wire
