Product Details
Place of Origin: China
Brand Name: DLX
Model Number: Hastelloy C276 Bar
Payment & Shipping Terms
Minimum Order Quantity: 5

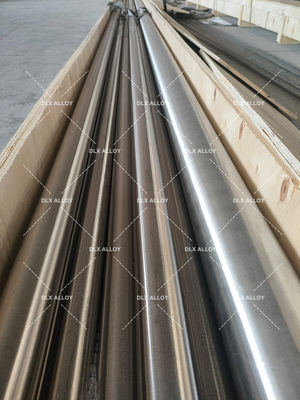

Packaging Details: Hastelloy C276 Bar packed in wooden case
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Ni Cr Mo |
Elongation: |
30 % |
Brinell Hardness HB: |
≤220 |
Density: |
8.89 G/cm3 |
Tensile Strength Rm N/mm²: |
760MPA |
Yieldstrength R P0. 2 N/mm²: |
345MPA |
Electrical Resistivity（24℃））: |
1.30 Microhm-m |
Thermal Conductivity（32℃）: |
9.4 W/m-K |
Product Name: |
Exceptional Corrosion Resistance ASTM B622 Hastelloy C276 Bar |
Material: |
Ni Cr Mo |
Elongation: |
30 % |
Brinell Hardness HB: |
≤220 |
Density: |
8.89 G/cm3 |
Tensile Strength Rm N/mm²: |
760MPA |
Yieldstrength R P0. 2 N/mm²: |
345MPA |
Electrical Resistivity（24℃））: |
1.30 Microhm-m |
Thermal Conductivity（32℃）: |
9.4 W/m-K |
Product Name: |
Exceptional Corrosion Resistance ASTM B622 Hastelloy C276 Bar |
The composition and characteristics of Hastelloy C276 are mainly composed of elements such as nickel, chromium, molybdenum, and iron. The nickel content is about 61.5%, the chromium content is about 14.5% to 16.5%, the molybdenum content is about 15% to 17%, and the iron content is about 5%.
This alloy has excellent corrosion resistance and high-temperature performance, and can be used for a long time in harsh corrosive environments. Its tensile strength and yield strength are high, and it has good plasticity and toughness. In addition, Hastelloy C276 also has excellent oxidation and reduction resistance, which can be used in various high-temperature corrosive environments.
| Hastelloy Alloy | Ni | Cr | Co | Mo | Fe | W | Mn | C | V | P | S | Si |
| C276 | Balance | 14.5-16.5 | 2.5 Max | 15.0-17.0 | 4.0-7.0 | 3.0-4.5 | 1.0 Max | 0.01 Max | 0.35 Max | 0.04 Max | 0.03 Max | 0.08 Max |
Some typical applications are:
1. Petrochemical industry: This alloy is used to manufacture high-temperature and high-pressure equipment, such as reactors, heat exchangers, distillation towers, etc.
2. Aerospace: Hastelloy C276 is used to manufacture aircraft and rocket components as well as engine components.
3. Marine engineering: This alloy can resist the corrosion of corrosive substances such as saltwater and chlorides, and performs excellently at high temperatures and pressures.
4. Medical device: Hastelloy C276 has excellent biocompatibility and can be used to manufacture artificial joint, skin, and organ implants.
5. Nuclear engineering: This alloy can be used as a reactor component while resisting radioactive corrosion and radiation damage.
| ASTM | Alloy | Type | UNS | Misc./Shape |
| ASTM B574 Bar |
Hastelloy C276 | Nickel | N10276 | Bar |
| ASTM B575 Plate |
Hastelloy C276 | Nickel | N10276 | Plate |
| ASTM B575 Strip |
Hastelloy C276 | Nickel | N10276 | Strip |
| ASTM B575 Sheet |
Hastelloy C276 | Nickel | N10276 | Sheet |
| ASTM B619 Welded Pipe |
Hastelloy C276 | Nickel | N10276 | Welded Pipe |
| ASTM B622 Seamless Tubing |
Hastelloy C276 | Nickel | N10276 | Seamless Tubing |
| ASTM B366 Fittings |
Hastelloy C276 | Nickel | N10276 | Fittings |
| ASTM B574 Wire |
Hastelloy C276 | Nickel | N10276 | Wire |
