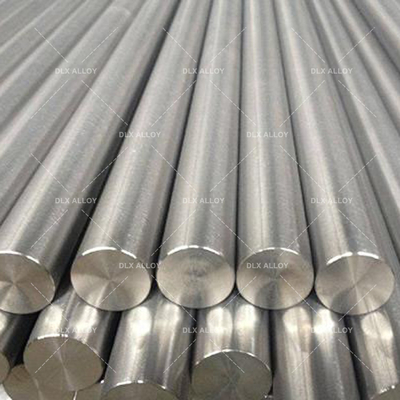

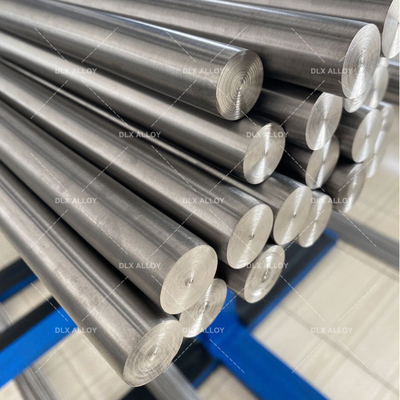

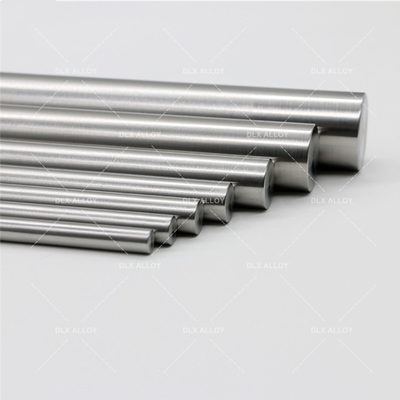

Nickel Alloy ASTM B572 UNS N06002 W.Nr 2.4665 Hastelloy X Rod Bar

Nickel Alloy ASTM B572 UNS N06002 W.Nr 2.4665 hastelloy X rod | Bar

• Nickel Based corrosion resistance Alloy

Hastelloy X is a nickel-based superalloy known for its high-temperature strength, oxidation resistance, and fabricability. Here is some information about Hastelloy X based on the provided details:

1. Chemical Composition Requirements of Hastelloy X:

• Ni (Nickel): Balance
• Cr (Chromium): 20.5-23.0%
• Fe (Iron): 17.0-20.0%
• Mo (Molybdenum): 8.0-10.0%
• Co (Cobalt): 0.5-2.5%
• W (Tungsten): 0.20-1.00%
• C (Carbon): 0.05-0.15%
• Mn (Manganese): ≤1.00%
• Si (Silicon): ≤1.00%
• P (Phosphorus): ≤0.040%
• S (Sulfur): ≤0.030%

2. Typical Physical Properties of Hastelloy X:

• Density: 8.22 g/cm³
• Melting Range: 1260-1355°C
• Specific Heat: 486 J/kg·K
• Thermal Conductivity: 9.1 W/m·K
• Electrical Resistivity: 1180 µΩ·m

3. Product Forms and Standards for Hastelloy X:

• Rod: ASTM B572
• Plate, Sheet, and Strip: ASTM B435, B906
• Seamless Pipe and Tube: ASTM B622
• Welded Pipe: ASTM B619, B775
• Welded Tube: ASTM B626, B751
• Welding Fitting: ASTM B366
• Billet and Bar for Reforging: ASTM B472

Hastelloy X is commonly used in high-temperature applications such as gas turbine engines, industrial furnace components, and structural components for aerospace and power generation industries. Its unique combination of properties makes it suitable for environments where high temperatures, oxidation, and corrosion resistance are critical requirements.

• Chemical Composition Requirements of Hastelloy X

  The Chemical Composition of Hastelloy X, %
  Ni	balance
  Cr	20.5-23.0
  Fe	17.0-20.0
  Mo	8.0-10.0
  Co	0.5-2.5
  W	0.20-1.00
  C	0.05-0.15
  Mn	≤1.00
  Si	≤1.00
  P	≤0.040
  S	≤0.030



• Typical Physical Properties

  Density	Melting Range	Specific Heat	Thermal Conductivity	Electrical Resistivity
  g/cm3	°C	J/kg.k	W/m.k	µΩ·m
  8.22	1260-1355	486	9.1	1180



• Product Forms and Standards



  Product Form	Standard
  Rod	ASTM B572
  Plate, sheet and strip	ASTM B435, B906
  Seamless pipe and tube	ASTM B622
  Welded pipe	ASTM B619, B775
  Welded tube	ASTM B626, B751
  Welding fitting	ASTM B366
  Billet and bar for reforging	ASTM B472
