High Ductility Seawater Pump Components Monel 400 Wires For Heat Exchanger

Name: High Ductility Seawater Pump Components Monel 400 Wires For Heat Exchanger
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Monel 400
Price: 40.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Monel 400
MOQ:	5
Price:	$30-$50
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel Copper

Nickel(Min):

63%

Curie Temperature:

21-49℃

Density:

8.05g/cm3

Application:

Anti-corrosion

Condition:

Hard / Soft

Sureface:

Bright,Oxided

Delivery Time:

7-50 Days

Melting Point:

1288-1343℃

Name:

Monel 400 Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag for monel 400 wire

Supply Ability:

500 tons per month

Highlight:

Seawater Pump Monel 400 Wires

Heat Exchanger Monel 400 Wires

Seawater Pump Monel Alloy Wires

Product Description

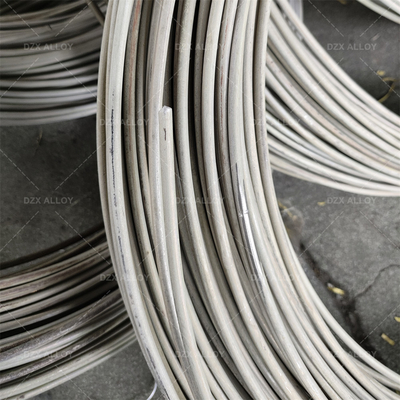

High Ductility Seawater Pump Components Monel 400 Wires For Heat Exchanger 0

High Ductility Seawater Pump Components Monel 400 Wires For Heat Exchanger

Monel Series

Monel 400 is a corrosion-resistant alloy with the largest usage, the widest range of applications, and excellent comprehensive performance. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, and also has excellent corrosion resistance to hot concentrated alkaline solution. It is also resistant to corrosion from neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracks and has good cutting performance.

Monel 400 is mainly used in fields such as chemistry, petrochemicals, and ocean development. It can be used to manufacture various heat exchange equipment, boiler feedwater heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reactors, shafts, etc.

Chemical Properties of Monel 400

Ni	Cu	Al	Ti	C	Mn	Fe	S	Si
63.0-70.0	27-33	2.30-3.15	0.35-0.85	0.25 max	1.5 max	2.0 max	0.01 max	0.50 max

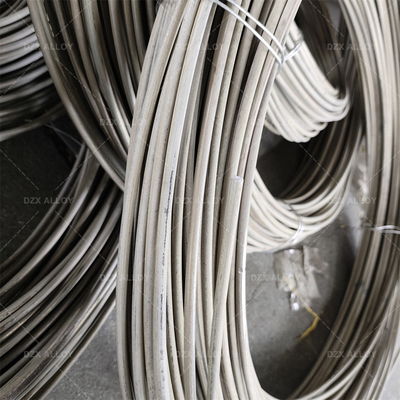

High Ductility Seawater Pump Components Monel 400 Wires For Heat Exchanger 1

Mechanical Properties

Product Form	Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness
Rod & Bar	Hot-Finished/Aged	140-190	100-150	30-20	27-38 HRC
Rod & Bar	Hot Finished/Annealed	90-110	40-60	45-25	75-90 HRB
Rod & Bar	Hot Finished/Annealed/Aged	130-165	85-120	35-20	24-35 HRC
Rod & Bar	Cold-Drawn/Aged	135-185	95-160	30-15	25-41 HRC
Rod & Bar	Cold-Drawn/Annealed/Aged	130-190	85-120	30-20	24-35 HRC
Plate	ot-Finished/Aged	140-180	100-135	30-20	27-37 HRC
Sheet	Cold-Rolled/Annealed	90-105	40-65	45-25	85 HRB Max

Application

1. Marine Engineering: Monel 400 wire is commonly used in the manufacturing of marine engineering equipment such as seawater desalination units, seawater pumps, and offshore oil pipelines, highly favored for its resistance to seawater corrosion.

2. Chemical Industry: Due to its corrosion resistance to various chemicals, Monel 400 wire is widely employed in the chemical industry for manufacturing chemical reactors, piping for acidic environments, and chemical equipment.

3. Aerospace Industry: Monel 400 wire is also utilized in the aerospace sector for fabricating components of aircraft and spacecraft, including engine parts, structural brackets, and hydraulic systems.

4. Marine Vessels: In the marine vessel sector, Monel 400 wire finds extensive use in the manufacturing of ship equipment and components such as hull structures, marine valves, and pipe fittings, to withstand corrosion from seawater and the marine environment.

5. Chemical Processing: Monel 400 wire is also commonly used in chemical processing and fine chemical industries for manufacturing corrosion-resistant equipment and piping systems, including chlorine processing units and petroleum processing equipment.

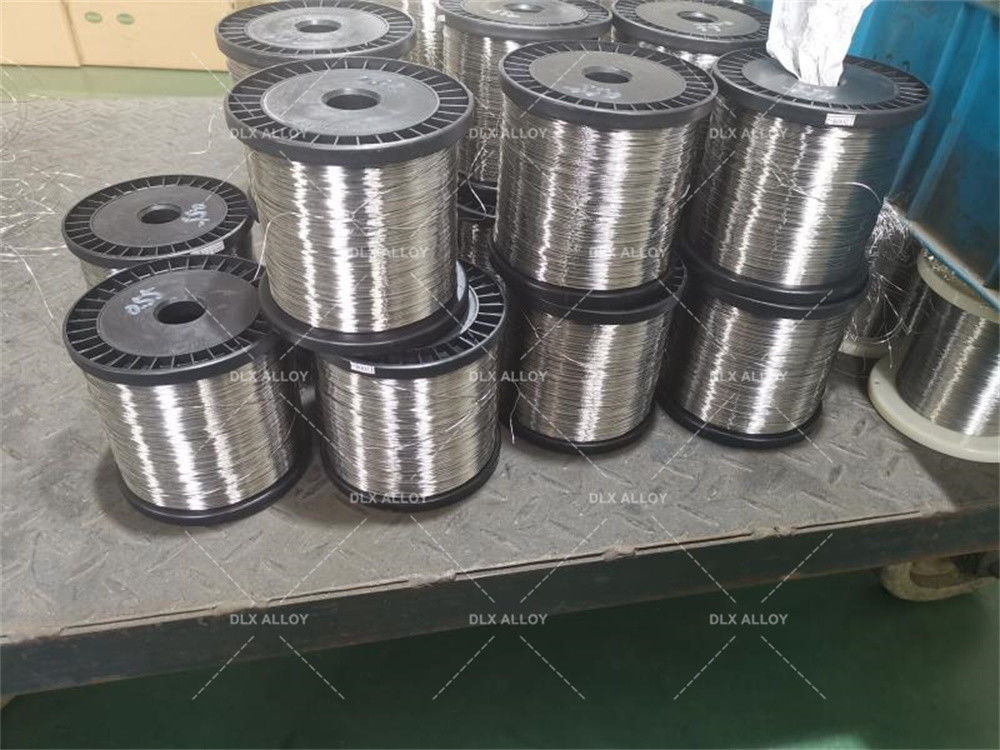

High Ductility Seawater Pump Components Monel 400 Wires For Heat Exchanger 2
