Acid Proof Spring Wire Monel 400 Custom Diameter Soft Annealed Offshore Valves

Changzhou DLX Alloy supplies precision-engineered Monel 400 Spring Wire specifically drawn and heat-treated for critical offshore valve assemblies. Combining natural resistance to chloride pitting, hydrogen embrittlement, and non-oxidizing acids with tailored soft-annealed ductility, our wire delivers consistent coiling performance and long-term elastic stability under severe marine pressure.

Offshore oil & gas extraction and marine process valves operate under some of the most aggressive environmental conditions in industrial engineering. Valve springs, seal energizers, and wave springs require alloy materials that resist both chemical corrosion and mechanical fatigue without catastrophic failure.

Our Acid Proof Monel 400 Spring Wire is cold drawn from ultra-refined nickel-copper ingots and continuously processed through controlled-atmosphere bright annealing. By maintaining strict chemistry control with optimal nickel-to-copper ratios and low residual impurities, we ensure that every spool provides uniform tensile strength, excellent cold-forming elasticity, and non-magnetic stability across cryogenic to moderate high-temperature environments.

• Solid-solution single-phase microstructure prevents intergranular stress corrosion cracking (SCC) in fast-flowing seawater and sour gas (H₂S+CO₂) environments.
• Immune to chloride ion pitting and cavitation, making it the premier choice over conventional austenitic stainless steels for subsea choke valves and marine manifolds.
• Superior endurance in hydrofluoric and non-oxidizing mineral acid streams.

• Continuous strand annealing delivers consistent elongation, controlled hardness (90–120 HB equivalent), and zero surface decarburization.
• Eliminates internal drawing stresses, enabling trouble-free spring coiling, stamping, and micro-forming without micro-cracking.
• Diameter tolerances calibrated down to ±0.005 mm for automated precision coiling machines.

• Retains high shear modulus and load stability under cyclic valve operation.
• Outstanding toughness across broad operating temperature windows, preventing brittle fracture in deepwater subsea applications.

• Subsea & Offshore Valve Components: Actuator springs, check valve coil springs, relief valve internal mechanisms, and stem packing energizers.
• Marine & Naval Hardware: Marine pump shaft seals, saltwater valve trim, downhole safety valve springs, and offshore piping fasteners.
• Chemical & Petrochemical Processing: Flowmeter springs, hydrofluoric acid metering units, chlorination systems, and brine filtration screens.
• Sour Gas Wellhead Equipment: Choke trim springs and downhole pressure regulation assemblies requiring NACE-compliant sour gas resistance.

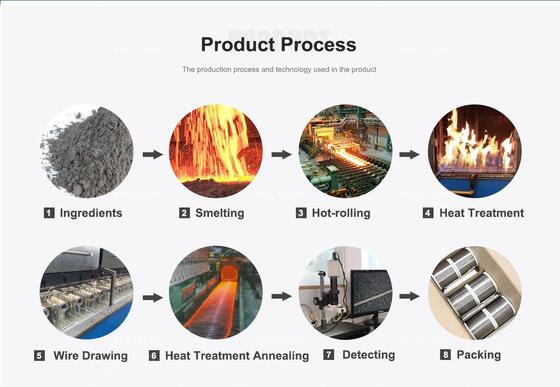

• Direct Metallurgical Manufacturer: With a dedicated monthly production capacity of 1,200 tons, we provide end-to-end quality tracking from vacuum induction melting to precision wire drawing and spooling.
• Precision Tolerance & Non-Destructive Testing: Every batch undergoes continuous laser micrometer monitoring, eddy current surface flaw detection, and 100% PMI chemical composition verification.
• Custom Diameter & Dynamic MOQ Flexibility: We support custom spooled, coiled, or straightened cut-to-length orders with dynamic minimum order quantities adjusted to your engineering prototype and mass production stages.
• Full Mill Traceability: Supplied with complete material test certificates covering mechanical properties, actual chemical heat analysis, and dimensional conformity.

A: While 316L stainless steel is susceptible to chloride stress corrosion cracking and pitting in stagnant seawater or subsea crevices, Monel 400 provides a homogeneous nickel-copper solid solution that is practically immune to chloride attack and cavitation. It guarantees prolonged spring service life without sudden brittle failure.

A: Soft annealed wire provides maximum ductility and uniform grain structure, which is ideal for manufacturers coiling intricate compression, extension, or torsion springs. After coiling, the springs can be cold-worked or customized according to specific load-deflection profiles.

A: We manufacture custom diameters from 0.05 mm ultra-fine wire up to 12.0 mm heavy-duty wire. Dimensional tolerances are held strictly within micro-precision thresholds to prevent jam-ups on CNC spring formers.

A: Our wire drawing line employs multi-stage diamond dies and closed-loop ultrasonic cleaning, followed by in-line surface testing to ensure bright, smooth, oxide-free surfaces with zero burrs or draw marks.
