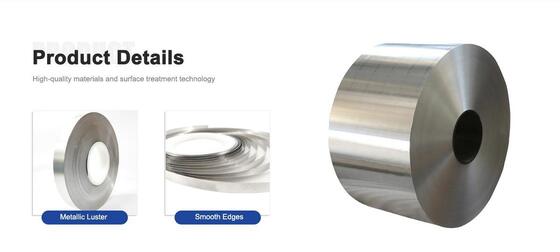

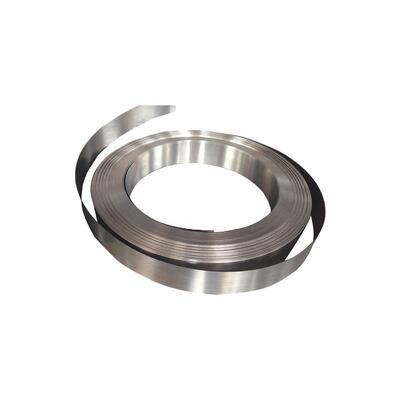

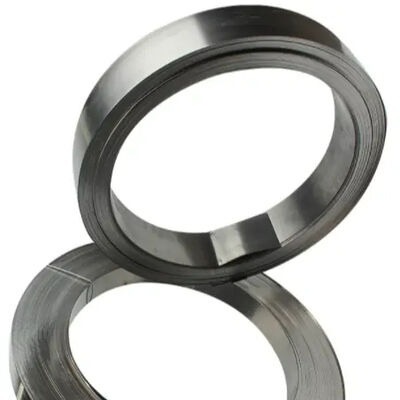

Ultra-Precision Nickel Alloy Strip Monel 400 0.1mm Foil for Valve Diaphragm

Engineered for critical fluid control and sensitive pressure actuation, this 0.1mm Monel 400 precision strip provides an optimal balance of mechanical ductility, elastic stability, and severe environmental durability. Cold-rolled under tension-controlled multi-roll precision mills, our ultra-thin foil coils eliminate micro-cracking during deep drawing and stamping operations, ensuring long-term burst resistance and accurate deflection response in corrosive valve assemblies.

Valve diaphragms operating in marine, chemical, and oilfield environments face continuous cyclic stress combined with aggressive chemical exposure. Ordinary cold-rolled sheets frequently suffer from grain coarsening and anisotropic springback, causing premature fatigue rupture.

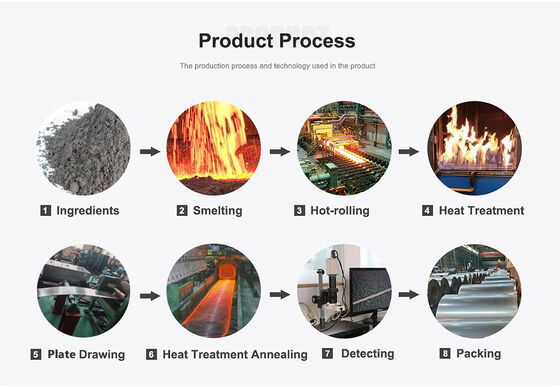

Our Monel 400 0.1mm ultra-thin foil coil is produced through vacuum induction melting followed by continuous tension annealing. This refined metallurgy guarantees a fully homogeneous, fine equiaxed grain structure (Grain Size ≥ Grade 8.5), delivering isotropic mechanical properties. Whether fabricated into flat, convoluted, or corrugated diaphragms, the material ensures consistent actuation repeatability, zero hysteresis loss, and superior service longevity under fluctuating pressures.

• Ultra-Tight Dimensional Uniformity: Advanced online thickness laser gauges ensure strict cross-sectional consistency across the entire coil length, avoiding uneven stress concentration during dynamic flexing.
• Superior Deep Drawing Formability: Controlled elongation rates (≥ 30% in annealed condition) allow complex convolution forming without edge splitting, micro-void formation, or surface orange-peel defects.
• Exceptional Acid and Marine Corrosion Resistance: Robust immunity to chloride stress corrosion cracking, non-oxidizing acids (hydrofluoric, sulfuric, hydrochloric), seawater pitting, and caustic alkali solutions.
• High Dynamic Fatigue Strength: Specially micro-alloyed and cleanly degassed to minimize non-metallic inclusions, maximizing cyclic flexing life beyond millions of operational actuations.
• Defect-Free Surface Integrity: Bright annealed in high-purity protective hydrogen atmosphere, presenting a mirror/matte clean finish free of scratches, pinholes, oil stains, or oxidation scale.

• Chemical Processing Valves: Diaphragms for flow control valves handling hydrofluoric acid, sulfuric acid alkylation units, and chlorinated solvent streams.
• Marine & Offshore Regulators: Actuator diaphragms in subsea choke valves, seawater desalinization systems, and naval pneumatic controls.
• Oil & Gas Wellhead Equipment: Safety relief valves, mud pump dampener diaphragms, and sour gas (H2S-containing) pressure transmitters.
• Sanitary & Food Grade Processing: Corrosion-proof barrier diaphragms for pharmaceutical valves and caustic CIP (Clean-in-Place) equipment.
• Aerospace & Cryogenic Instrumentation: Extreme temperature pressure sensor diaphragms operating reliably from cryogenic levels up to 450°C.

• Integrated Metallurgical Capability: Over two decades of specialized expertise in nickel-based and precision resistance alloys, operating from advanced melting, hot forging, cold rolling, to precision slitting.
• Robust Production Capacity: Unified manufacturing footprint maintaining a stable monthly capacity of 1,200 metric tons, guaranteeing prompt fulfillment for volume contracts and scheduled OEM shipments.
• Strict In-House Quality Assurance: 100% full-process traceability with comprehensive eddy current testing, metallurgical grain structure analysis, dimensional laser profiling, and full lot chemical spectrographic validation.
• Customized Slitting & Edge Dressing: Custom coil width slitting down to 3.0mm with round, deburred, or safety edges, packaged on wooden skids with multi-layer moisture-proof sealing for sea and air freight.
• Flexible B2B Commercial Terms: Dynamic MOQ configured according to precision foil gauge and slitting width requirements, supported by dedicated engineering consultation.

 A1: While stainless steels (such as 316L) are prone to severe chloride pitting and stress corrosion cracking in marine or acidic media, Monel 400 offers solid-solution nickel-copper chemistry that remains completely immune to chloride cracking. Furthermore, Monel 400 retains superior elastic consistency and fatigue resilience across wide temperature fluctuations from sub-zero to 450°C.

A2: DLX utilizes advanced multi-roll precision finishing mills equipped with real-time feedback thickness gauges. For 0.1mm Monel 400 strip, we consistently achieve a tolerance of ±0.002 mm to ±0.003 mm, ensuring precise actuation pressure thresholds in finished diaphragm assemblies.

A3: We implement precision hydrogen-atmosphere continuous annealing to produce an extra-fine, equiaxed grain structure (ASTM equivalent Grain Size 8.5–10) with an elongation rate exceeding 30%. This eliminates internal tensile residual stress, minimizing earing and edge micro-cracking during high-speed deep drawing or hydraulic forming.

A4: Coils are carefully wrapped in anti-corrosion VCI paper, vacuum-sealed with silica desiccant in poly-bags, and secured in export-grade wooden cases to prevent coil ovalization and surface oxidation. MOQ is dynamically tailored to specific slitting widths and thickness parameters to support both specialized prototype development and large-scale industrial runs.
