0.28MM N04400 2.4360 Nickel Alloy Wire Monel 400 Wire

Place of Origin China
Brand Name DLX
Model Number Monel 400
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag for monel 400 wire
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nickel Copper Nickel(Min) 63%
Curie Temperature 21-49℃ Density 8.05g/cm3
Application Anti-corrosion Condition Hard / Soft
Sureface Bright,Oxided Delivery Time 7-50 Days
Melting Point 1288-1343℃ Name Monel 400 Wire
Highlight

2.4360 Nickel Alloy Wire

,

N04400 Nickel Alloy Wire

,

0.28MM Monel 400 Wire

Leave a Message
Product Description

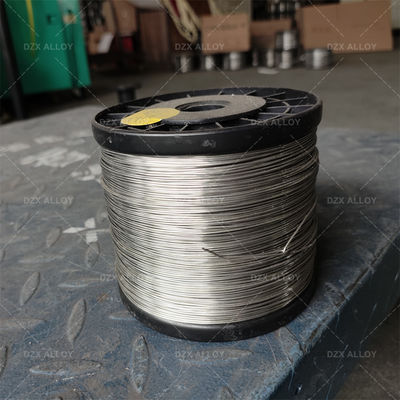

0.28MM N04400 2.4360 Nickel Alloy Wire Monel 400 Wire 0

0.28MM N04400 2.4360 Nickel Alloy Wire Monel 400 Wire

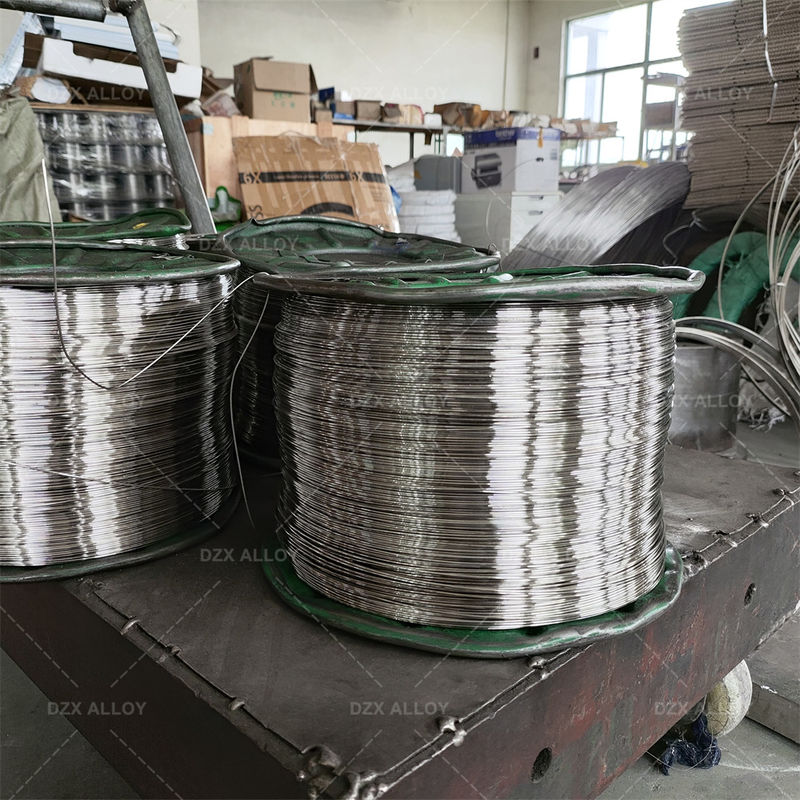

0.28MM N04400 2.4360 Nickel Alloy Wire Monel 400 Wire 1


  • Monel Series

Monel 400 wire is a premium alloy known for its exceptional corrosion resistance and outstanding performance in challenging environments. Composed primarily of nickel and copper, with small amounts of iron, manganese, carbon, and silicon, Monel 400 wire offers a unique combination of properties that make it highly sought after in various industries.


DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Key Features of Monel 400 Wire:

1. Superior Corrosion Resistance: Monel 400 wire exhibits remarkable resistance to a wide range of corrosive media, including seawater, acids, alkalis, and brines.

2. High Strength and Toughness: Despite its excellent corrosion resistance, Monel 400 wire retains impressive mechanical strength and toughness.

3. Wide Temperature Range: Monel 400 wire maintains its mechanical properties and corrosion resistance over a broad temperature range, from cryogenic temperatures up to around 1000°C (1832°F).

4. Excellent Ductility and Formability: Monel 400 wire possesses excellent ductility, allowing for easy forming and shaping into desired configurations.

5. Low Magnetic Permeability: Monel 400 wire exhibits low magnetic permeability, making it useful in applications where magnetic interference needs to be minimized.




  • Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
