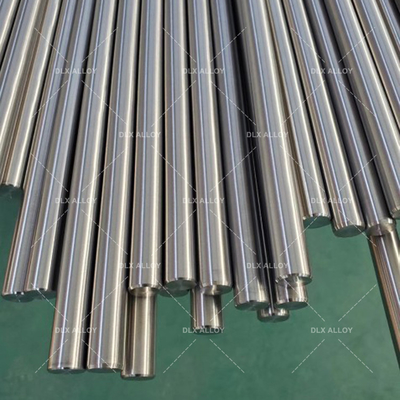

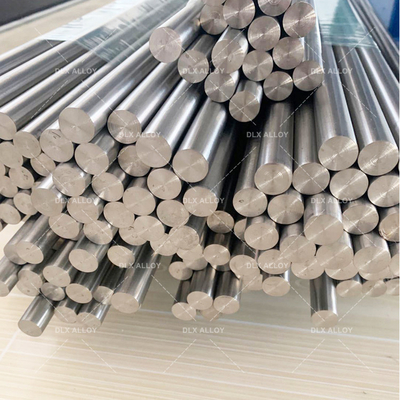

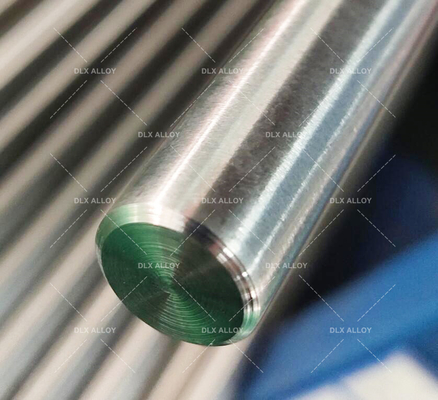

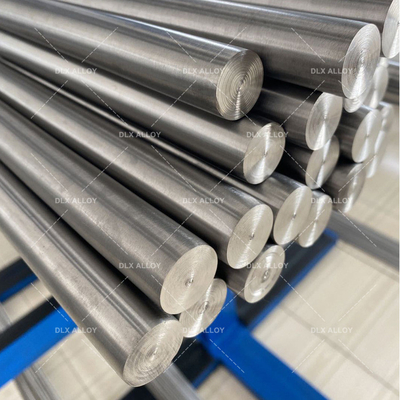

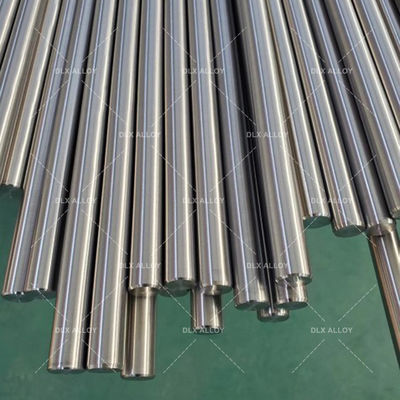

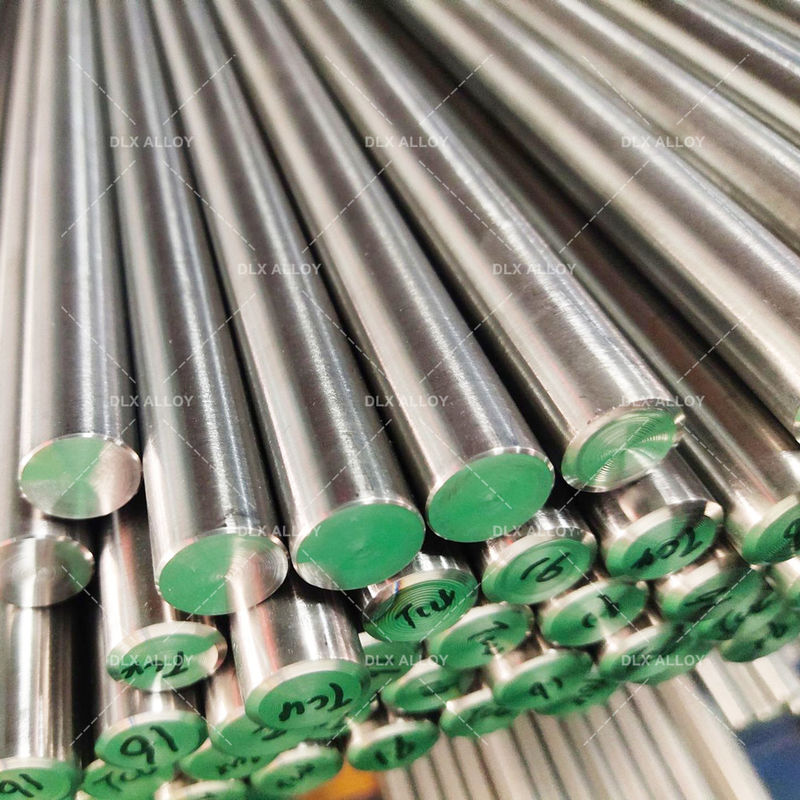

Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si

  • Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si
  • Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si
  • Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si
  • Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si
  • Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si
  • Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si
Place of Origin China
Brand Name DLX
Certification CE,ROHS
Model Number Monel 400 rod
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 7-50 Days Material Nickel Copper
Nickel(Min) 63% Curie Temperature 21-49℃
Density 8.05g/cm3 Application Anti-corrosion
Condition Hard / Soft Sureface Bright,Oxided
Melting Point 1288-1343℃ Name Monel K500 Tube
Highlight

Monel 400 Rod

,

Al Monel 400 Rod

,

Nickel Monel 400 Alloy Round Bar
Leave a Message
Product Description

Monel 400 rod Nickel Copper Alloy with Al Ti C Mn Fe S Si



Monel 400 rod is a nickel copper alloy pipe with excellent corrosion resistance, particularly suitable for seawater and saline environments. It also has good mechanical properties and high-temperature resistance, so it is commonly used in fields such as chemical engineering, ocean engineering, shipbuilding, etc.

Name

Monel 400(N04400)
Monel K500(N05500)


Chemmical

Composition wt.%
Ni
63.0-67.0
63.0-67.0
Fe
≤2.00
≤2.00
C
≤0.03
≤0.25
Mn
≤1.50
≤0.15
P
-
-
Si
≤0.50
≤1.00
Cu
28.0-34.0
margin
S
-
≤0.01
Cr
-
-
Al
-
2.0-4.0
TI
-
0.25-1.00
Others
-
-



Product name
High Strength NO4400 Nickel Alloy Rod Monel 400 Nickel Bar
Standard
ASTM,ASME
Diameter
3-480mm or customized
Length
3000mm,4000mm,5800mm,6000mm,12000mm, or as required
Density
8.9cm3
Nickel Content
58%
Lead Time
7-15 working days after the receipt of 30% deposit
Payment Terms
30% TT for deposit,70% TT/LC at sight balance before shipment
Price terms
FOB EXW CIF CFR
Packing
Wooden Pallet or according to customer's requirements

Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si 0Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si 1





  • Application

. Sour-gas service applications
. Oil and gas production safety lifts and valves
. Oil-well tools and instruments like drill collars
. Oil well industry
. Doctor blades and scrapers
. Chains, cables, springs, valve trim, fasteners for marine service
. Pump shafts and impellers in marine service

Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si 2

Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max

Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si 3Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si 4Monel 400 Rod Nickel Copper Alloy With Al Ti C Mn Fe S Si 5

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
