High Resistivity FeCrAl 0Cr25Al5 Iron Chromium Aluminium Electric Heating Wire

Name: High Resistivity FeCrAl 0Cr25Al5 Iron Chromium Aluminium Electric Heating Wire
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: heating electric stove wire
Price: 6.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	heating electric stove wire
MOQ:	2kg
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Application:

Heating,Industry,furnace Heating Wire,heater

Shape:

Strip,wire,ribbon,plate,Wire Strip Round Ribbon

Material:

FeCrAl Alloy

Chemical Composition:

Fe Cr Al,Ferro Chrome Aluminium,Cr,Ni,Iron-chromium-aluminum

Dimensions:

Specifications,0.05-12mm,0.01mm-10mm,0.5mm,Ocr25al5 Resistance Strip

Surface:

Bright,bright & Smooth,Bright And Smooth,Polished,acid White/oxidized

Corrosion Resistance:

Excellent

Density:

7.2 G/cm³

Elongation:

≥25%

Formability:

Good

Heat Treatment:

Annealing

Machinability:

Good

Magnetic Properties:

Ferromagnetic

Melting Point:

1400-1450°C

Oxidation Resistance:

Excellent

Tensile Strength:

≥400 MPa

Thermal Conductivity:

14-20 W/mK

Thermal Expansion:

8.2-9.2 μm/mK

Weldability:

Good

Yield Strength:

≥200 MPa

Packaging Details:

Spool package with Carton box, Coil package with polybag for pure nickel wire 0.025mm

Supply Ability:

500 tons per month

Highlight:

FeCrAl Electric Heating Wire

0Cr25Al5 Electric Heating Wire

Resistant Heat Wire 0cr25al5

Product Description

DLX High Resistivity & Oxidation FeCrAl 0Cr25Al5 Iron Chromium Aluminium Electric Heating Electric Stove Wire

High Resistivity FeCrAl 0Cr25Al5 Iron Chromium Aluminium Electric Heating Wire 0

Product Description

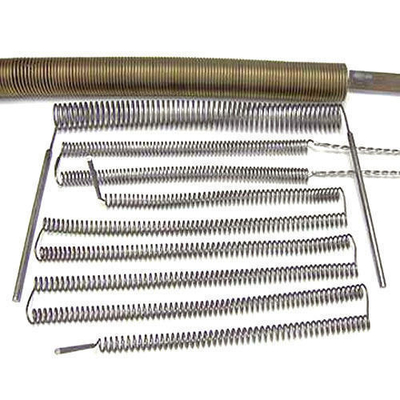

It is often coiled or wound into a heating element, which is then connected to a power source to generate heat. The length of the wire used in the stove depends on the size and design of the heating element. Longer wires may be used for larger stoves or for heating elements that require more power. The wire is carefully insulated to prevent any electrical leakage or short circuits, ensuring safe and efficient operation of the electric stove.

DLX FeCrAl 0Cr25Al5 iron chromium aluminium Electric heating electric stove wire

1. Introduction to products
FeCrAl alloy is a ferritic iron-chromium-aluminium alloy with high resistivity and has superior oxidation resistance for use at temperatures up to 1450 centigrade degree., as compared to other commercial Fe and Ni base alloy.

2. Application
Our Products are widely applied to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.

Alloy Nomenclature Performance		1Cr13AL4	0Cr25Al5	0Cr21AL6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical composition	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(°C)		950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ·m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m·h·ºC)		52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of lines expansion(α×10-6/ºC)		15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)		1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		>16	>12	>12	>12	>12	>12	>10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
continuous service time(Hours/ ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

High Resistivity FeCrAl 0Cr25Al5 Iron Chromium Aluminium Electric Heating Wire 2
