780 MPA 0Cr25Al5 1.4765 Nickel Chromium Iron Alloy

Name: 780 MPA 0Cr25Al5 1.4765 Nickel Chromium Iron Alloy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: 0Cr25Al5
Price: 6.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	0Cr25Al5
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Ferrous Chromium Aluminum

Resistivity:

1.42+/-0.05

Tensile Strength:

630-780MPA

Elongtation:

≥12%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Maximum Temperature:

1250℃

Melting Point:

1500℃

Name:

Resistance Heating Flat Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

780 MPA Nickel Chromium Iron Alloy

0Cr25Al5 Aluchrom O

1.4765 Nickel Chromium Iron Alloy

Product Description

780 MPA 0Cr25Al5 1.4765 Nickel Chromium Iron Alloy 0

780 MPA 0Cr25Al5 1.4765 Nickel Chromium Iron Alloy 1

FeCrAl Series

Iron-Chrome-Aluminum FeCrAl 0Cr25Al5 resistance heating alloy has high maximum service temperature in air up to 1250oC. Longer life permits large surface stress to be applied on the alloy. Lighter weight makes it a more economical resistance heating material than Nichrome. The electric resistivty remains almost constant with varying temperatures. Good yield strength and aging resistance. Outstanding form stability. Greater heat resistance than austenitic stainless steels therefore it is commonly used in the heating applications.

FeCrAl 0Cr25Al5 resistance heating alloy Applications

Infrared heaters, heating plates, irons, ceramic heaters & pots, fan heaters, quartz tube heaters, toasters, ovens, storage heaters, bead insulated coils, open coil components, hot air guns, convection heaters, radiators, industrial furnaces for heat processing, metal sheath tubular elements, suspended coil elements for air heaters

Heanjia Super-Metals manufactures resistance heating elements for the wide range of applications varying from industrial furnaces to domestic appliances.

Industrial Nomenclatures: UNS K92500, 1.4765

Common Name:Aluchrom-O,OhmAlloy142B

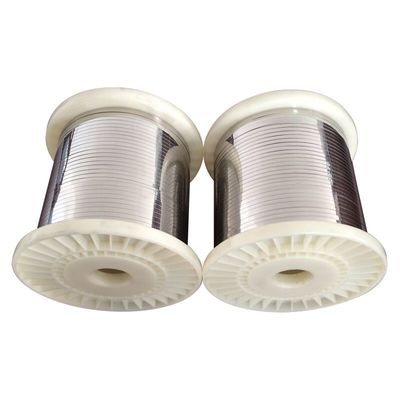

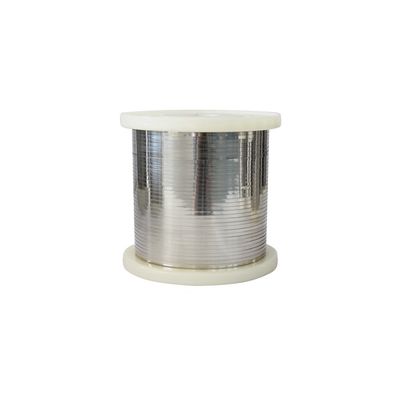

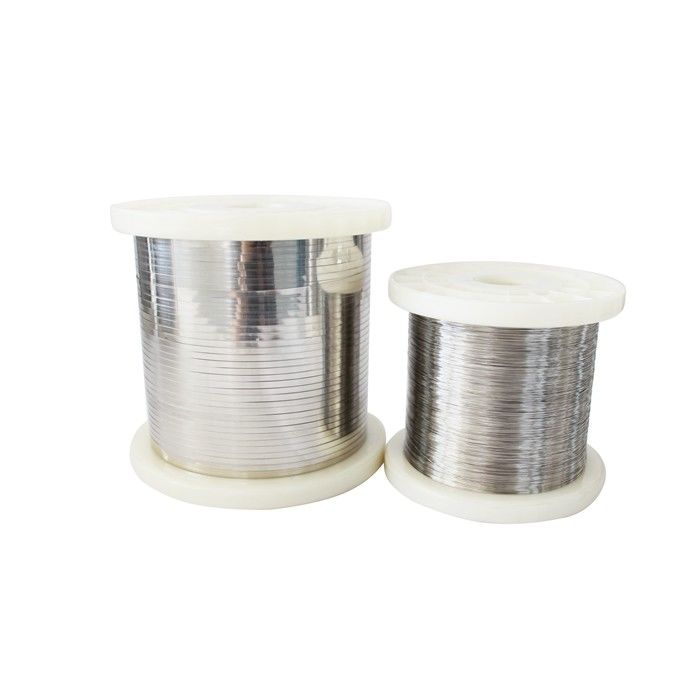

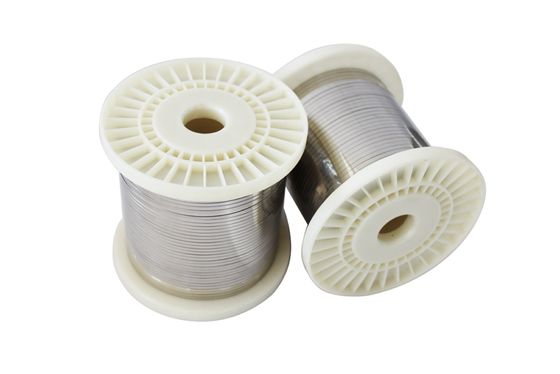

0Cr25Al5 Ferrous Chromium Aluminum FeCrAl resistance heating flat wire.

Ferrous Chromium Aluminum alloy performance tables

Alloy Nomenclature Performance		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical composition	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(°C)		950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ·m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m·h·ºC)		52.7	46.1	63.2	60.2	46.9	46.1
Coefficient of lines expansion(α×10-6/ºC)		15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)		1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		>16	>12	>12	>12	>12	>12	>10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Servicetime(Hours/ ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
