Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: 0Cr21Al6

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Quartz Tube Heaters High Chrome Iron

,

0.03mm High Chromium Cast Iron

,

0Cr21Al6 High Chrome Iron

Material:
Ferrous Chromium Aluminum
Resistivity:
1.42+/-0.05
Tensile Strength:
630-780MPA
Elongtation:
≥12%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Maximum Temperature:
1250℃
Melting Point:
1500℃
Name:
Resistance Heating Flat Wire
Material:
Ferrous Chromium Aluminum
Resistivity:
1.42+/-0.05
Tensile Strength:
630-780MPA
Elongtation:
≥12%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Maximum Temperature:
1250℃
Melting Point:
1500℃
Name:
Resistance Heating Flat Wire
Description
Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron

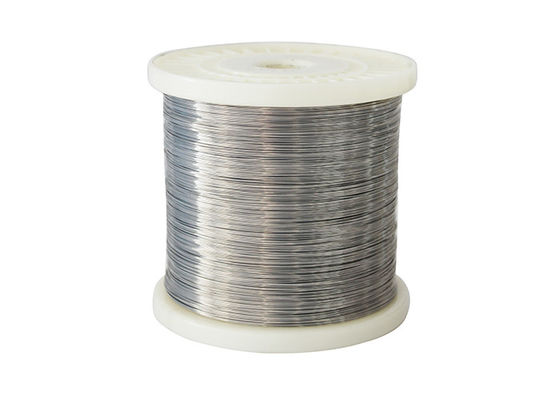

Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 0

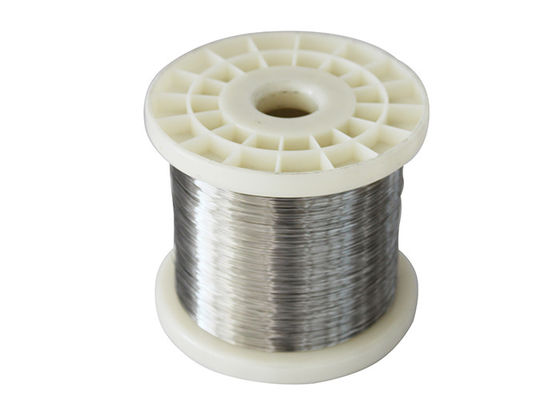

Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 1


  • FeCrAl Series

Iron-Chrome-Aluminum FeCrAl 0Cr21Al6 resistance heating alloy has high maximum service temperature in air up to 1250oC. Longer life permits large surface stress to be applied on the alloy. Lighter weight makes it a more economical resistance heating material than Nichrome. The electric resistivty remains almost constant with varying temperatures. Good yield strength and aging resistance. Outstanding form stability. Greater heat resistance than austenitic stainless steels therefore it is commonly used in the heating applications.

FeCrAl 0Cr21Al6 resistance heating alloy Applications

Infrared heaters, heating plates, irons, ceramic heaters & pots, fan heaters, quartz tube heaters, toasters, ovens, storage heaters, bead insulated coils, open coil components, hot air guns, convection heaters, radiators, industrial furnaces for heat processing, metal sheath tubular elements, suspended coil elements for air heaters

We manufacture resistance heating elements for the wide range of applications varying from industrial furnaces to domestic appliances.



Common Name: OhmAlloy142A

0Cr21Al6 Ferrous Chromium Aluminum FeCrAl resistance heating flat wire, ribbon.














  • Ferrous Chromium Aluminum alloy performance tables
Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Continuous Servicetime(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic


  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm

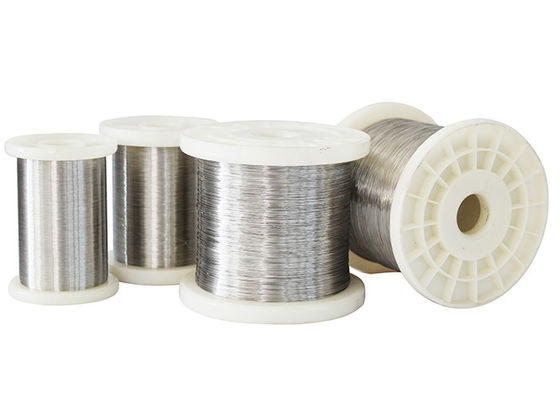

Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 2
dia 8.0-12.0mm

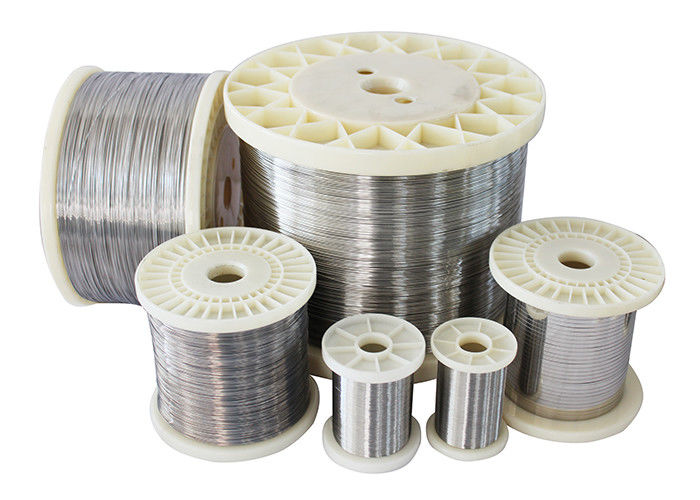

Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 4
Strip
(0.50-2.5)*(5-180)mm
Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 5
Rod
8-50mm

Quartz Tube Heaters 0.03mm 0Cr21Al6 High Chrome Iron 6
