ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip

ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip

ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip

Brand Name: DLX
Model Number: Inconel X-750
MOQ: 5
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Detail Information
Product Description
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,ROHS
Material:
Ni Cr Ti
Nickel(Min):
70%
Magnetic Permeability:
1.0035
Curie Temperature:
-125 °C
Density:
8.28 G/cm3
CTE, Linear 20°C:
12.6 µm/m-°C
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
760-1600MPA
Melting Point:
1390 - 1430℃
Specific Heat Capacity:
0.431 J/g-°C
Thermal Conductivity:
12 W/m-K
Elongation:
30 %
Name:
Inconel X750 Rod
Packaging Details:
Spool package with Carton box, Coil package with polybag
Supply Ability:
500 tons per month
Highlight:

ASTM Hot Rolled Nickel Alloy

,

Nickel Alloy Inconel 600

,

Inconel 800 Strip

Product Description

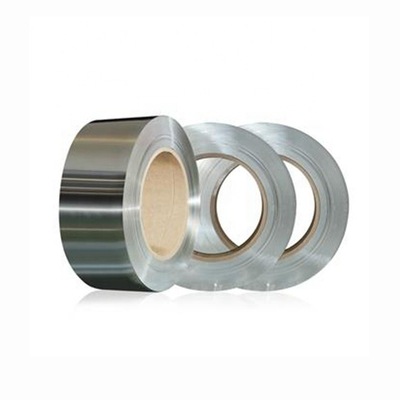

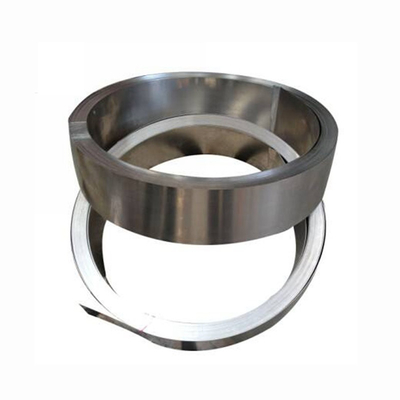

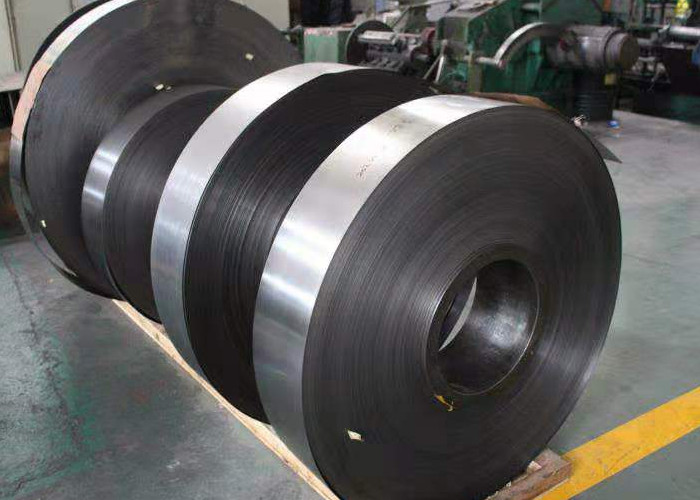

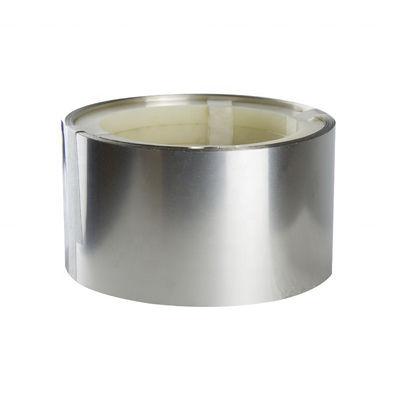

ASTM hot rolled nickel alloy inconel 600 601 625 718 X750 800 strip





ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip 0



  • Inconel Series

Inconel is a family of austenitic nickel-chromium-based super alloys.

Inconel alloys are oxidation-corrosion-resistance materials well suited for service in extreme environments subjected to pressure and heat.When heated,Inconel forms a thick,stable,passivating oxide layer protecting the surface from further attack.Inconel retains strength over a wide temperature range,attractive for high temperature applications where aluminum and steel would succumb to creep as a result of thermally induced crystal vacancies,Inconel's high temperature strength is developed by solid solution strengthening or precipitation hardening,depending on the alloy.


Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Inconel series: 600,601,617,625,690,718,X-750,825





  • Chemical Properties of Inconel X750

Element Ni +Co Cr Nb Ti C Mn Si Cu Al S Iron
Chemical Composition (%)

70% Min

14%-

17%

0.7%-

1.2%

2.25%-

2.75%

 0.08% max 1% max 0.5% max 0.30% max 0.4%-1.0% 0.01% max 5%-9%
  • Application

Some typical applications are:

  • Gas turbines
  • Jet engine parts
  • Nuclear power plant applications
  • Heat-treating fixtures
  • Forming tools and extrusion dies
  • Pressure vessels
  • Aircraft structures





  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5699 wire Inconel X750 Nickel N07750                                          Wire
    AMS 5542 Custom Tube Inconel X750 Nickel N07750 - Custom Tube ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip 1
    AMS 5542 Plate Inconel X750 Nickel N07750 - Plate ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip 2
    AMS 5542 Sheet Inconel X750 Nickel N07750 - Sheet ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip 3
    AMS 5542 Strip Inconel X750 Nickel N07750 - Strip ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip 4
