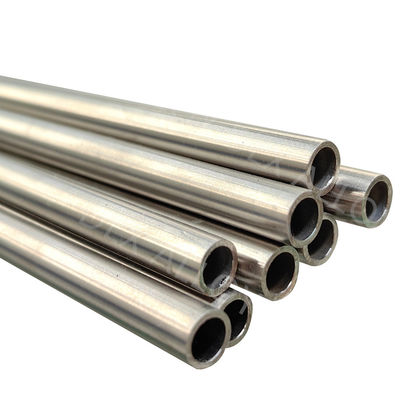

Inconel 718 Tube Extrusion Drawing Techniques For Mechanical Properties

Place of Origin China
Brand Name DLX
Model Number Inconel 718 tube
Minimum Order Quantity 5
Packaging Details Inconel 718 wire packed in Spool Carton box, Coil package with polybag,then in woodencase
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Ni Cr Fe Nickel(Min) 50%
Magnetic Permeability 1.0011 Curie Temperature -112 °C
Density 8.19 CTE, Linear 20°C 13 µm/m-°C
Condition Hard / Soft Sureface Bright,Oxided
Delivery Time 7-50 Days Tensile Strength 760-1600MPA
Melting Point 1260 - 1336℃ Specific Heat Capacity 0.435 J/g-°C
Thermal Conductivity 11.4 W/m-K Elongation 25 %
Product Name Nickel-based Alloy AMS 5596 Inconel 718 Nickel Alloy Plate/Nickel Tube For Aeronautical
Highlight

Inconel 718 Tube

,

Hard Inconel 718 Tube

,

Bright Inconel Alloy Tube

Leave a Message
Product Description

Inconel 718 Tube Extrusion And Drawing Techniques For Improved Mechanical Properties




  • Inconel Series

Our cost-effective Inconel 718 tube manufacturing process allows us to offer reduced lead times, making it easier than ever to get the products you need when you need them. Made from a nickel-chromium alloy, these tubes offer excellent resistance to both corrosion and high-temperature environments. Our manufacturing process is designed to be efficient and effective, allowing us to produce high-quality tubes at a lower cost. We offer a range of sizes and configurations to meet the needs of our customers, and we are committed to providing exceptional customer service and support



Alloy 718 nickel tubing is an age-hardenable nickel-chromium-iron alloy also containing significant amounts of niobium, molybdenum, titanium and aluminum. It combines good corrosion resistance with extremely high strength. Typical applications include heat exchangers and O-rings.



Alloy 718 Tube  has excellent corrosion resistance to many media. This resistance, which is similar to that of other nickel-chromium alloys, is a function of its composition. Nickel contributes to corrosion resistance in many inorganic and organic, other than strongly oxidizing, compounds throughout wide ranges of acidity and alkalinity. It also is useful in combating chloride-ion stress-corrosion cracking. Chromium imparts an ability to withstand attack by oxidizing media and sulfur compounds. Molybdenum is known to contribute to resistance to pitting in many media.






  • Chemical Properties of Inconel 718 Tube

Element Limiting Chemical Composition (%)
Nickel (plus Cobalt) 50%-55%
Chromium 17%-21%
Niobium (plus Tantalum) 4.75%-5.50%
Molybdenum 2.80%-3.30%
Titanium 0.65%-1.15%
Aluminum 0.20%-0.80%
Cobalt 1% max
Carbon 0.08% max
Manganese 0.35% max
Silicon 0.35% max
Phosphorus 0.015% max
Sulfur 0.015% max
Boron 0.006% max
Copper 0.30% max
Iron Balance*






 Inconel 718 Tube Application



Components for liquid fueled rockets, rings, casings and various formed sheet metal parts for aircraft and land-based gas turbine engines, and cryogenic tankage. It is also used for fasteners and instrumentation parts.Oil field applications






  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5590 Inconel 718 Nickel N07718 - Tubing Inconel 718
    AMS 5596 Foil Inconel 718 Nickel N07718 - Foil AMS 5596 Foil
    AMS 5596 Plate Inconel 718 Nickel N07718 - Plate AMS 5596 Plate
    AMS 5596 Sheet Inconel 718 Nickel N07718 - Sheet AMS 5596 Sheet
    AMS 5596 Strip Inconel 718 Nickel N07718 - Strip AMS 5596 Strip
    AMS 5597 Plate Inconel 718 Nickel N07718 - Plate AMS 5597 Plate
    AMS 5597 Sheet Inconel 718 Nickel N07718 - Sheet AMS 5597 Sheet
    AMS 5597 Strip Inconel 718 Nickel N07718 - Strip AMS 5597 Strip
    AMS 5662 Bar Inconel 718 Nickel N07718 - Bar AMS 5662 Bar
    AMS 5662 Custom Tube Inconel 718 Nickel N07718 - Custom Tube AMS 5662 Custom Tube
    AMS 5662 Ring Inconel 718 Nickel N07718 - Ring AMS 5662 Ring
    AMS 5663 Bar Inconel 718 Nickel N07718 - Bar AMS 5663 Bar
    AMS 5663 Custom Tube Inconel 718 Nickel N07718 - Custom Tube AMS 5663 Custom Tube
    AMS 5663 Ring Inconel 718 Nickel N07718 - Ring AMS 5663 Ring
    AMS 5664 Bar Inconel 718 Nickel N07718 - Bar AMS 5664 Bar
    AMS 5664 Custom Tube Inconel 718 Nickel N07718 - Custom Tube AMS 5664 Custom Tube
    AMS 5664 Ring Inconel 718 Nickel N07718 - Ring AMS 5664 Ring
    AMS 5832 Inconel 718 Nickel N07718 - Wire Inconel 718
    AMS 5962 Bar Inconel 718 Nickel N07718 - Bar AMS 5962 Bar
    AMS 5962 Wire Inconel 718 Nickel N07718 - Wire AMS 5962 Wire
  •
