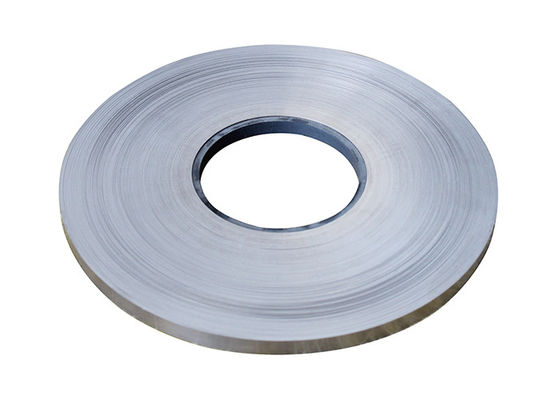

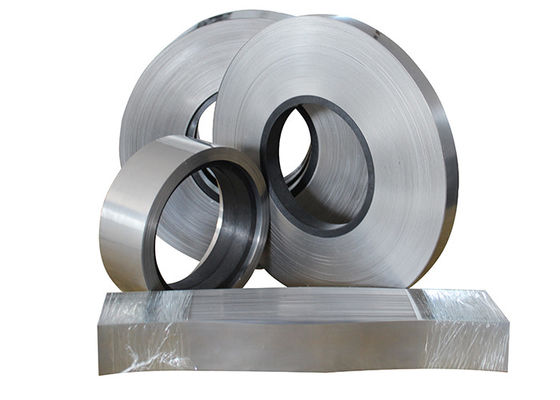

AMS 5542 AMS 5598 0.5mm * 150mm INCONEL Alloy X750 Strip

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Inconel X-750

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

INCONEL Alloy X750 Strip

,

150mm INCONEL Alloy

,

AMS 5598 INCONEL Alloy

Material:
Ni Cr Ti
Nickel(Min):
70%
Magnetic Permeability:
1.0035
Curie Temperature:
-125 °C
Density:
8.28 G/cm3
CTE, Linear 20°C:
12.6 µm/m-°C
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
760-1600MPA
Melting Point:
1390 - 1430℃
Specific Heat Capacity:
0.431 J/g-°C
Thermal Conductivity:
12 W/m-K
Elongation:
30 %
Name:
Inconel X750 Strip
Material:
Ni Cr Ti
Nickel(Min):
70%
Magnetic Permeability:
1.0035
Curie Temperature:
-125 °C
Density:
8.28 G/cm3
CTE, Linear 20°C:
12.6 µm/m-°C
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
760-1600MPA
Melting Point:
1390 - 1430℃
Specific Heat Capacity:
0.431 J/g-°C
Thermal Conductivity:
12 W/m-K
Elongation:
30 %
Name:
Inconel X750 Strip
Description
AMS 5542 AMS 5598 0.5mm * 150mm INCONEL Alloy X750 Strip

AMS 5542 AMS 5598 0.5mm * 150mm INCONEL Alloy X750 Strip




  • Inconel Series

Inconel Alloy X-750, inconel x750 Strip  a nickel chromium alloy made precipitation hardenable by the additions of Titanium and aluminum. This nickel alloy exhibits high creep-rupture strength at elevated temperatures to about 130.0°F (700°C). It also has excellent properties down to cryogenic temperatures. The alloy maintains high strength at high temperature, resists corrosion and has good oxidation resistance at up to 1300°F.

Inconel X-750 alloy strip  is also used in gas turbines, rocket engines, nuclear reactors, pressure vessels, tooling and aircraft structures.






  • Chemical Properties of Inconel X750

Element Ni +Co Cr Nb Ti C Mn Si Cu Al S Iron
Chemical Composition (%)

70% Min

14%-

17%

0.7%-

1.2%

2.25%-

2.75%

0.08% max 1% max 0.5% max 0.30% max 0.4%-1.0% 0.01% max 5%-9%

  • Application

Some typical applications are:

  • Gas turbines
  • Jet engine parts
  • Nuclear power plant applications
  • Heat-treating fixtures
  • Forming tools and extrusion dies
  • Pressure vessels
  • Aircraft structures






  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5699 wire Inconel X750 Nickel N07750                                          Wire
    AMS 5542 Custom Tube Inconel X750 Nickel N07750 - Custom Tube AMS 5542 Custom Tube
    AMS 5542 Plate Inconel X750 Nickel N07750 - Plate AMS 5542 Plate
    AMS 5542 Sheet Inconel X750 Nickel N07750 - Sheet AMS 5542 Sheet
    AMS 5542 Strip Inconel X750 Nickel N07750 - Strip AMS 5542 Strip
