Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil

Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil

Brand Name: DLX
Model Number: Inconel 600 strip
MOQ: 5
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,ROHS
Material:
Nickel Chromium Iron
Nickel(Min):
72%
Specific Heat:
444 J/kg-°C
Permeability At 200 Oersted (15.9 KA/m):
1.010
Density:
8.47 G/cm3
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Range:
1354-1413 ℃
Packaging Details:
Spool package with Carton box, Coil package with polybag for Inconel 600 strip
Supply Ability:
500 tons per month
Highlight:

Inconel Nickel Based Alloy

,

AMS 5540 Alloy600 Strip

,

Inconel Alloy 600 Strip Coil

Product Description



Inconel nickel based alloy ASTM B168 AMS 5540 alloy600 Strip Coil Foil



Inconel 600 strip nickel alloy belt / strip / tape

Inconel 600 is a Nickel-Chromium-Iron alloy with good corrosion resistance, oxidation resistance, and high strength at high temperatures. Inconel 600 as is a Nickel-Chromium-Molybdenum alloy with low Carbon and Niobium addition, has superior resistance to high temperature effects such as oxidation and carburization as well as to a wide range of corrosive environments of unusual severity, especially resistance to pitting and crevice corrosion. Typical applications for inconel is seawater applications, aerospace components, chemical processing equipment, nuclear water reaction components.

Inconel series: 600,601,617,625,690,718,X750,825
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm

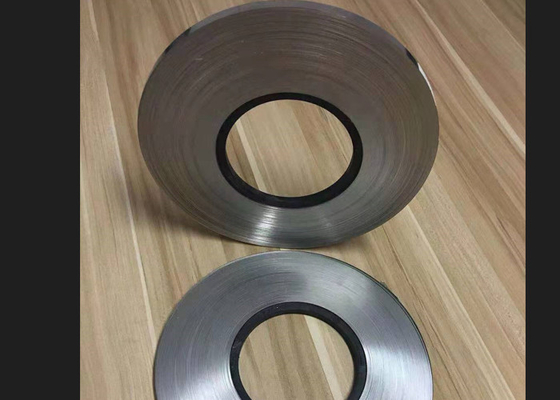

Nickel Base Alloy Inconel 600 strip in coils






  • Chemical Properties of Inconel 600 strip

Element Percent
Nickel (plus Cobalt) (Min) 72
Chromium 14-17
Iron 6-10
Carbon (Max) .15
Manganese (Max) 1
Sulfur (Max) .015
Silicon (Max) .5
Copper (Max) .5




  • Application

Some typical applications are:

  1. Barge and tank truck liners
  2. Carburizing atmospheres
  3. Ethylene dichloride crackers
  4. Furnace trays, mufflers, hangers
  5. Gasoline stabilizer production
  6. MgCl2 evaporates
  7. Phenol condensers
  8. Soap manufacture
  9. Titanium dioxide
  10. Vegetable and fatty acid vessels




  • ,Type we could offer
    AMS Number Alloy Cross Ref. Spec Misc./Shape
    AMS 5540 Inconel 600
    AMS 5540 Plate Inconel 600 - Plate Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 0
    AMS 5540 Sheet Inconel 600 - Sheet Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 1
    AMS 5540 Strip Inconel 600 - Strip Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 2
    AMS 5580 Custom Tube Inconel 600 - Custom Tube Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 3
    AMS 5580 Tubing Inconel 600 - Tubing Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 4
    AMS 5665 Bar Inconel 600 - Bar Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 5
    AMS 5665 Custom Tube Inconel 600 - Custom Tube Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 6
    AMS 5665 Ring Inconel 600 - Ring Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 7
    AMS 5961 Inconel 600 - Wire Inconel Nickel Based Alloy ASTM B168 AMS 5540 Alloy600 Strip Coil Foil 8
