Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: 0Cr23Al5

Payment & Shipping Terms

Minimum Order Quantity: 5

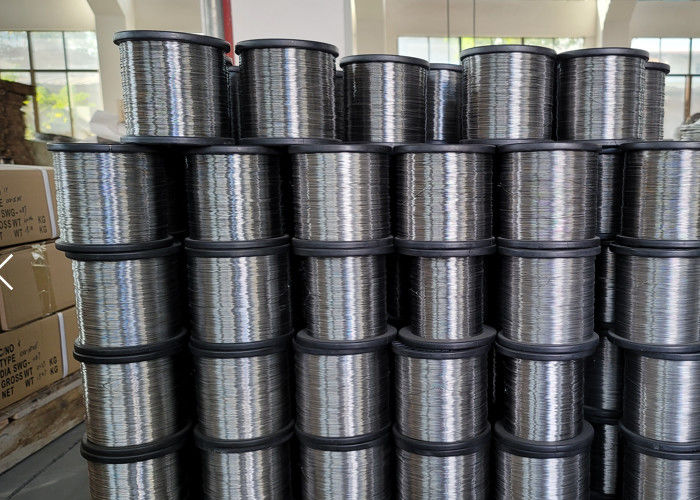

Packaging Details: Spool package with Carton box, Coil package with polybag for 0Cr23Al5

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Awg 38 Gauge Resistance Wire

,

0Cr23Al5 Resistance Wire

,

780MPA Resistance Cable

Material:
Ferrous Chromium Aluminum
Resistivity:
1.35+/-0.05
Tensile Strength:
630-780MPA
Elongtation:
≥12%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Maximum Temperature:
1250℃
Melting Point:
1500℃
Name:
0Cr23Al5
Material:
Ferrous Chromium Aluminum
Resistivity:
1.35+/-0.05
Tensile Strength:
630-780MPA
Elongtation:
≥12%
Application:
Heating, Resistivity
Condition:
Hard / Soft
Sureface:
Bright, Oxided, Acide
Delivery Time:
7-20 Days
Maximum Temperature:
1250℃
Melting Point:
1500℃
Name:
0Cr23Al5
Description
Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable

Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 0



High quality Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance wire 0Cr23Al5 for heat cable


Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 1


  • FeCrAl Series

FeCrAl 0Cr23Al5 alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.




  • Ferrous Chromium Aluminum alloy performance tables
Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Continuous Servicetime(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic


  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm
Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 2
dia 8.0-12.0mm
Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 4
Strip
(0.50-2.5)*(5-180)mm
Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 5
Rod
8-50mm

Awg 22 24 26 28 30 32 34 36 38 Gauge Resistance Wire 0Cr23Al5 For Heat Cable 6
