Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire

Place of Origin China
Brand Name DLX
Model Number 0Cr25Al5
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag for 0Cr25Al5
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 7-20 Days Material Ferrous Chromium Aluminum
Resistivity 1.42+/-0.05 Tensile Strength 630-780MPA
Elongtation ≥12% Application Heating, Resistivity
Condition Hard / Soft Sureface Bright, Oxided, Acide
Maximum Temperature 1250℃ Melting Point 1500℃
Name 0Cr25Al5
Highlight

Electric Heating Wire 0Cr25Al5

,

0Cr25Al5 Heating Wire

,

630MPA Electric Heating Wire

Leave a Message
Product Description

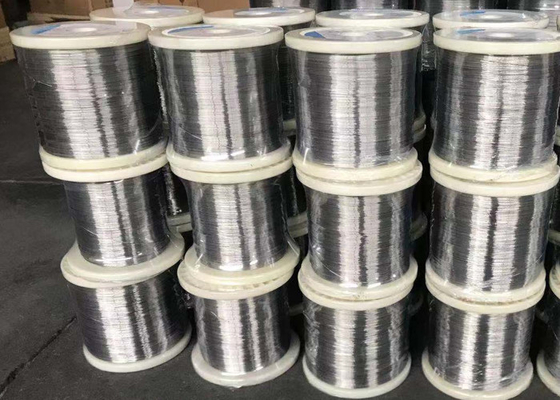

Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 0



China direct factory top quality resistance electric heating wire 0Cr25Al5 high temperature heating wire

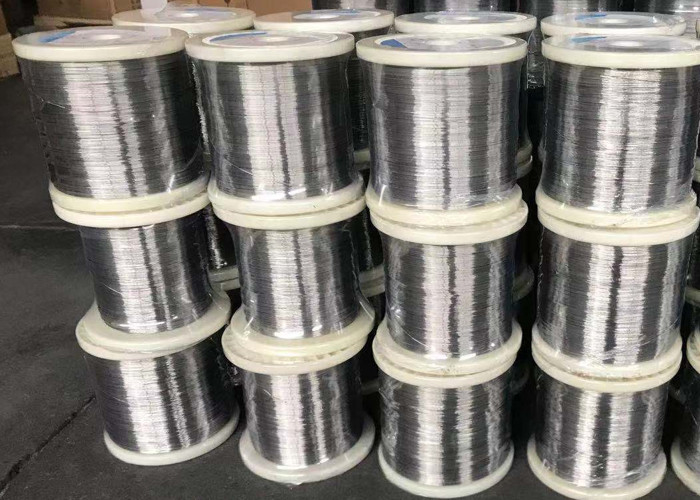

Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 1


  • FeCrAl Series

0Cr25Al5 is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1400°C (2550°F). The alloy is characterized by high resistivity and very good oxidation resistance.

Typical applications for 0Cr25Al5 are electrical heating elements in high-temperature furnaces for heat treatment, ceramics, glass, steel, and electronics industries.








  • Ferrous Chromium Aluminum alloy performance tables
Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Continuous Servicetime(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic


  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm
Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 2
dia 8.0-12.0mm
Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 4
Strip
(0.50-2.5)*(5-180)mm
Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 5
Rod
8-50mm

Resistance Electric Heating Wire 0Cr25Al5 High Temperature Heating Wire 6
