Product Details
Place of Origin: China
Brand Name: DLX
Model Number: incoloy 800H
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: wooden case, woven polybag for incoloy 800 wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Ni Fe Cr |
Nickel(Min): |
30% |
Coefficient Of Expansion: |
14.4 μm/m °C (20 – 100°C) |
Specific Heat: |
460 J/kg•°C |
Density: |
7.94 G/cm3 |
Curie Temperature: |
-115°C |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Delivery Time: |
7-50 Days |
Thermal Conductivity: |
11.5 W/m-K |
Melting Point: |
1385°C |
Elongation: |
30 % |
Material: |
Ni Fe Cr |
Nickel(Min): |
30% |
Coefficient Of Expansion: |
14.4 μm/m °C (20 – 100°C) |
Specific Heat: |
460 J/kg•°C |
Density: |
7.94 G/cm3 |
Curie Temperature: |
-115°C |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Delivery Time: |
7-50 Days |
Thermal Conductivity: |
11.5 W/m-K |
Melting Point: |
1385°C |
Elongation: |
30 % |

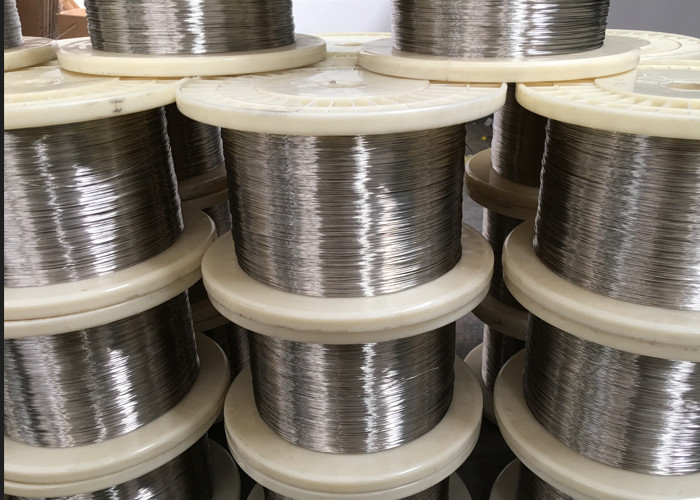

Prime Quality Incoloy 800 / 800H / 800HT Alloy Wire Price Manufacturer
Features: Incoloy 800 wire has a restricted carbon content range of 0.05 to 0.10%, which is in the upper portion of that of Incoloy 800, and is annealed at 1149 to 1177℃ (Incoloy 800 is annealed at 983 to 1038℃). These differences impart it to have higher stress rupture and creep properties than Incoloy 800.
Applications: Chemical and petrochemical process piping, high temperature heat exchangers, furnace components, carburizing equipment, heating-element sheathing, and nuclear power steam superheating tubing.
| Incoloy | Ni | Cr | Fe | C | Mn | S | Si | Cu | Al | Ti |
| 800H | 30.0-35.0 | 19.0-23.0 | 39.5min | 0.10max. | 1.50max. | 0.015max. | 1.0max. | 0.75max. | 0.15-0.60 | 0.15-0.60 |
Some typical applications are:
| AMS Number | Alloy | Type | UNS | Cross Ref. Spec | Misc./Shape | |
|---|---|---|---|---|---|---|
| AMS 5766 Bar | Incoloy 800H | Nickel | N08810 | - | Bar | |
| AMS 5766 Custom Tube | Incoloy 800H | Nickel | N08810 | - | Custom Tube | |
| AMS 5871 Plate | Incoloy 800H | Nickel | N08810 | - | Plate | |
| AMS 5871 Sheet | Incoloy 800H | Nickel | N08810 | - | Sheet | |
| AMS 5871 Strip | Incoloy 800H | Nickel | N08810 | - | Strip | |
