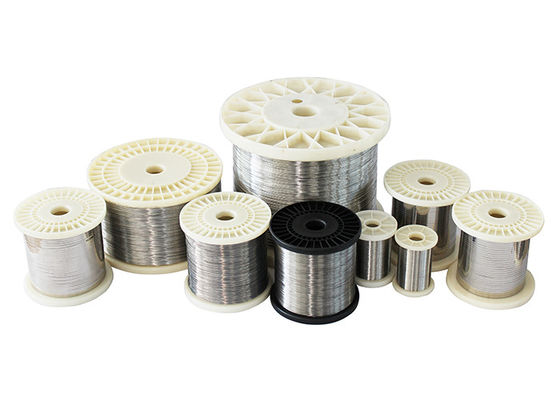

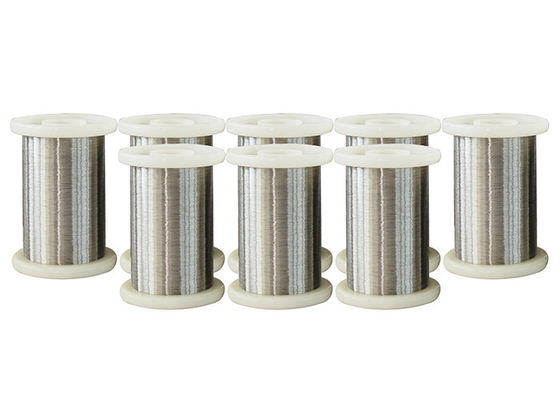

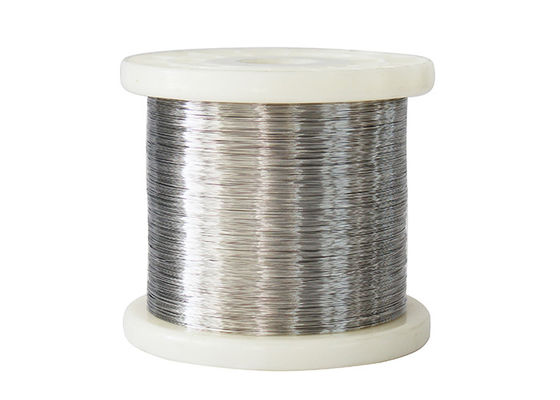

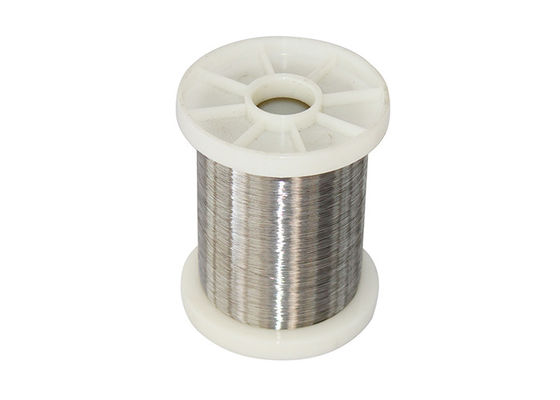

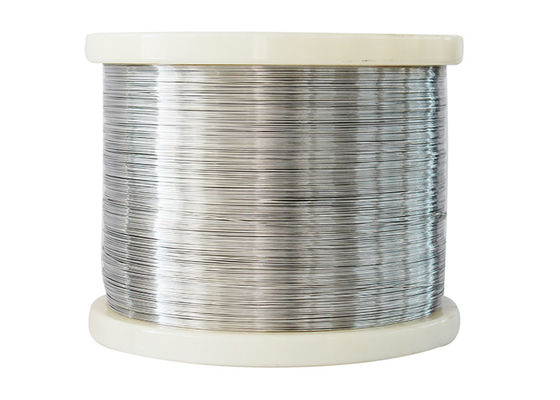

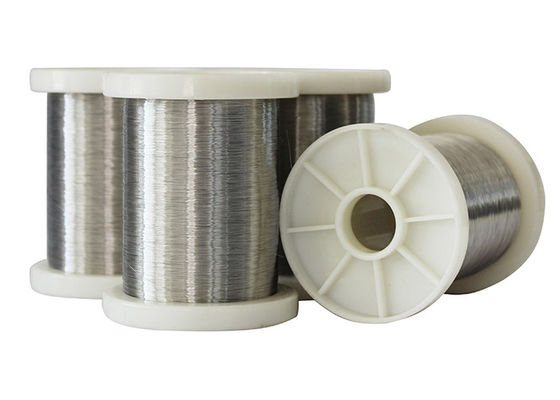

Hard Oxidized 1.4876 UNS N08810 800h Incoloy Alloy

Place of Origin China
Brand Name DLX
Model Number incoloy 800H
Minimum Order Quantity 5
Packaging Details wooden case, woven polybag
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Ni Fe Cr Nickel(Min) 30%
Coefficient Of Expansion 14.4 μm/m °C (20 – 100°C) Specific Heat 460 J/kg•°C
Density 7.94 G/cm3 Curie Temperature -115°C
Condition Hard / Soft Sureface Bright,Oxided
Delivery Time 7-50 Days Thermal Conductivity 11.5 W/m-K
Melting Point 1385°C Elongation 30 %
Highlight

1.4876 Incoloy Alloy

,

UNS N08810 Nickel Chromium Iron Alloy

,

800h Incoloy Alloy

Leave a Message
Product Description

Hard Oxidized 1.4876 UNS N08810 800h Incoloy Alloy 0


Hard Oxidized 1.4876 UNS N08810 800h Incoloy Alloy 1


  • Inconel Series

Common Trade Names: Incoloy 800H, Alloy 800H, Ferrochronin 800H


INCOLOY 800H wire (UNS N08810, W. Nr. 1.4876) is a widely used material for construction of equipment requiring corrosion resistance, heat resistance, strength, and stability for service up to 1500°F (816°C). Alloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength. For applications requiring greater resistance to stress rupture and creep, especially at temperatures above 1500°F (816°C), INCOLOY alloys 800H and 800HT are used.



INCOLOY alloys belong to the category of super austenitic stainless steels. These alloys have nickel-chromium-iron as the base metals, with additives such as molybdenum, copper, nitrogen and silicon. These alloys are known for their excellent strength at elevated temperatures and good corrosion resistance in a variety of corrosive environments.

INCOLOY alloy 800H is an alloy of nickel, iron and chromium. The alloy is capable of remaining stable and maintaining its austenitic structure even after long time exposures to high temperatures. Other characteristics of the alloy are good strength, and high resistance to oxidizing, reducing and aqueous environments. The standard forms in which this alloy is available are round, flats, forging stock, tube, plate, sheet, wire and strip.

This datasheet will look into the chemical composition, properties and applications of INCOLOY 800H.




  • Chemical Properties of Incoloy 800H



Incoloy Ni Cr Fe C Mn S Si Cu Al Ti
800H 30.0-35.0 19.0-23.0 39.5min 0.10max. 1.50max. 0.015max. 1.0max. 0.75max. 0.15-0.60 0.15-0.60





  • Application


Some typical applications are:

  • Heat-treating equipment such as baskets, trays, and fixtures.
  • Chemical and petrochemical processing,
  • Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
  • Nuclear power plants, it is used for steam-generator tubing.
  • Domestic appliances for sheathing of electric heating elements.
  • Production of paper pulp, digester-liquor heaters are often made of alloy 800.
  • Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.






  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5766 Bar Incoloy 800H Nickel N08810 - Bar AMS 5766 Bar
    AMS 5766 Custom Tube Incoloy 800H Nickel N08810 - Custom Tube AMS 5766 Custom Tube
    AMS 5871 Plate Incoloy 800H Nickel N08810 - Plate AMS 5871 Plate
    AMS 5871 Sheet Incoloy 800H Nickel N08810 - Sheet AMS 5871 Sheet
    AMS 5871 Strip Incoloy 800H Nickel N08810 - Strip AMS 5871 Strip
