N08810 Alloy 800h AMS 5871 Iron Chromium Nickel

Name: N08810 Alloy 800h AMS 5871 Iron Chromium Nickel
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: incoloy 800H
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	incoloy 800H
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Ni Fe Cr

Nickel(Min):

30%

Coefficient Of Expansion:

14.4 μm/m °C (20 – 100°C)

Specific Heat:

460 J/kg•°C

Density:

7.94 G/cm3

Curie Temperature:

-115°C

Condition:

Hard / Soft

Sureface:

Bright,Oxided

Delivery Time:

7-50 Days

Thermal Conductivity:

11.5 W/m-K

Melting Point:

1385°C

Elongation:

30 %

Packaging Details:

wooden case or woven polybag

Supply Ability:

300 tons per month

Highlight:

N08810 Iron Chromium Nickel

Alloy 800h Nickel Chromium

AMS 5871 Iron Chromium Nickel

Product Description

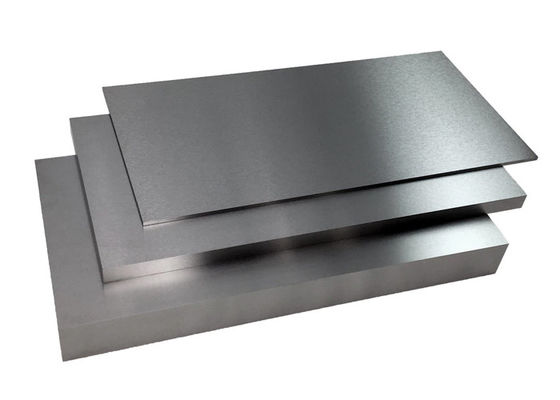

N08810 Alloy 800h AMS 5871 Iron Chromium Nickel 0

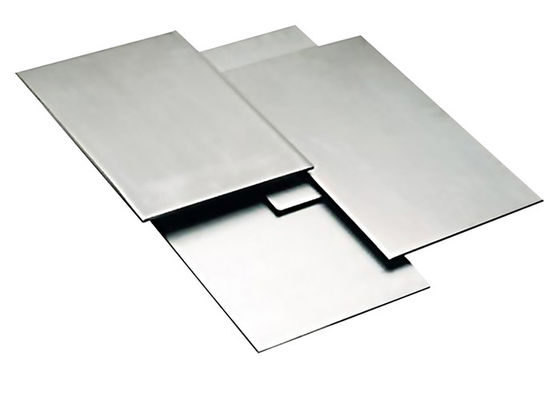

N08810 Alloy 800h AMS 5871 Iron Chromium Nickel 1

Inconel Series

Common Trade Names: Incoloy 800H, Alloy 800H, Ferrochronin 800H, Nickelvac 800H, UNS N08810

INCOLOY 800H sheet (UNS N08810, W. Nr. 1.4876) is a widely used material for construction of equipment requiring corrosion resistance, heat resistance, strength, and stability for service up to 1500°F (816°C). Alloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength. For applications requiring greater resistance to stress rupture and creep, especially at temperatures above 1500°F (816°C), INCOLOY alloys 800H and 800HT are used.

Chemical Properties of Incoloy 800H

Incoloy	Ni	Cr	Fe	C	Mn	S	Si	Cu	Al	Ti
800	30.0-35.0	19.0-23.0	39.5min	0.10max.	1.50max.	0.015max.	1.0max.	0.75max.	0.15-0.60	0.15-0.60

Application

Some typical applications are:

Heat-treating equipment such as baskets, trays, and fixtures.
Chemical and petrochemical processing,
Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
Nuclear power plants, it is used for steam-generator tubing.
Domestic appliances for sheathing of electric heating elements.
Production of paper pulp, digester-liquor heaters are often made of alloy 800.
Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.

,Type we could offer

AMS Number	Alloy	Type	UNS	Cross Ref. Spec	Misc./Shape
AMS 5766 Bar	Incoloy 800H	Nickel	N08810	-	Bar
AMS 5766 Custom Tube	Incoloy 800H	Nickel	N08810	-	Custom Tube
AMS 5871 Plate	Incoloy 800H	Nickel	N08810	-	Plate
AMS 5871 Sheet	Incoloy 800H	Nickel	N08810	-	Sheet
AMS 5871 Strip	Incoloy 800H	Nickel	N08810	-	Strip

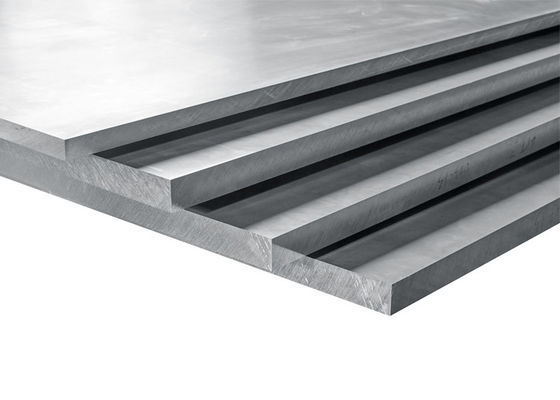

N08810 Alloy 800h AMS 5871 Iron Chromium Nickel 7
