Hot Rolled UNS NO4400 Nickel Based Monel 400 Wire Anti Corrosion
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | Monel 400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag for monel 400 wire |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Nickel Copper | Nickel(Min): | 63% |
|---|---|---|---|
| Curie Temperature: | 21-49℃ | Density: | 8.05g/cm3 |
| Application: | Anti-corrosion | Condition: | Hard / Soft |
| Sureface: | Bright,Oxided | Delivery Time: | 7-50 Days |
| Melting Point: | 1288-1343℃ | Name: | Monel 400 Wire |
| High Light: | Nickel Based Monel 400 Wire,UNS NO4400 Monel Alloy,Oxidized Hot Rolled Monel 400 Wire |
||
Product Description

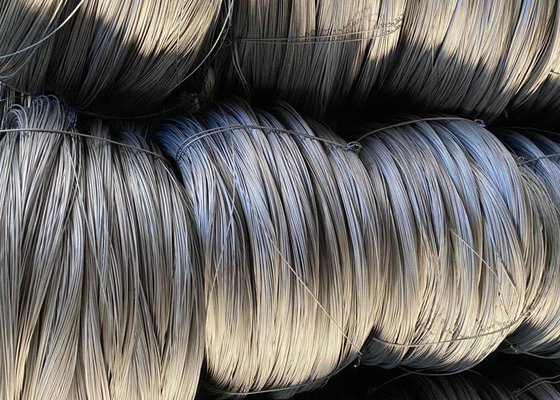

Anti-corrosion hot rolled UNS NO4400 nickel based monel 400 wire
- Monel Series
Monel 400 wire is a group of nickel alloys, primarily composed of nickel and copper, with small amounts of iron, manganese, carbon, and silicon. Monel have a good ability on anti-corrssion, especially can be used in seawater. Also the Monel is easy to be fabricated, it can be hot- and cold-working, machining as well as good welding ability.
DLX can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.
-
Chemical Properties of Monel 400
- Application
. Sour-gas service applications
. Oil and gas production safety lifts and valves
. Oil-well tools and instruments like drill collars
. Oil well industry
. Doctor blades and scrapers
. Chains, cables, springs, valve trim, fasteners for marine service
. Pump shafts and impellers in marine service
- ,Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
