• DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar
DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar

DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Monel K500

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for monel K500
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Nickel Copper Nickel(Min): 63%
Curie Temperature: 21-49℃ Density: 8.05g/cm3
Application: Anti-corrosion Condition: Hard / Soft
Sureface: Bright,Oxided Delivery Time: 7-50 Days
Melting Point: 1288-1343℃ Name: Monel K500 Bar
High Light:

Monel K500 Round Bar

,

Nickel Based Monel K500 Round Bar

,

DIN 2.4375 Nickel Based Monel Alloy

Product Description

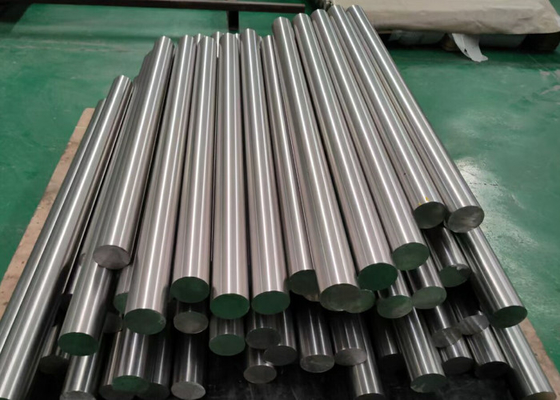

DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar 0



Super Quality Best Selling DIN 2.4375 nickel based alloy Monel K500 Round Bar


DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar 1


  • Monel Series

Monel K500 material is a nickel-copper alloy that combines the excellent corrosion resistance characteristic of Monel 400 with the added advantage of greater strength and hardness. These amplified properties, strength and hardness, are obtained by adding aluminum and titanium to the nickel-copper base and by a thermal processing used to effect precipitation, typically called age hardening or aging. When in the age-hardened condition, Monel K-500 has a greater tendency toward stress-corrosion cracking in some environments than Monel 400. Alloy K-500 has approximately three times the yield strength and double the tensile strength when compared with alloy 400. Plus, it can be further strengthened by cold working prior to precipitation hardening. The strength of this nickel steel alloy is maintained to 1200° F but stays ductile and tough down to temperatures of 400° F. Its melting range is 2400-2460° F.




  • Chemical Properties of Monel K500

Ni Cu Al Ti C Mn Fe S Si

63

Max

27-33 2.3-3.15 0.35-0.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Application

. Sour-gas service applications
. Oil and gas production safety lifts and valves
. Oil-well tools and instruments like drill collars
. Oil well industry
. Doctor blades and scrapers
. Chains, cables, springs, valve trim, fasteners for marine service
. Pump shafts and impellers in marine service




  • ,Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max





    DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar 2DIN 2.4375 Nickel Based Alloy Monel K500 Round Bar 3
