FeCrAl Electric Heating 0Cr25Al5 Resistance Wire

FeCrAl Electric Heating 0Cr25Al5 Resistance Wire

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: 0Cr25Al5

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for 0Cr25Al5 resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Ferrous Chromium Aluminum Resistivity: 1.42+/-0.05
Tensile Strength: 630-780MPA Elongtation: ≥12%
Application: Heating, Resistivity Condition: Hard / Soft
Sureface: Bright, Oxided, Acide Delivery Time: 7-20 Days
Maximum Temperature: 1250℃ Melting Point: 1500℃
Name: 0Cr25Al5 Resistance Wire
High Light:

0Cr25Al5 Resistance Wire

,

FeCrAl Electric Heating Resistance Wire

,

Oxide Surface FeCrAl Alloy

Product Description

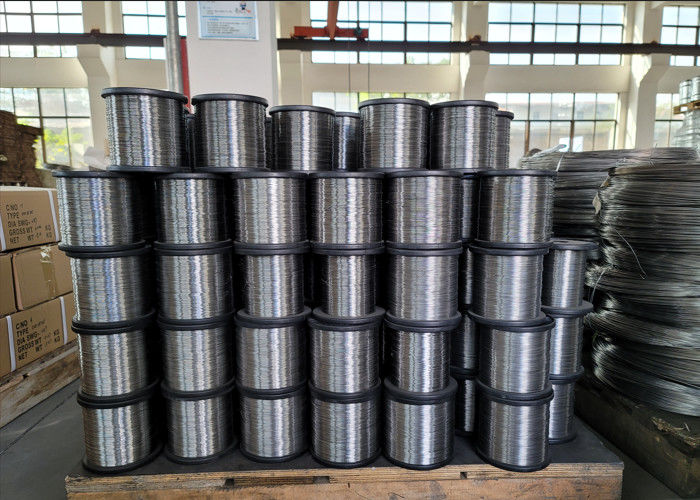

FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 0



High quality hot sale FeCrAl electric heating 0Cr25Al5 resistance wire


FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 1


  • FeCrAl Series

0Cr25Al5 resistance wire is a kind of iron, chromium and aluminum with high resistivity, low resistivity, high working temperature, good oxidation resistance at high temperature, and the highest applicable temperature is up to 1250 degrees. The alloy is mainly used to make ceramic electric cookers, industrial furnaces, and various electric heating elements.



0Cr25Al5 resistance wire intended for prolonged operation at high temperature. Iron Chromium Aluminum alloy wires are used chiefly for heating elements in the electrical industry and wide range of high-temperature oxidation environments, such as industrial electric furnace, heating furnace, nuclear reactor, petroleum refinery and automotive exhaust system, household electrical appliance, electrical oven, electrical heater, infrared settings and far infrared ray device.


0Cr25Al5 resistance wire's ability to withstand oxidation, the wires can be employed under high-temperature conditions, while their good ductility enables them to be processed into wire and strip by hot and cold working.








  • Ferrous Chromium Aluminum alloy performance tables
Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Continuous Servicetime(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic


  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm
FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 2
dia 8.0-12.0mm
FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 4
Strip
(0.50-2.5)*(5-180)mm
FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 5
Rod
8-50mm

FeCrAl Electric Heating 0Cr25Al5 Resistance Wire 6
