Electrical Heating Flat Wire CuNi44 CuNi Alloy Ribbon 420 Degree 0.1*3mm

Name: Electrical Heating Flat Wire CuNi44 CuNi Alloy Ribbon 420 Degree 0.1*3mm
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: CuNi44
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	CuNi44
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel Copper

Nickel(Min):

44%

Resistivity:

0.5

Tensile Strength:

420 MPA

Density:

8.9 G/cm3

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright

Delivery Time:

7-20 Days

Maximum Temperature:

420℃

Melting Point:

1100℃

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

420 Degree CuNi Alloy Ribbon

Heating CuNi Alloy Ribbon

CuNi44 Electrical Heating Flat Wire

Product Description

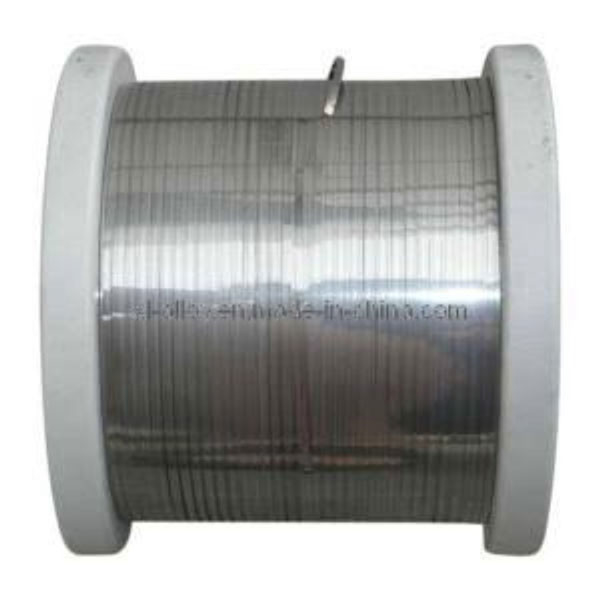

Electrical Heating Flat Wire CuNi44 CuNi Alloy Ribbon 420 Degree 0.1*3mm 0

**0.1*3mm Electrical Heating Flatg Wire 420 Degree CuNi44 CuNi Alloy Ribbon**

CuNi Series

CuNi44 flat wire offers high electrical resistivity and very low temperature coefficient of resistance (TCR). Changzhou DLX alloy offer CuNi44 flat wire. CuNi44 flat wire was founded used in wire-wound precision resistors that can operate up to 400°C (750°F). This alloy is also capable of developing a high and constant electromotive force when coupled with copper. This property allows it to be used for thermocouple, thermocouple extension and compensating leads. It is easily soldered, welded, and offers good corrosion resistance against atmospheric conditions

Copper nickel alloy has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.

Copper Nickel alloy performance tables

Properties/ Material	Resistivity	Max.working temperature	Tensile strength	Melting point	Density	TCR	EMF vs Cu
	( 200C μΩ.m)	( 0C )	( Mpa )	( 0C )	( g/cm3 )	x10-6 / 0C	(μV/ 0C)
						(20~600 0C)	(0~100 0C)
NC003	0.03	200	210	1085	8.9	<100	-8
(CuNi1)
NC005	0.05	200	220	1090	8.9	<120	-12
(CuNi2)
NC010	0.1	220	250	1095	8.9	<60	-18
(CuNi6)
NC012	0.12	250	270	1097	8.9	<57	-22
(CuNi8)
NC015	0.15	250	290	1100	8.9	<50	-25
(CuNi10)
NC020	0.2	300	310	1115	8.9	<30	-28
(CuNi14)
NC025	0.25	300	340	1135	8.9	<25	-32
(CuNi19)
NC030	0.3	300	350	1150	8.9	<16	-34
(CuNi23)
NC035	0.35	350	400	1170	8.9	<10	-37
(CuNi30)
NC040	0.4	350	400	1180	8.9	0	-39
(CuNi34)
NC050	0.5	400	420	1200	8.9	<-6	-43
(CuNi44)

The Form we could offer

Size Range	Wire		Ribbon		Strip		Rod
	dia 0.03-7.5mm	dia 8.0-12.0mm	(0.05-0.35)*(0.5-6.0)mm		(0.50-2.5)*(5-180)mm		8-50mm

Do you provide free samples?

Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.

What is your payment terms?

T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal

We are doing the best to match your demand.

What is the lead time?

Usually sample lead time is 7 days after payment has been confirmed.

Normal order is 10-30days,it depends on customers' quantity.

Anyway,we try to offer good-quality products as soon as possible.
