Monel Alloy K500 Corrosion Resistant Alloys Monel Stainless Steel Tube

Place of Origin China
Brand Name DLX
Model Number Monel K500
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nickel Copper Nickel(Min) 63%
Curie Temperature 21-49℃ Density 8.05g/cm3
Application Anti-corrosion Condition Hard / Soft
Sureface Bright,Oxided Delivery Time 7-50 Days
Melting Point 1288-1343℃ Name Monel K500 Tube
Highlight

Monel Alloy K500

,

Corrosion Resistant Monel Alloy

,

Alloys Monel Stainless Steel Tube

Leave a Message
Product Description

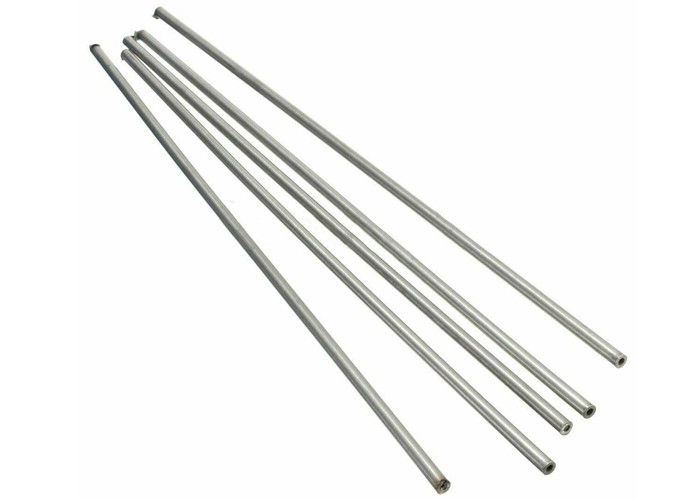

Monel Alloy K500 Corrosion Resistant Alloys Monel Stainless Steel Tube 0

Monel Alloy K500 Corrosion Resistant Alloys Monel Stainless Steel Tube


  • Monel Series

    Monel Alloy K500 Corrosion Resistant Alloys Monel Stainless Steel Tube 1

MONEL alloy K-500 is a nickel-copper alloy which combines the excellent corrosion resistance of MONEL alloy 400 with the added advantages of greater strength and hardness. The increased properties are obtained by adding aluminum and titanium to the nickel-copper base. It is a age hardened alloy, whose basic composition makeup consists of elements like Nickel & Copper. When in the age-hardened condition, Monel K-500 has a greater tendency toward stress-corrosion cracking in some environments than Monel 400. Alloy K-500 has approximately three times the yield strength and double the tensile strength when compared with alloy 400. Plus, it can be further strengthened by cold working prior to precipitation hardening. The strength of this nickel steel alloy is maintained to 1200° F but stays ductile and tough down to temperatures of 400° F. Its melting range is 2400-2460° F.

This nickel alloy is spark resistant and non-magnetic to -200° F. However, it is possible to develop a magnetic layer on the surface of the material during processing. Aluminum and copper may be selectively oxidized during heating, leaving a magnetic nickel rich film on the outside. Pickling orbright dipping in acid can remove this magnetic film and restore the non-magnetic properties.




  • Chemical Properties of Monel K500

Ni Cu Al Ti C Mn Fe S Si

63

Max

27-33 2.3-3.15 0.35-0.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max


  • Application

. Sour-gas service applications
. Oil and gas production safety lifts and valves
. Oil-well tools and instruments like drill collars
. Oil well industry
. Doctor blades and scrapers
. Chains, cables, springs, valve trim, fasteners for marine service
. Pump shafts and impellers in marine service




  • ,Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
