TP TN 0.1mm Copper Type T Thermocouple Extension Wire

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Type T Thermocouple extension wire

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

TP Thermocouple Extension Wire

,

0.1mm Extension Grade Thermocouple Wire

,

Type T Thermocouple Extension Wire

Product Name:
Thermocouple Extension Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
32 To 392F (0 To 200C)
EMF Tolerance:
+/- 1.0C Or +/- .75%
Grade:
Extension Grade TPX/TNX
Positive:
Copper
Negative:
Cu-Ni
Other Name:
Copper-constantan Thermocouple
Special Limits Of Error:
+/- 0.5C Or 0.4%
Product Name:
Thermocouple Extension Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
32 To 392F (0 To 200C)
EMF Tolerance:
+/- 1.0C Or +/- .75%
Grade:
Extension Grade TPX/TNX
Positive:
Copper
Negative:
Cu-Ni
Other Name:
Copper-constantan Thermocouple
Special Limits Of Error:
+/- 0.5C Or 0.4%
Description
TP TN 0.1mm Copper Type T Thermocouple Extension Wire

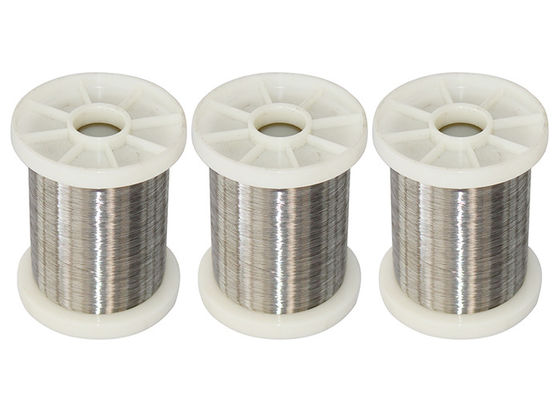

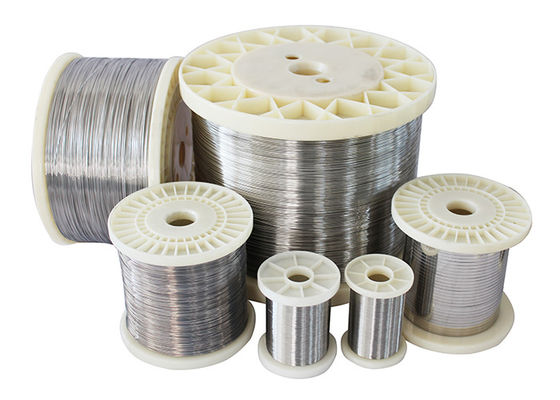

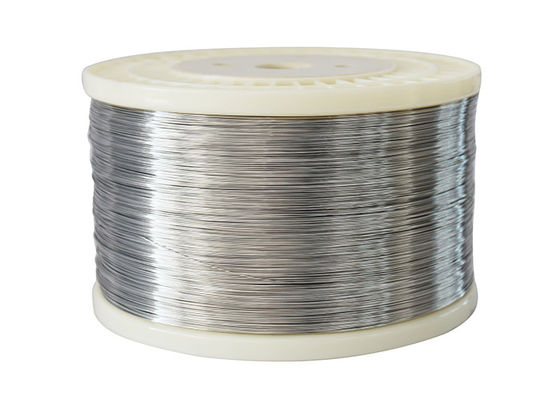

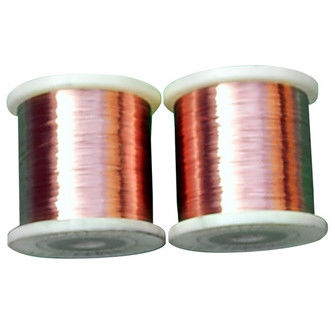

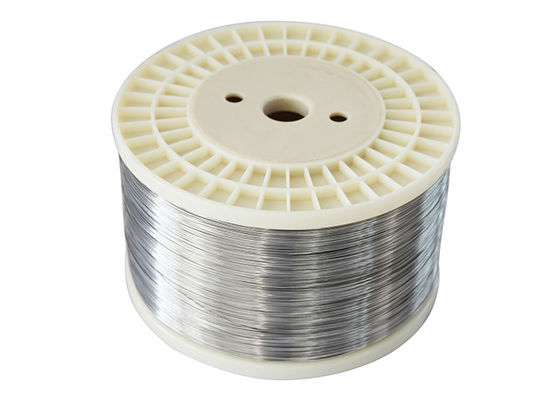

TP TN 0.1mm Copper Type T Thermocouple Extension Wire 0





  • Thermocouple Extension Wire

Type T Thermocouple extension wire (TP--Copper, TN--Cu-Ni):

Cu-CuNi thermocouple extension (type T) is also named Cu-Constantan thermocouple. It is a very stable thermocouple and is often used in extremely low temperature applications such as cryogenics or ultra low freezers. It is found in other laboratory environments as well. The type T has excellent repeatability between –380F to 392F (–200C to 200C).

Our plant mainly manufacture type KX, NX, EX, JX, NC, TX, SC/RC, KCA, KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.




  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044



Detailed Parameter of thermocouple wire

Thermocouple No. indexing Compensation wire type Usag Classification Measuring junction temperature / ℃ standard EMF value/μV Precision grade General grade
Tolerance μV Thermal EMF range μV Tolerance μV Thermal EMF range μV
SorR SC or RC G 100 646 ±30 616~676 ±60 586~706
H 100 646 - - ±60 586~706
200 1 1441 - - 1.381~1 501

K KX,KCA G -25 -968 ±40 -924~-1 012 ±80 -880~-1 056
or KCB 100 4 096 4 052~4 140 4 008~4 184
  H -25 -968 ±40 -924~-1 012 ±88 -880~-1 056
100 4 096 4 052~4 140 4 008~4 184
200 8 138 8 094~8 182 8 050~8 226
N NX or NC G -25 -646 ±43 -603~-689 ±86 -560~-732
100 2 774 2 731~2 817 2 688~2 860
H -25 -646 ±43 -603~-690 ±86 -560~-732
100 2 774 2 731~2 817 2 688~2 860
200 5 913 5 870~5 956 5 827~5 999
E EX G -25 -1 432 ±81 -1 351~-1 513 ±138 -1 294~-1 570
100 6 319 6 238~ 6400 6 181~6 457
H -25 -1 432 ±81 -1 351~- 1513 ±138 -1 294~-1 570
100 6 319 6 238~6 400 6 181~6 457
200 13 421 13 340~13 502 13 283~13 559
J JX G -25 -1 239 ±62 -1 177~-1 301 ±123 -1 116~-1 362
100 5 269 5 207~5 331 5 146~5 392
H -25 -1 239 ±62 - 177~-1 301 ±123 -1 116~-1 362
100 5 269 5 207~5 331 5 146~5 392
200 10 779 10 717~10 841 10 656~10 902
T TX G -25 -940 ±30 -910~-970 ±60 -850~-1 000
100 4 279 4 249~4 309 4 189~4 339
H -25 -940 ±48 -892~-988 ±90 -850~-1 030
100 4 279 4231~4 327 4 189~4 369
200





Size range



Wire: 0.10 to 8.0 mm.



  • Type T Temperature Range:
  • Thermocouple grade wire, -454 to 700F (-270 to 370C)
  • Extension wire, 32 to 392F (0 to 200C)

  • Type T Accuracy (whichever is greater):
  • Standard: +/- 1.0C or +/- .75%
  • Special Limits of Error: +/- 0.5C or 0.4%



Type T Thermocouple Grade Wire
