• ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire
  • ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire
  • ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire
  • ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire
ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire

ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: ErNiCr-3

Payment & Shipping Terms:

Minimum Order Quantity: 15

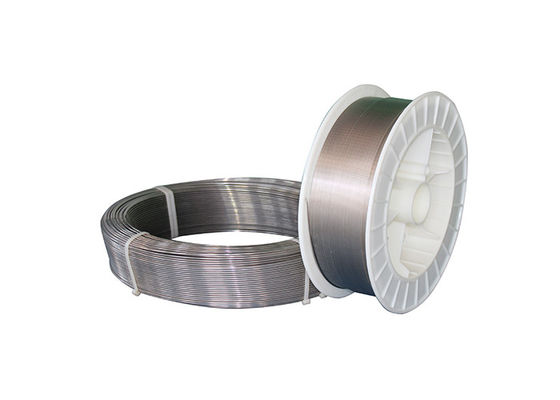

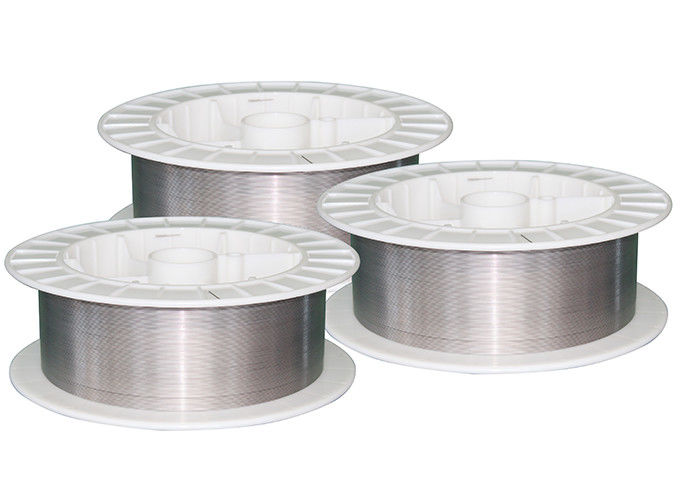

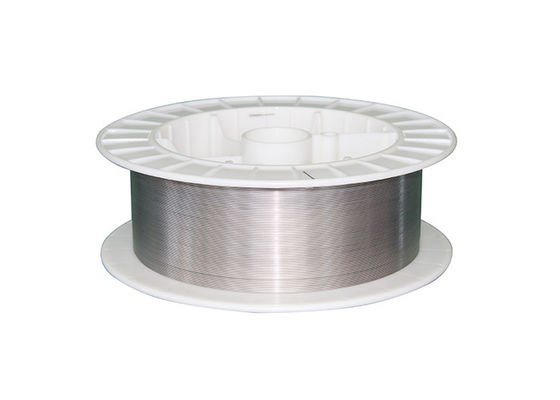

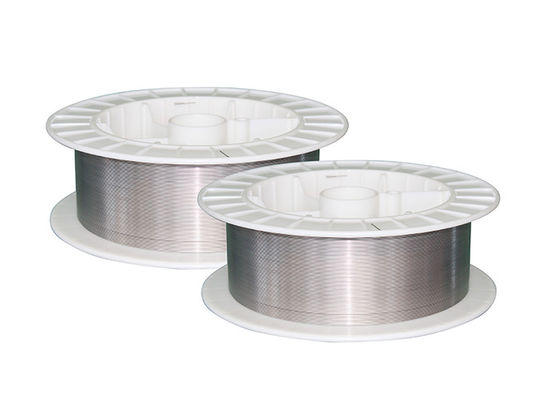

Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Nickel Elongation: ≥22 %
Density: 8.20 G/cm3 Tensile Strength Rm N/mm²: ≥600
Yieldstrength R P0. 2 N/mm²: ≥360 Melting Point: 1320-1370℃
Certificates: AWS A5.14/A5.14M:2009
High Light:

ASME SFA A5.14 Nickel Welding Wire

,

ErNiCr 3 Nickel Chromium Iron Alloy

,

3.2mm Mig Nickel Welding Wire

Product Description

ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire 0


ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire 1


  • Nickel Based Welding Wire

ERNiCr-3 has a nominal composition (wt.-%) of 72 Ni, 20 Cr, 3 Mn, 2.5 Nb + Ta. Filler metal of this classification is used for welding nickel-chromium-iron alloys (ASTM B 163, B 166, B 167, and B 168 having UNS Number N06600) to itself and for the clad side of joints in steel clad with nickel-chromium-iron alloy. It can also be used for surfacing steel with nickelchromium-iron weld metal, for dissimilar welding of nickel-base alloys, and for joining steel to stainless steel or nickel-base alloys using GTAW, GMAW, SAW, and PAW processes. ERNiCr-3 provides high strength and good corrosion resistance, resists oxidation, and delivers creep-rupture strength at elevated temperatures. It is ideal for welding in desalination plants because it is formulated to resist pitting corrosion and stress-corrosion cracking in chloride containing environments. ERNiCr-3 is also well suited for welding in a variety of temperatures – from cryogenic to elevated – in such applications as piping, furnace equipment, and petrochemical and power generation plants.


Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip




  • Chemical Properties of ErNiCr-3

  • Chemical   C Mn Fe P S Si Ti Ni Cu Cr Nb+Ta other
    Composition Wt.% standard value
    0.10
    2.5~
    3.5

    3.0

    0.03

    0.015

    0.5

    0.75

    67

    0.5
    18~
    22
    2~
    3

    0.5






Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip

Nickel Welding Wire    Nickel Welding Wire    Nickel Welding Wire   Nickel Welding Wire


  • Size we could offer



MIG (15kg/spool), Size
    0.8 1.2 2.4 3.2mm
TIG (5kg/box),Strip





ASME SFA A5.14 ErNiCr 3 3.2mm Mig Nickel Welding Wire 2
