Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: Hastelloy C22

Payment & Shipping Terms

Minimum Order Quantity: 5

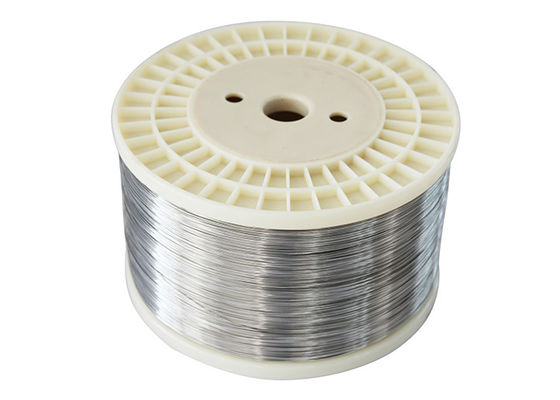

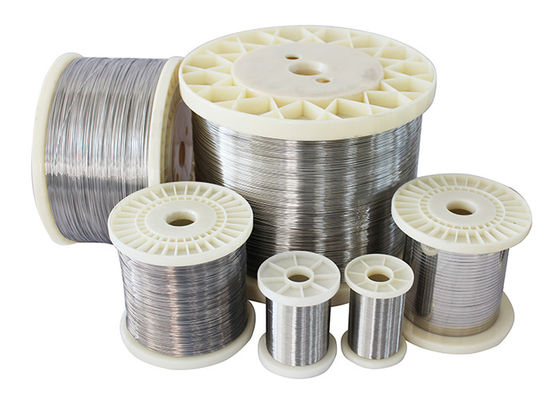

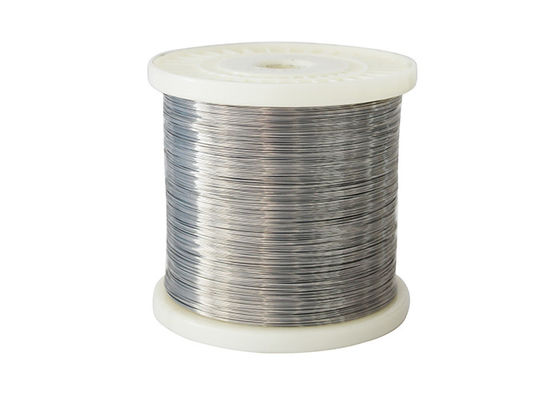

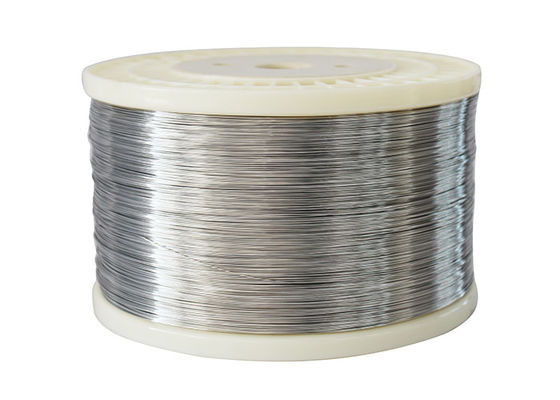

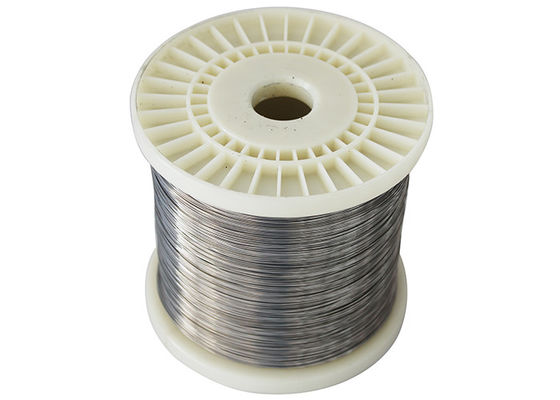

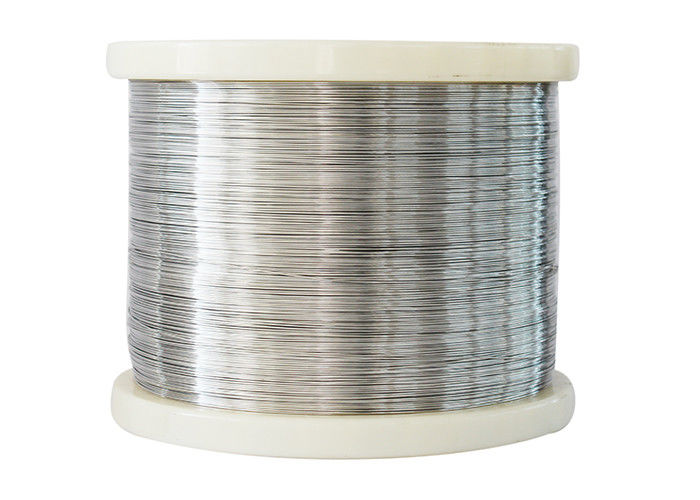

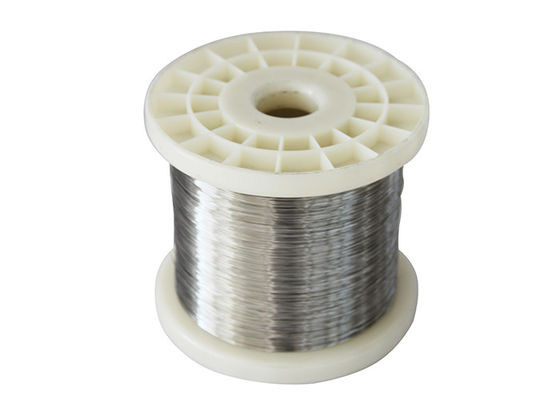

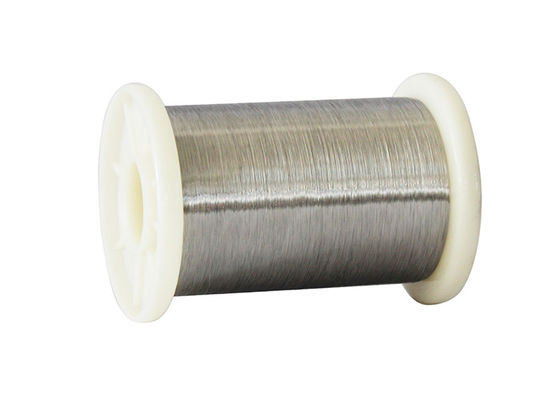

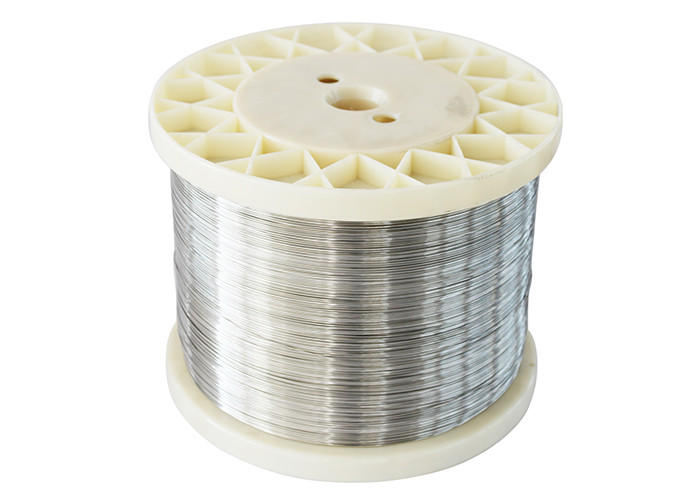

Packaging Details: Hastelloy C22 wire packed in spool,in coil,then in carton,in woodencase

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Hastelloy C22 Chromium Molybdenum

,

UNS N06022 Chromium Molybdenum Alloy

,

ASTM B574 Chromium Molybdenum

Material:
Ni Cr Mo
Elongation:
30 %
Brinell Hardness HB:
≤220
Density:
8.89 G/cm3
Tensile Strength Rm N/mm²:
760MPA
Yieldstrength R P0. 2 N/mm²:
345MPA
Electrical Resistivity(24℃)):
1.30 Microhm-m
Thermal Conductivity(32℃):
9.4 W/m-K
Model Number:
Bright Soft Hastelloy C-22 C22 Hastelloy C22 Hastelloy C-22 Wire N06022 Special Alloy C22 Wire
Material:
Ni Cr Mo
Elongation:
30 %
Brinell Hardness HB:
≤220
Density:
8.89 G/cm3
Tensile Strength Rm N/mm²:
760MPA
Yieldstrength R P0. 2 N/mm²:
345MPA
Electrical Resistivity(24℃)):
1.30 Microhm-m
Thermal Conductivity(32℃):
9.4 W/m-K
Model Number:
Bright Soft Hastelloy C-22 C22 Hastelloy C22 Hastelloy C-22 Wire N06022 Special Alloy C22 Wire
Description
Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum

Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 0


Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 1


  • Nickel Based corrosion resistance Alloy

HASTELLOY C22 Wire UNS N06022) was the first wrought, nickel-chromium-molybdenum material to alleviate concerns over welding (by virtue of extremely low carbon and silicon contents). As such, it was widely accepted in the chemical process and associated industries, and now has a more than 50-year-old track record of proven performance in a vast number of corrosive chemicals.

Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides. Furthermore, it is very resistant to sulfide stress cracking and stress corrosion cracking in sour, oilfield environments








  • Chemical Properties of Hastelloy C22

Hastelloy Alloy Ni Cr Co Mo FE W Mn C V P S Si
C276 Balance 20.5-22.5 2.5 Max 12.5-14.5 2.0-6.0 2.5-3.5 1.0 Max 0.015 Max 0.35 Max 0.04 Max 0.02 Max 0.08 Max








  • Application


Some typical applications are:

  • Strong oxidizers (such as ferric and cupric chlorides)
  • Hot contaminated media (organic and inorganic)
  • Chlorine
  • Formic and acetic acids
  • Acetic anhydride
  • Seawater and brine solutions






  • Type we could offer
ASTM Alloy Type UNS Misc./Shape
ASTM B574
Bar
Hastelloy C22 Nickel N10276 Bar Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 2
ASTM B575
Plate
Hastelloy C22 Nickel N10276 Plate Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 3
ASTM B575
Strip
Hastelloy C22 Nickel N10276 Strip Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 4
ASTM B575
Sheet
Hastelloy C22 Nickel N10276 Sheet Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 5
ASTM B619
Welded Pipe
Hastelloy C22 Nickel N10276 Welded Pipe Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 6
ASTM B622
Seamless Tubing
Hastelloy C22 Nickel N10276 Seamless Tubing Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 7 Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 8
ASTM B366
Fittings
Hastelloy C22 Nickel N10276 Fittings Hastelloy C22 UNS N06022 ASTM B574 Chromium Molybdenum 9
ASTM B574
Wire
Hastelloy C22 Nickel N10276 Wire
