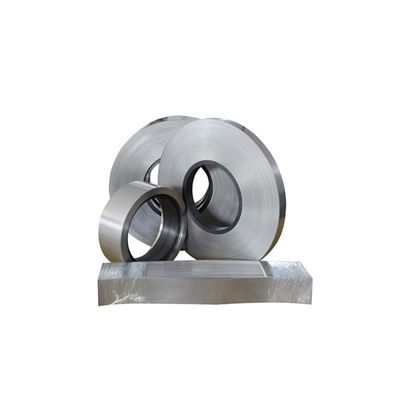

580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy

580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: 1Cr13Al4

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Material: Ferrous Chromium Aluminum Resistivity: 1.25+/-0.05
Tensile Strength: 580-680MPA Elongtation: ≥12%
Application: Heating, Resistivity Condition: Hard / Soft
Sureface: Bright, Oxided, Acide Delivery Time: 7-20 Days
Maximum Temperature: 950℃ Melting Point: 1450℃
Name: Resistance Heating Strip
High Light:

580 MPA FeCrAl Alloy

,

1Cr13Al4 Iron Chromium Nickel

,

180mm FeCrAl Alloy

Product Description

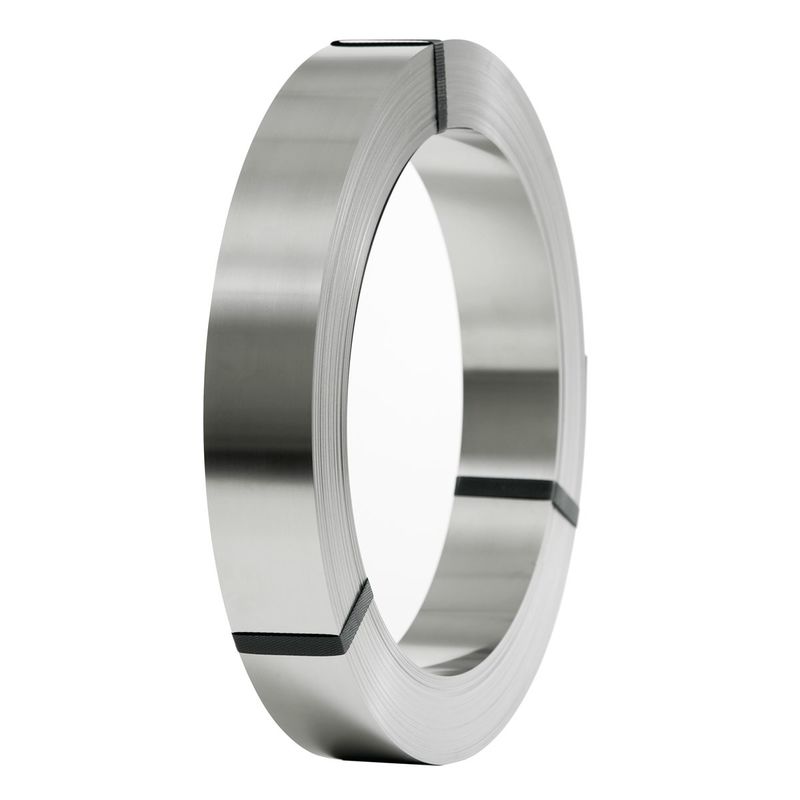

580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 0

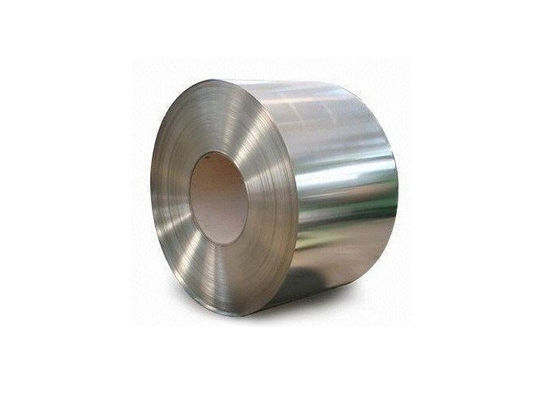

580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 1


  • FeCrAl Series

1Cr13Al4 is one kind of normal material of Fe-Cr-Al alloy.
FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.



Common Name:

Alkrothal 14,Alloy 750,Ohmalloy 40,Alferon 902,Alchrome 750,Resistohm 125,Aluchrom W,750 Alloy,Stablohm 750

1Cr13Al4  resistance heating Strip.








  • Ferrous Chromium Aluminum alloy performance tables
Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Continuous Servicetime(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic



Magnetic



  • The Form we could offer
Size Range

Wire
dia 0.03-7.5mm

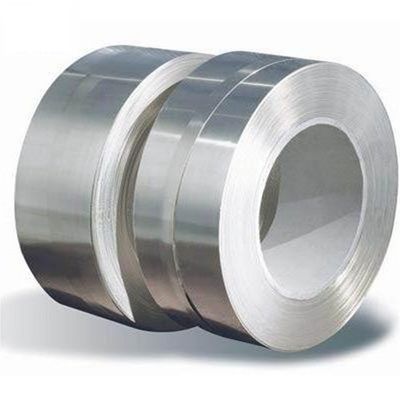

580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 2
dia 8.0-12.0mm
580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 3
Ribbon
(0.05-0.35)*(0.5-6.0)mm
580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 4
Strip
(0.50-2.5)*(5-180)mm
580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 5
Rod
8-50mm

580 MPA Bright 1Cr13Al4 2.5mmx180mm FeCrAl Alloy 6
