Oxidized 0Cr21Al6Nb Magnetic 0.03mm 630 MPA FeCrAl Alloy

Name: Oxidized 0Cr21Al6Nb Magnetic 0.03mm 630 MPA FeCrAl Alloy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: 0Cr21Al6Nb
Price: 6.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	0Cr21Al6Nb
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Ferrous Chromium Aluminum

Resistivity:

1.45+/-0.05

Tensile Strength:

630-780MPA

Elongtation:

≥12%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Maximum Temperature:

1350℃

Melting Point:

1510℃

Name:

Resistance Heating Flat Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

0Cr21Al6Nb FeCrAl Alloy

0.03mm Resistohm 145

630 MPA FeCrAl Alloy

Product Description

Oxidized 0Cr21Al6Nb Magnetic 0.03mm 630 MPA FeCrAl Alloy 0

Oxidized 0Cr21Al6Nb Magnetic 0.03mm 630 MPA FeCrAl Alloy 1

FeCrAl Series

0Cr21Al6Nb is an iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1350°C (2550°F). The alloy with the characteristics of high resistivity, low temperature coefficient of electric resistance, high operating temperature, good oxidation resistance under high temperature. It can equal to A1, Alloy875, Resistohm 145, Aluchrom0, Alchrome875, MWS-875, Stablohm875.

It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.

Common Name: A,Alloy 835,OhmAlloy145

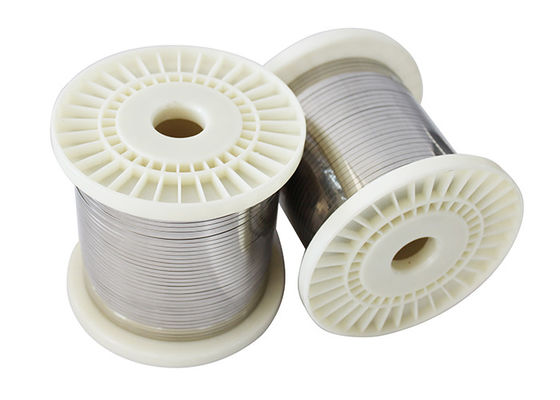

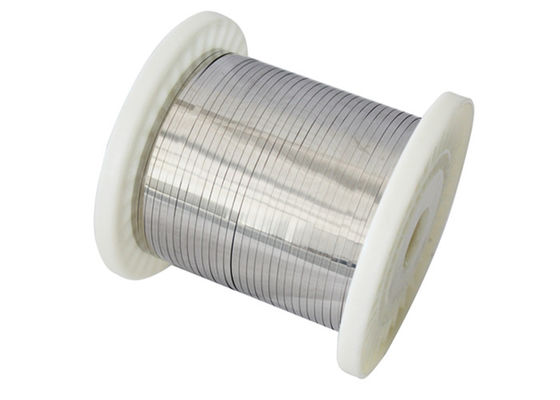

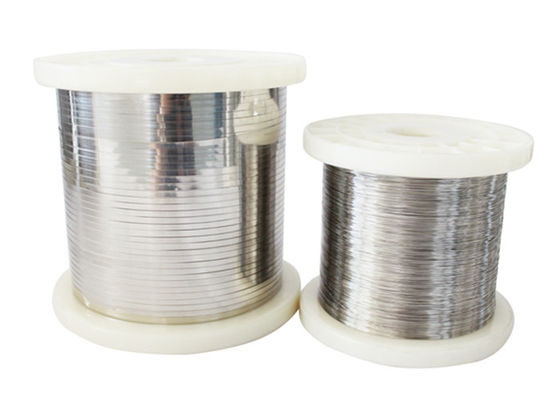

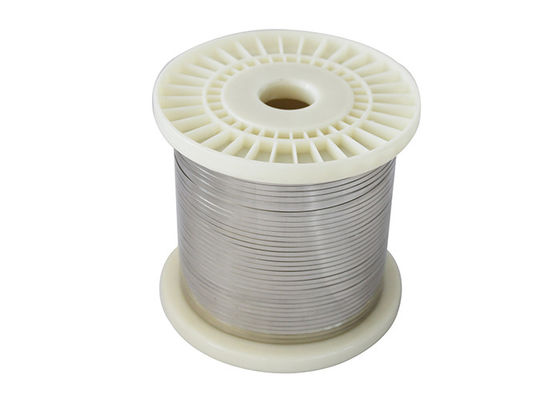

0Cr21Al6Nb flat wire, ribbon.

Ferrous Chromium Aluminum alloy performance tables

Alloy Nomenclature Performance		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical composition	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(°C)		950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ·m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m·h·ºC)		52.7	46.1	63.2	60.2	46.9	46.1
Coefficient of lines expansion(α×10-6/ºC)		15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)		1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		>16	>12	>12	>12	>12	>12	>10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Servicetime(Hours/ ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
