UNS N04400 Monel Metal Alloy

Place of Origin China
Brand Name DLX
Model Number Monel 400
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nickel Copper Nickel(Min) 63%
Curie Temperature 21-49℃ Density 8.8g/cm3
Application Anti-corrosion Condition Hard / Soft
Sureface Bright,Oxided Delivery Time 7-50 Days
Melting Point .1300-1350℃ Name Monel 400 Plate
Highlight

UNS N04400 Monel Metal Alloy

,

400 Monel Nickel

,

Anti Corrosion Monel Metal Alloy

Leave a Message
Product Description

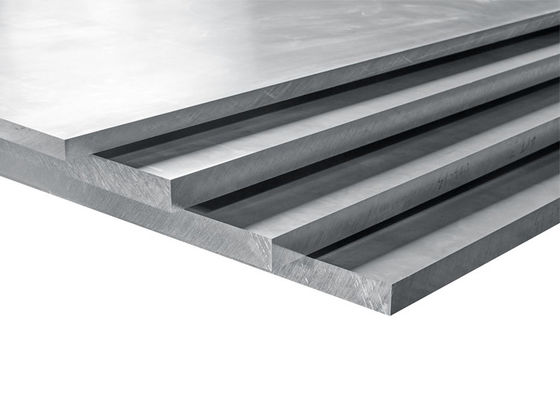

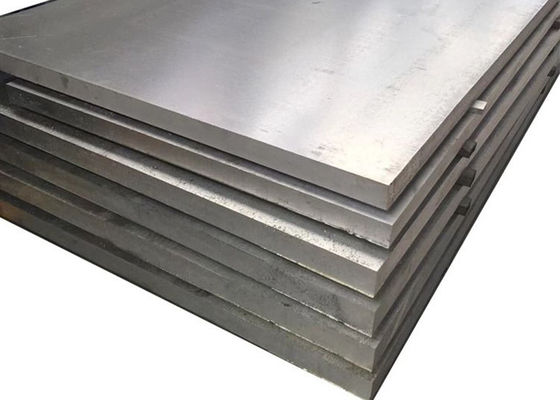

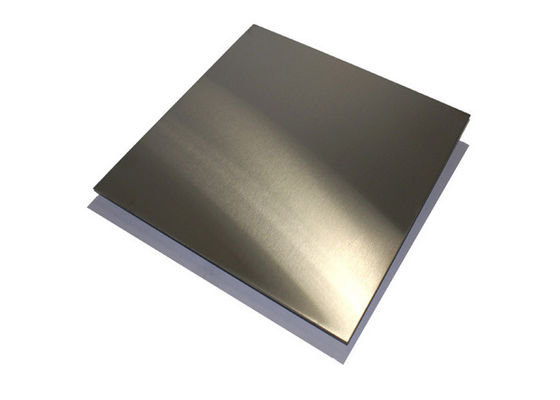

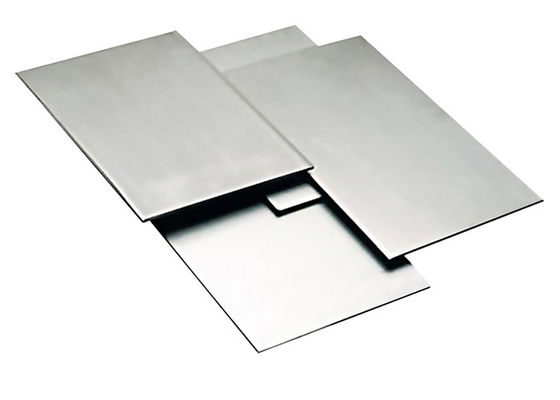

UNS N04400 Monel Metal Alloy 0


UNS N04400 Monel Metal Alloy 1


  • Monel Series

Alloy 400 Plate is a single phase, solid-solution nickel-copper alloy that offers superior resistance to many corrosive environments over temperatures ranging from sub-zero to 800°F. This alloy is only hardenable through cold working, rather than heat treatment. The Curie Temperature of this alloy lies in the ambient temperature range and is affected by variations in the alloy’s chemical composition. Caution is advised in applications where strong nonmagnetic characteristics are desired. The ratio of copper to nickel in alloy 400 is almost identical to that found in the ore the metal is derived from. This alloy was first patented over 100 years ago, and it continues to be one of the most commonly used corrosion resistant alloys commercially produced.






  • Chemical Properties of Monel 400

C Mn S Si Ni Cu Fe
.30 max 2.00 max .024 max .50 max 63.0 min 28.0-34.0 2.50 max

  • Application

Alloy 400 has been widely used in a variety of industries, and has been particularly useful in the marine industry and chemical processing industry. Typical applications include pumps and valves, propeller shafts, marine fixtures and fasteners, electronic components, springs, chemical processing equipment, fresh and salt water tanks, process vessels and piping, boiler feedwater heaters and other heat exchangers.




  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 4544 Plate Monel 400 Nickel Copper N04400 QQ-N-281 Plate AMS 4544 Plate
    AMS 4544 Sheet Monel 400 Nickel Copper N04400 QQ-N-281 Sheet AMS 4544 Sheet
    AMS 4544 Strip Monel 400 Nickel Copper N04400 QQ-N-281 Strip AMS 4544 Strip
    AMS 4574 Monel 400 Nickel Copper N04400 - Tubing Monel 400
    AMS 4675 Bar Monel 400 Nickel Copper N04400 ASTM B 164 Bar AMS 4675 Bar
    AMS 4730 Monel 400 Nickel Copper N04400 QQ-N-281 Wire Monel 400
    AMS 4731 Ribbon Monel 400 Nickel Copper N04400 - Ribbon
    AMS 4731 Wire Monel 400 Nickel Copper N04400 - Wire AMS 4731 Wire
